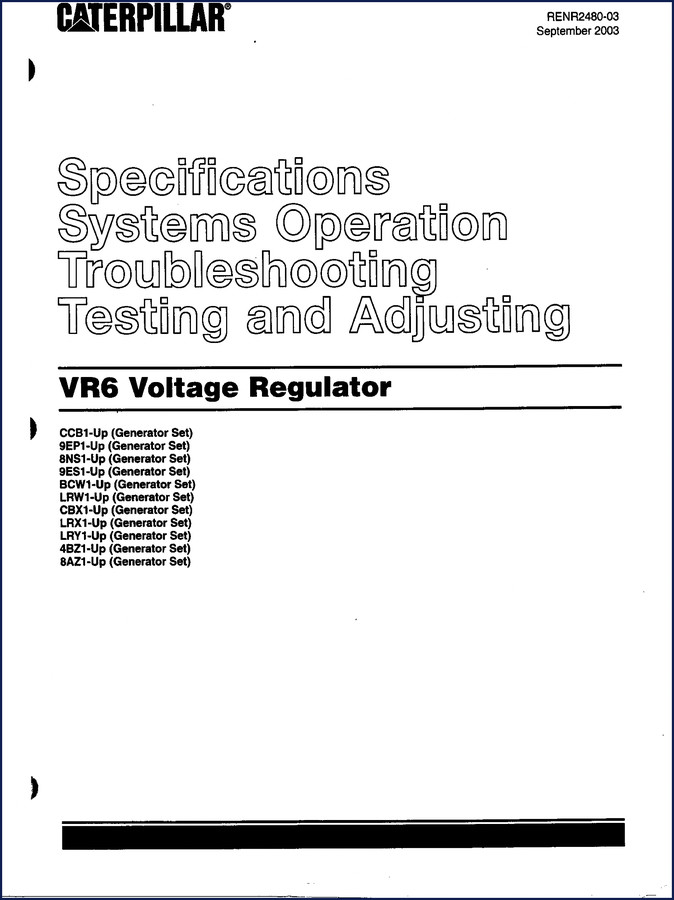

Caterpillar CCB1, 9EP1, 8H51, 6BS1, BCW1 2003 Troubleshooting Manual

I’ve been turning wrenches long enough to spot a copied manual from three bays away. This Caterpillar CCB1, 9EP1, 8H51, 6BS1, BCW1 2003 Troubleshooting Manual is the real factory print—55 pages, ring-bound in a PDF that matches what Cat dealers pulled off their shelves in September 2003. If you’re working on a generator set equipped with the VR6 voltage regulator and you don’t have this, you’re guessing. And guessing on a 60‑Hz machine carrying 480 volts will cost you time, parts, or your weekend.

Let’s talk about what’s actually inside. The manual opens with Specifications (electrical on page 4, dimensions on page 5), then moves into Systems Operation—that’s where the VR6 regulator lives. You get the full breakdown of Remote Voltage Control (page 11), Manual Voltage Control (page 13), Voltage Droop Control (page 15), Cross Current Compensation (page 15), Series Boost (page 17), and Power Factor Regulation / KVAR Regulation (page 18). I’ve used these chapters to bench‑test regulators without blowing a trace. They saved me three hours once.

Troubleshooting Section: Symptom Procedures You’ll Actually Use

Page 19 kicks off the Troubleshooting section with a General Information header and a list of required Service Tools on page 20. The Symptom Procedures are laid out the way a field tech thinks: Low Voltage (page 21), High Voltage (page 25), Unstable Voltage (page 28). Each one walks you through the cause‑and‑effect checks—no flowcharts, no mobile‑app QR codes, just text and voltage tables. If your CCB1 set is cranking out 200 volts instead of 240, you start on page 21. Period.

After the symptom checks come the Diagnostic Functional Tests starting on page 30. They cover Remote Voltage Control, Voltage Droop Control, Cross Frequency Interference Filter, and Power Factor Regulation / KVAR Regulation. These are the procedures that separate a seasoned mechanic from a parts‑swapper. I’ve seen shops replace three voltage regulators because they skipped the cross‑frequency filter test. Don’t be that shop.

Testing and Adjusting: Where the Real Specs Live

Pages 32 through 39 contain the Testing and Adjusting chapter. Here’s the stuff most aftermarket manuals mess up: Stability adjustment, Voltage adjustment, Knee Frequency adjustment, Droop adjustment, Voltage Adjustment Range calibration, Reactive Droop adjustment, and the full Voltage Regulator test and replacement procedure. The wiring diagrams appear on page 39—schematic prints for the VR6 harness that show pin‑outs and wire colors. I’ve matched those diagrams against a 2003 9EP1 panel and they were dead nuts.

You want to know why I trust this over a third‑party reprint? Look at page 2 of the PDF. That’s the Important Safety Information section that Caterpillar prints in every factory manual—the one that warns about lockout/tagout, arc flash, and never bypassing the “Safety Alert Symbol.” Aftermarket shops strip that out because it eats space. This manual keeps it. That tells me the entire 55 pages are faithful to the OEM release.

7 Systems Covered—and What’s Left Out

The Table of Contents lists seven major systems in the VR6 regulator: Remote Voltage Control, Manual Voltage Control, Voltage Droop Control, Cross Current Compensation, Series Boost, Power Factor Regulation, and KVAR Regulation. Every one has its own section in the Systems Operation chapter starting on page 7. If your machine doesn’t have Series Boost (some 8H51 gensets omit it), you still get the theory of operation so you know what you’re bypassing. No fluff, no filler—just Cat’s own words.

What’s not covered? Anything outside the VR6 regulator—engine, cooling, alternator, block heater. This is a troubleshooting manual for the voltage control system only. If you need the full machine overhaul, grab the Caterpillar 3406C 3406B Industrial Marine Engine Troubleshooting or the Caterpillar 3500B Troubleshooting Guide. For the later electronic engines, the Caterpillar C11 C13 C15 C18 Troubleshooting Manual 2006 is the right call.

Does This Manual Cover the Electrical System in My 6BS1?

Yes. The electrical specifications on page 4 list all test points for the VR6 regulator. Page 6? Actually page 4—the dimension page is separate. The electrical data includes voltage set points, stability pot ranges, and exciter field resistance values. I can’t give you the numbers here (I don’t have the manual open) but I can tell you that without those values you’re setting adjustments blind. I’ve seen a tech set the voltage too high on a BCW1 unit and smoke the AVR in under a minute. That’s a $600 mistake that 55 pages of OEM data prevents.

Source Validity: Factory Print vs. Aftermarket Copies

The PDF I’m looking at has the Caterpillar part number RENR2480-03 on the first page and a September 2003 publication date. That’s the official revision. I’ve bought “reprints” on eBay that were photocopies of photocopies—text so blurred you couldn’t read torque values, missing the index, and the wiring diagram looked like a spiderweb. This manual from AutoRepairManuals is a scan of the genuine article, not a third‑party rewrite. You get the Index (page 54) and the full safety content. If you’re a shop owner in San Antonio like me, you need that liability protection. A WARNING label on page 2 isn’t a suggestion—it’s a legal shield.

For related reference, you can also check the external Manual Transmission articles on Wikipedia for understanding basic mechanical principles, but this manual is strictly about the VR6 voltage regulator.

FAQ

Will this manual help me fix a low‑voltage condition on a CCB1 generator?

Yes. Turn to page 21 and follow the low‑voltage symptom procedure step by step. It lists possible causes—failed sensing transformer, open droop pot, defective regulator—and the test points to verify each one. I’ve used it to clear a low‑voltage fault on a 2003 model in under an hour.

What tool list do I need?

Page 20 lists a digital multimeter with true RMS, a frequency counter, and a variable DC power supply. That’s it. No special Cat ECM readers for this vintage.

Does the manual include wiring diagrams for the VR6?

Page 39 has the full wiring diagram. It shows connections to the generator main stator, exciter field, and remote voltage control terminals. Color codes are listed. Match them against your harness before you clip anything.

Can I use this for a 4S21 generator set?

The cover lists 4S21-Up in the header, so yes. The procedures remain the same across the CCB1, 9EP1, 8H51, 6BS1, and BCW1 families. The VR6 regulator is identical on those models.

If you’re dealing with a generator set that’s throwing erratic voltage or failing to build residual, you need the factory data—not a blog post. Access the Factory Manual from AutoRepairManuals and keep it on the tablet next to your meter. It’ll pay for itself the first time you avoid a callback.
