Caterpillar C7 Industrial Engine 2005 Parts Catalog – What’s Actually Inside

If you’ve ever ordered a gasket set for a C7 and got the wrong camshaft thrust washer, you know the pain. I’ve been turning wrenches since before most of you were born, and I can tell you: guessing part numbers costs time and money. This 520-page Caterpillar C7 Industrial Engine 2005 Parts Catalog is the actual factory piece Caterpillar printed in 2005 – not a reprint, not a third-party hack job. You get exploded views with real part numbers, not some aftermarket interpretation. That matters when the job is on the clock.

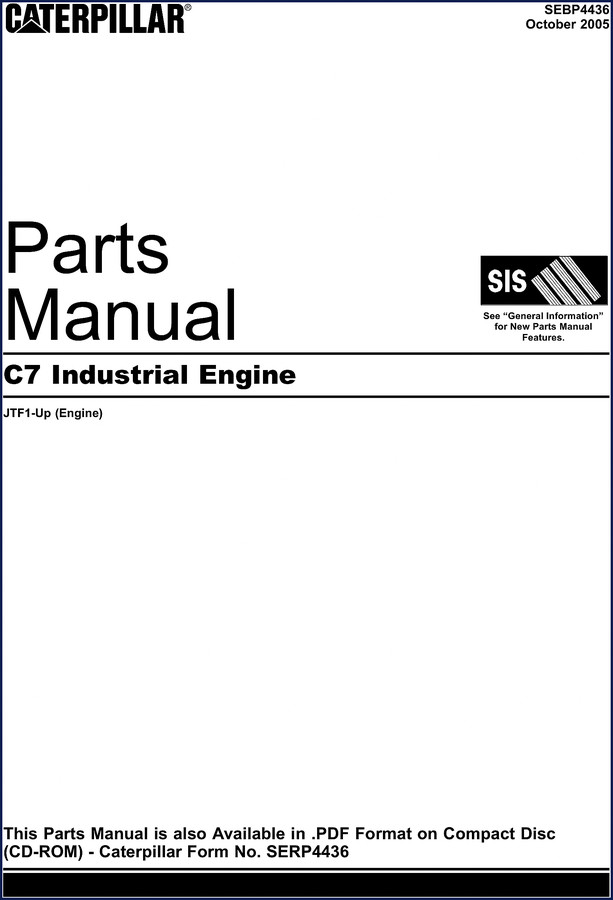

I’ve seen too many DIY guys use online parts diagrams from sketchy sites that show a six-bolt flange when the C7 uses eight. This manual comes straight from the OEM source. The table of contents alone runs fourteen sections covering everything from the engine arrangement down to service equipment. Page 1 of the PDF shows the official Caterpillar form number SERP4436 and the October 2005 publication date. If you need to order a new fuel injector or a water pump, you pull the part number from this catalog, not from memory.

Camshaft GP – Finding the Right Part Number

The BASIC ENGINE section lists the CAMSHAFT GP separately. That’s the group you go to when the engine is apart and you need a replacement cam. The manual gives you the exact part number for the camshaft group, plus all the associated fasteners. You won’t see generic “fits many models” nonsense. Every number traces back to a Caterpillar drawing. If you’re rebuilding a Cylinder head, you’ll need the cylinder head assembly page under CYLINDER HEAD AS. That subsection breaks down the head, valves, springs, and seals. No ambiguity.

7 Systems Covered in This Parts Catalog

Each major system gets its own chapter: LUBRICATION SYSTEM, COOLING SYSTEM, AIR INLET AND EXHAUST SYSTEM, FUEL SYSTEM, ELECTRICAL AND STARTING SYSTEM, OPERATOR STATION, ENCLOSURES AND BASES. The LUBRICATION SYSTEM chapter includes the oil pump group, filter, lines, and the all-important breather. If you’ve ever had a C7 slobber oil out the breather, you’ll want to inspect the BREATHER GP part number in there. COOLING SYSTEM covers the water pump, fan groups, and oil cooler. The AIR INLET chapter includes the turbocharger group and manifold parts.

Source Authenticity: Why OEM Beats Aftermarket

This is a factory digital reproduction of the printed Parts Manual. Caterpillar doesn’t license their stuff to third-party aggregators. What you get here is the same file that dealers pull up on their terminals. Compare that to a PDF scanned by some guy in a basement – missing pages, wrong resolution, no searchable bookmarks. This 520-page file has full bookmarks and an INDEX section in five languages: English, French, Spanish, Portuguese, and German. If you work in a multilingual shop, that alone saves cross-referencing headaches. For more context on why factory docs matter in the Automotive Industry Overview, the big players only certify original data.

Does This Manual Cover the Fuel System Fully?

Yes. The FUEL SYSTEM chapter includes the fuel injection pump group, unit injector hydraulic pump, fuel filter group, water separator, and all the lines. If your C7 has a hesitation under load and you suspect the fuel cooler, the cooler group part number is in there. The INJECTOR GP – FUEL subsection gives you the injector assembly part number. You won’t find “universal” injectors here. Every number is specific to the C7 Industrial Engine JTF1-Up serial number prefix. That’s the same engine used in many construction and industrial applications.

Indexes in Four Languages – Real-World Utility

After the system chapters, the catalog includes a PART NUMBER INDEX. That’s a massive alphabetical list of every part number in the book with the page you need. If you’ve got a bin with a stray part, you can look it up. The manual also includes indexes in French, Spanish, Portuguese, and German. I’ve worked with crews where three languages were spoken on the same job – having the part names in their language cuts down on pointing and guessing. Automotive Industry Overview doesn’t usually discuss multi-language documentation, but in a real shop it’s gold.

Related Manuals You Might Need

• Caterpillar C15 2006 Parts Catalog – Factory OEM 884 Pages
• Caterpillar Elevated Sprocket Tractors Parts Catalog – 971 Pages
• Caterpillar Undercarriage Parts Catalog – 866 Pages OEM

Is this the same manual that dealers use?

Yes. This is the official Caterpillar Parts Manual, form number SERP4436, dated October 2005. It is identical to what a dealer would sell you on CD-ROM.

Will this help me rebuild a C7 engine from scratch?

This is a parts catalog, not a service manual. You get exploded diagrams and part numbers for every component – camshaft, cylinder head, oil pump, turbo, etc. To rebuild the engine you also need the Service Manual which has torque specs and procedures. There is overlap; the parts catalog shows you exactly which fastener goes where, but you will want the service manual for assembly steps.

I’ve wasted enough hours chasing wrong parts from aftermarket suppliers. This manual cuts that out. If you’re working on a C7, get the right numbers. Access the Factory Manual before you order anything.
