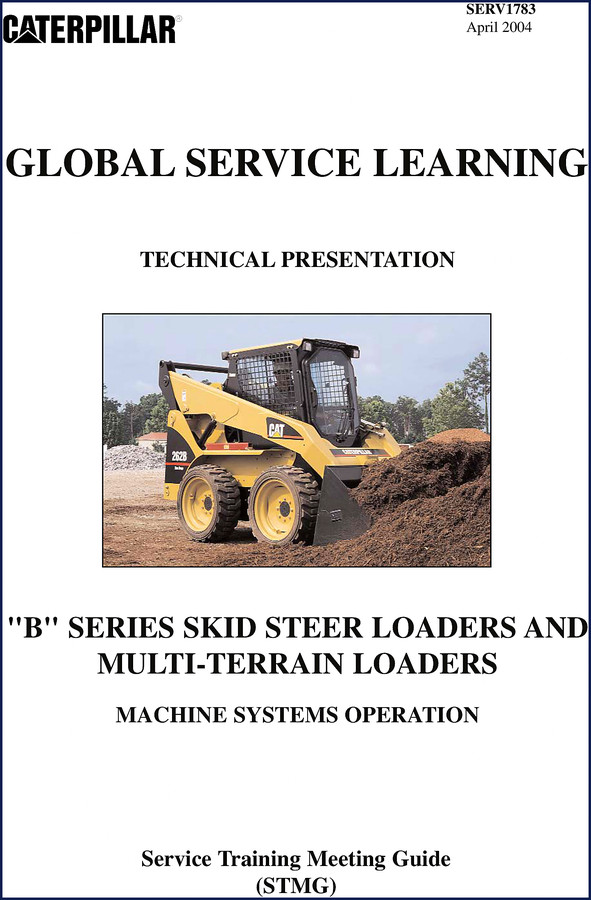

Caterpillar 262B 2004 Training Manual

I’ve seen too many guys tear into a skid steer hydraulic system with a generic diagram and end up chasing ghosts. The Caterpillar 262B 2004 Training Manual is not that. It’s a 202-page factory document from Caterpillar’s Global Service Learning, published April 2004. This is the same material used to train Level II service personnel who already understand machine systems operation, diagnostics, and testing procedures. If you’re working on a 262B and need to understand the electronically controlled pilot system, the hydrostatic drive, or the work tool hydraulics, this is where you start.

Electronically Controlled Pilot System: The Core of Machine Control

This training manual devotes a full section to the electronically controlled pilot system (page 31). It covers component locations, function of each valve and sensor, and how the pilot system interfaces with the main hydraulic controls. You’ll find oil flow diagrams and explanations of the control logic. I’ve had technicians ask me why their machine won’t move or the work tool is sluggish – half the time it’s a pilot system issue they could have diagnosed if they understood the factory training material. This manual gives you that understanding.

Power Train and Hydrostatic Drive System Operation

The power train section (starting page 46) breaks down the hydrostatic drive system operation and the two-speed travel operation. Component locations are clearly illustrated, and the manual explains how the drive pump and motor interact. If you’re troubleshooting a loss of power or strange handling, you need to trace the oil flow. This training manual shows you exactly how the system is designed to work. It also references other factory publications like SERV7104 for deeper service procedures. For parts identification, you can pair this with the Caterpillar 236B 246B 252B 262B 2006 Parts Catalog.

Work Tool Hydraulic System: Beyond Basic Diagrams

Another major focus is the work tool hydraulic system. The manual covers the auxiliary hydraulic system, work tool self-level operation, and the hydraulic work tool coupler system. These are not just basic schematics – they explain the sequence of valve shifts and pressure changes. For anyone who has ever been stuck trying to get a hydraulic coupler to release or a self-level system to behave correctly, this training manual is gold. It also includes a hydraulic schematic color code section and a visual list of components.

Why Factory Training Manuals Beat Aftermarket References

I’ve been turning wrenches for 28 years and I can spot a reprinted aftermarket manual from ten feet away. This one is original OEM print – 2004 Caterpillar, April date, SERV1783. The information inside was written by Caterpillar engineers for dealer technicians. It’s not guessed or interpreted by a third party. The torque specs, pressures, and procedures come from the manufacturer. Don’t trust your safety or your machine to a generic copy. For other Caterpillar equipment, check out the Caterpillar 994F, 994D, 992G 2005 Training Manual Review or the Caterpillar 307D, 308D CR Mini-Hydraulic Excavators manual.

What This Manual Does Not Cover (And Why That Matters)

This is a training manual – it teaches you how the systems work. It is not a service manual with step-by-step disassembly, bolt torque sequences, or fluid capacities listed in the index. If you need to replace a hydrostatic pump, you’ll still need the actual service manual for that machine. But without this training manual, you are blind. You won’t know which direction oil flows, why the pilot system locks out functions, or how the two-speed travel actually engages. That knowledge saves you time and prevents damage. If you are comparing this to a Manual Transmission knowledge base, it’s similar: understanding the theory makes repair faster.

Frequently Asked Questions

Is this the same as a service repair manual?

No. This is a training manual focused on systems operation. It complements a service manual but does not include step-by-step repair instructions.

What models are covered?

This specific manual covers the Caterpillar 262B skid steer loader. It also references other B-Series machines (226B, 242B, 248B, 257B, 268B) for high flow hydraulic systems, but the primary focus is 262B.

Does it include wiring diagrams?

It includes hydraulic schematic color code diagrams, not electrical wiring diagrams. For electrical, you would need the electrical schematic manual for the 262B.

Can I use this manual to learn about manual transmissions?

No. This is about hydrostatic drives. For gear-based transmissions, see a dedicated resource like Manual Transmission explanations elsewhere. But for understanding skid steer hydrostatic systems, this is the factory source.

So if you want to understand the machine systems properly – the pilot logic, drive flow, and work tool hydraulics – stop relying on forum guesses and third-party rehashes. Access the Factory Manual and get the real information Caterpillar intended for their technicians. 202 pages, 141 illustrations, and 21 handouts of test material. This is how you learn to work on a 262B the right way.
