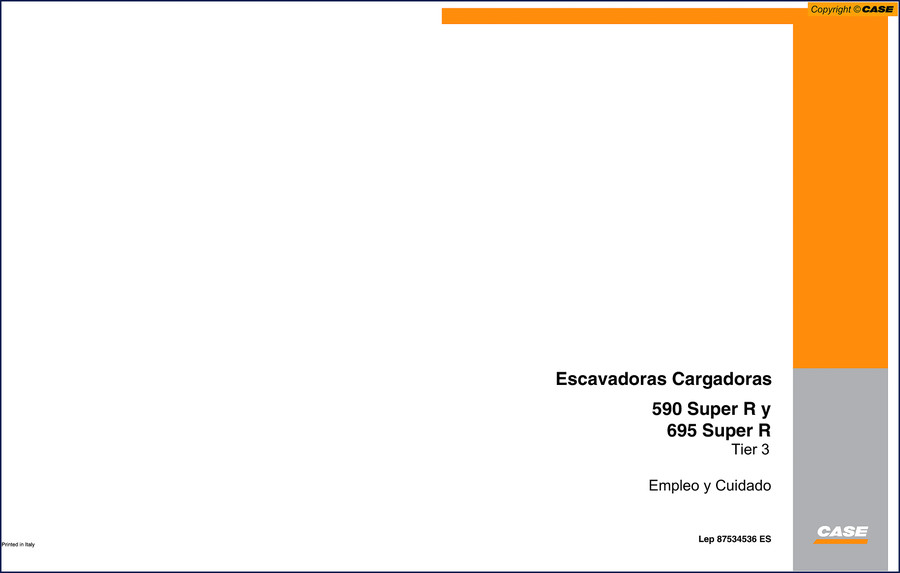

Case 590 Super R, 695 Super R Operators Manual – Factory Specs and Safe Operation

You got a Case 590 Super R, 695 Super R Operators Manual on the workbench? Good. Because running a 590 Super R or 695 Super R without the OEM manual is like torquing head bolts with a crescent wrench – you’re asking for a trip to the hospital or a blown engine. I’ve seen too many guys skip the safety section and end up with a loader arm in the cab. This thing is 294 pages of factory procedure, not some aftermarket copy that guesses the hydraulic relief pressures. CASE printed this for the Tier 3 machines, and it’s the only document that tells you the exact fluid capacities in quarts, the correct lug nut torque in ft-lbs, and what that orange safety label actually means.

What This 294-Page Operators Manual Actually Covers

Flip past the copyright page (page 2) and you hit the safety section. The manual walks you through every hazard label – red for immediate danger, orange for serious injury, yellow for caution. Then it dives into the controls: steering column levers, loader joystick, backhoe controls, and the instrument panel with all the warning lights. You get daily operation procedures, cold-weather start steps, and towing instructions. The maintenance section covers fluid checks, filter intervals, and the greasing schedule. Need the lift capacity for a 695 Super R? It’s in the specifications chapter. This isn’t a service manual – it won’t show you how to rebuild the transmission. But if you want to operate the machine safely and keep it running between service intervals, this is the document you need. For deeper repair work, pair it with the CASE 590 Super R 695 Super R Service Manual.

The book is bilingual – Spanish and English – which matters if your crew reads either language. Each section has the same info in both languages side by side, so no translation guesswork.

Safety Warnings: Not Optional, Not Generic

The biggest mistake I see home garage guys make is treating safety labels like window stickers. This manual prints every warning that CASE put on the machine, with the exact ISO symbols and color codes. Page 4 shows the triangle warning system: red for immediate death or injury, orange for serious injury, yellow for minor injury or unsafe practice. The manual spells out that you must read all safety decals before operating. It also covers lockout procedures, fire prevention, and what to do if the machine rolls over. If you rely on a photocopied third-party manual, you might miss the fact that the 695 Super R has a specific ROPS certification and a 5-point seat belt that needs regular inspection. The OEM manual doesn’t skip that.

After the safety section, there’s a full page on mandatory operator training – the manual says the operator must be informed, must read the manual, must be the only person in the work zone. That’s not legal CYA; that’s CASE telling you how not to kill yourself.

Controls, Instruments, and Daily Operation

Every lever, switch, and gauge gets a diagram with callouts. The manual explains the ESX control override – if the computer locks you out, here’s the reset sequence. It shows the correct hand signals for crane operations, the starting procedure for cold weather (including glow plug times), and how to engage the front axle disconnect. For the 590 Super R, there’s a specific section on the powershift transmission – not a rebuild guide, but the shift pattern and troubleshooting for common faults like hesitation. If the transmission acts up, this manual tells you to check the neutral safety switch and the Manual Transmission linkage adjustments before calling a tech. Same goes for the hydraulic system: the manual lists the correct oil viscosity for summer and winter, and the relief valve settings (in psi) for the backhoe and loader circuits. No guessing.

Who Needs This Manual? (Hint: Anyone Running a 590 Super R)

A beginner who just bought a used 695 Super R at auction needs this manual to avoid wrecking the machine on the first day. A farm owner who runs a 590 Super R for weekend brush clearing needs it to know when to change the hydraulic oil and how to check the swing brake. A shop owner with a fleet of Case loaders needs a copy in the cab so every operator reads the same safety rules. Even experienced mechanics need the factory decal placement diagram when replacing a seat or repainting the ROPS. This manual is not for rebuilding an engine – you want the service manual for that. But for safe operation, daily checks, and knowing where the grease fittings are, this is the one. If you’ve ever been handed a pile of copied pages and told “that’s the manual,” you know the pain of missing pages and blurred torque values. The OEM PDF gives you every page, every warning, every spec, in order.

OEM vs Aftermarket: Why Only the Factory Manual Works

I’ve got a drawer full of aftermarket manuals that say “specifications may vary.” That’s useless. The Case 590 Super R, 695 Super R Operators Manual comes from CASE’s own technical information group – CNH Italia S.p.A. printed this. The hydraulic pressure values, the tire inflation tables, the loader lift capacities – they come from the same engineers who designed the machine. An aftermarket manual might tell you the fuel tank holds 30 gallons; this one tells you it’s 27.5 gallons because that’s what CASE measured. If you’re working on a Tier 3 engine, the emissions components require specific regeneration procedures that only the OEM manual covers. Third-party reprints often skip the safety decal illustrations because reproducing color labels costs extra. That’s a liability I won’t touch. If you want to know why the Supercharger Systems on some engines differ, that’s a separate topic – but for your backhoe, stick with CASE’s own documentation. And if you need a related manual for a smaller Case skid steer, check the Case SL1-b, SL2 1995 Operators Manual – Factory Specs or the Case SV212, SV216, SV208, SV210, SV223 Operators Manual – 214 Pages for the newer SV series.

Does this manual cover the service procedures, like rebuilding the engine or transmission?

No. This is an operators manual, not a service manual. It covers safe operation, daily checks, fluid specs, and basic maintenance. For in-depth repair, get the factory service manual.

Why is the OEM manual better than a PDF I find for free online?

Free online copies are often scanned from someone else’s copy, missing pages, blurred, or out of order. This 294-page OEM PDF is a direct scan of the original CASE publication – every page, every safety decal, every torque spec in ft-lbs. No third-party rewrites. The hydrostatic drive section includes the correct test pressures and the exact procedure for bleeding the steering system. I’ve seen free copies that swap the 590 Super R fluid capacities with the 695 Super R – that’ll cost you a pump if you trust it. The factory manual also includes the revision date and the copyright from CASE, so you know it’s the current version. For the price of a couple of hydraulic filters, you get the same documentation that CASE ships with a new machine. That’s not a corner to cut.

You need the real thing on your tablet or printed in the cab. Don’t operate a 590 Super R or 695 Super R without knowing the cold-start procedure, the correct tire pressure, and where the swing lock pin goes. Access the Factory Manual from AutoRepairManuals – no reprints, no guessing, just the OEM document that CASE intended.
