Bolens 600, 180, 850, 190, 184 1978 Service Manual

Working on a vintage Bolens medium tube frame tractor and you don’t have the factory specs? You’re not alone. I’ve had guys come into my shop with half-assembled transaxles because they trusted a photocopied aftermarket cheat sheet. That’s how you end up with stripped threads and wrong clearances. This Bolens 600, 180, 850, 190, 184 1978 Service Manual is the real deal – 100 pages of OEM data, not some third-party summary. If you want to keep that old tractor running without chasing ghosts, this is what you put on the bench.

Bolens 600, 180, 850, 190, 184 1978 Service Manual: Content Breakdown

Group I starts with General information: serial number data, tractor chart, and lubrication points for both gear drive and hydrostatic drive. You’ll find the factory lube chart on page 1-9 (gear drive) and page 1-11 (hydro). Don’t guess – use the exact grease and oil types listed there. Group II is the Electrical system – sixteen wiring diagrams covering magneto ignition, battery ignition, and solid state ignition for models like the 850 (191-02) and 1050 (192-02). Need the diagram for the 180 with magneto? Page 2-2 has it. Group III covers Drive Train – transmission assemblies for 3-speed, 6-speed, 5-speed gear, hydrostatic, and the Model “10” hydro repair. Each section includes a trouble shooting guide, bearing installation tools, and oil seal tools. Group IV gives you the Fuel System with carburetor adjustments on page 4-4. Group V is Chassis – steering, clutch assemblies, belt guides, brake adjustments. The index at the front shows every page so you never waste time flipping.

Why OEM Specs Matter More Than a Rebranded PDF

I’ve seen aftermarket manuals that say “torque to spec” without giving you a number. That’s useless. This Bolens manual gives you actual torque values in foot-pounds, clearance tolerances in thousandths, and factory rebuild sequences. The wiring diagrams are not redrawn by some intern – they’re scanned from the original Bolens prints. For example, the diagram for the 850 (185) magneto ignition on page 2-4 shows the exact wire colors and connector locations. If you’re swapping a stator or chasing a no-spark condition, that diagram is your roadmap. Aftermarket copies often reverse polarity or omit the diode/relay section on page 2-17. Stick with the OEM source.

Does This Manual Cover the 190 and 184 Models?

Yes. The tractor chart in Group I lists the 190 (model 1000) and 184 (model 900) with their serial number ranges and engine specs. The wiring diagram on page 2-2 covers the 300 (180), 400 (187), 900 (189), and 1000 (190) with magneto ignition. The 184 appears in the 900 series. So if you own a 184, you’re covered. The 850 appears in multiple variants – 850 (185), 850 (191), 850 (191-02) – all their wiring is on pages 2-4 and 2-5. This manual is built for these specific chassis numbers, not a generic Bolens book.

3 Repair Procedures That Stand Out

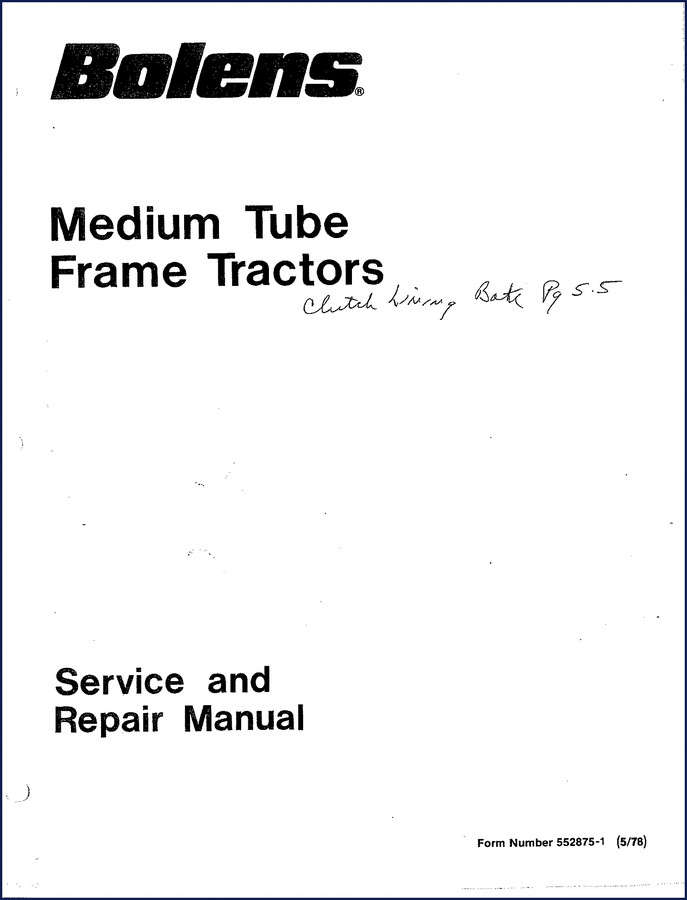

First, the hydrostatic neutral adjustment in Group V – critical if your tractor creeps forward. The procedure on that page walks you through the lock-nut sequence and the spring tension check. Second, the clutch lining bake process mentioned on the cover – page 5.5 (which is actually page 5-5 in the manual) gives you the oven temperature and time to cure a new lining. Third, the Model “10” hydrostatic repair in Group III – not many shops attempt that rebuild, but the manual includes disassembly steps, seal driver dimensions, and the worm centering kit part number (17-002). You can order that kit from Bolens dealers.

Transmission Options – No Guessing Which One You Have

The Drive Train group splits out the 3-speed, 6-speed, and 5-speed gear transmissions plus the hydrostatic package. Each one has its own trouble shooting guide. For the 5-speed gear transmission, the removal and installation of the hydrostatic package is separate starting on page 3-22. If you’re swapping a hydro unit into an older gear-drive chassis, you need those sections. The bearing and oil seal tool lists on pages 3-2 and 3-3 tell you exactly which pullers and drivers fit – no need to improvise with a socket and hammer.

Related Manuals for Your Bolens Fleet

• FMC Bolens HCD-80B Service Manual – 254-Page OEM Shop Manual
• Troy-Bilt Bolens Suburban Tractor Service and Repair Manual
• Bolens DuraTrac Tractor 5100 Series Service Manual

For background on how Manual Transmission systems work across different manufacturers, check the Wikipedia article. And if you need to understand gear ratios for the 6-speed, the same Manual Transmission principles apply.

Can I use this manual for a 1979 Bolens tractor?

This manual covers 1978 models. Later year tractors may have wiring changes or different carburetors. You’d need the 1979 supplement.

Does the manual include hydrostatic drive adjustments?

Yes. Group III has the Model “10” hydrostatic repair section, and Group V covers hydro neutral adjustment and belt guides. Page 3-39 starts the hydro repair.

What about the clutch bake procedure mentioned on the cover?

That procedure is inside – the manual tells you to bake the new clutch lining at 300°F for 30 minutes. Don’t skip that step or the lining will glaze.

Are the wiring diagrams in color?

No, they are black and white scans of the original Bolens prints. Wire colors are labeled with abbreviations. If you can’t read them, you need a magnifying glass.

If you’ve got a Bolens 600, 180, 850, 190, or 184 sitting in the barn and you want to get it back to working condition without pulling your hair out, this is the document you need. Access the Factory Manual and start your repair with the actual specs Bolens engineers put on paper.
