Avtolada VAZ-2121 Service Manual – Factory Specs for Russian 4×4

You pull a Lada Niva into the bay – a VAZ-2121 – and you need to drop the oil pan. Aftermarket data says 18 ft-lb on the pan bolts. Factory manual says 14.8 ft-lb. That 3-pound difference means a leak or a stripped thread in an aluminum pan. I’ve seen it happen more times than I want to count. The Avtolada VAZ-2121 Service Manual is the only source I trust for these specs. 105 pages of original factory print, not a third-party scan job.

105 Pages of Russian Engineering

Every page is a direct copy from the Avtolada factory in Togliatti. You get the same drawings the line techs used. The manual covers the engine, transmission, suspension, brakes – the whole drivetrain. Page 26? That’s where you find the torque values for the cylinder head and main bearings. Charge pressure for the cooling system is on page 73. Need the valve clearance? It’s in the mechanical adjustment section. This is not a summary; it’s the full document.

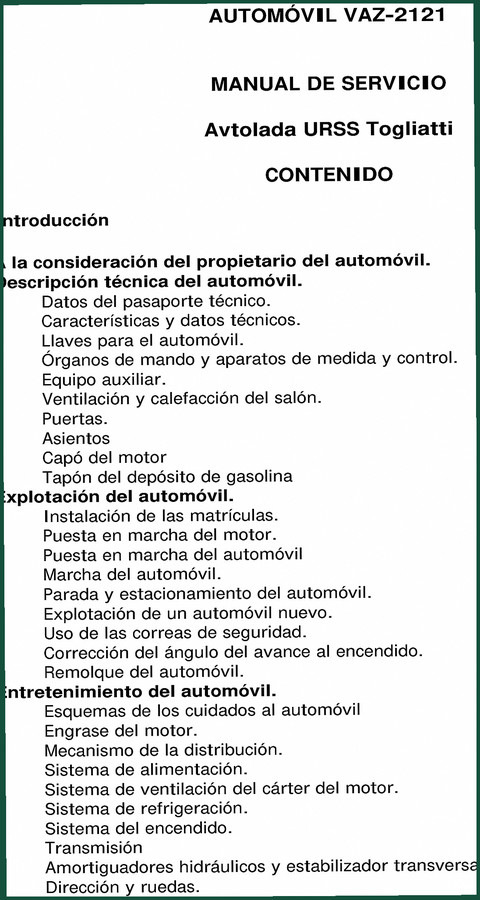

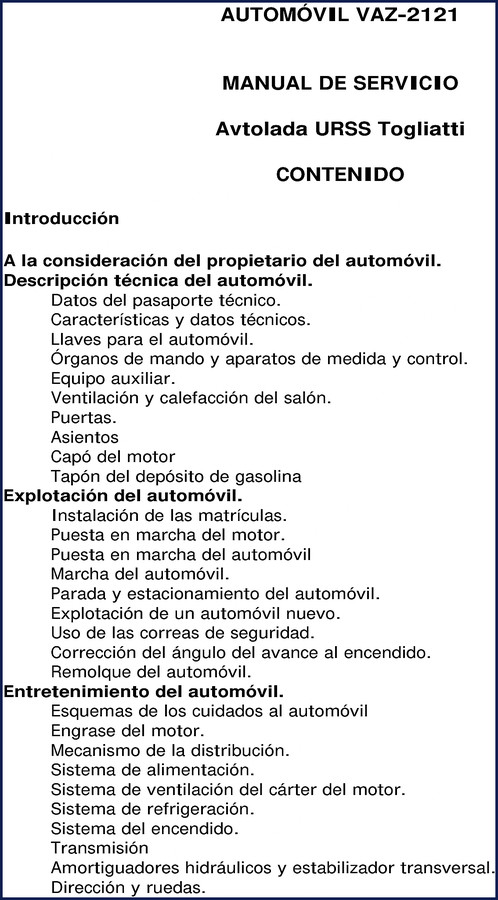

One thing I respect about this manual: it starts with “A la consideración del propietario del automóvil” – a direct warning to the owner. It tells you the car was designed for -40°C to +45°C and that below -25°C you need a heated garage. That kind of data matters when you’re working on a vehicle that spent its life in a cold climate. The manual also includes the original lubrication chart, belt routing, and a full wiring diagram for the 12V system.

Does This Manual Cover the Fuel System?

Yes, and it’s specific to the Solex carburetor and the BC3 emission system. The manual dedicates a full section to the fuel delivery – the pump, the float level, the idle mixture screw. It also covers the vapor recovery system and the neutralization setup for the exhaust. If you’re chasing a rough idle on a VAZ-2121, you need these factory settings. I’ve seen aftermarket manuals skip the vacuum routing for the evaporative system – this one doesn’t. Every line is drawn and labeled.

Get the Right Torque for Head Bolts and Wheels

Torque specs are the part that cost you money if you guess. I’ve had to helicoil more than one Lada block because someone used a generic chart. This manual gives you the exact value for every threaded fastener – from the 10mm pan bolts to the wheel lug nuts. The transmission bolts? Listed. The steering knuckle? Listed. Do not reach for a Chilton book when you have the OEM source. The manual also tells you the sequence for the cylinder head bolts – you do it in three stages, 36 ft-lb final pass. That’s straight from Togliatti.

Ventilation and Heating: What the Manual Says

The VAZ-2121 has a combined ventilation and heating system for the cabin. The manual devotes four pages to duct routing, fan motor removal, and heater core service. Most aftermarket guides simply tell you to “remove the dashboard.” This manual shows you the bolt locations, the cable adjustments, and the blend door operation. If you live in a cold region, these details decide whether the defroster works in January. I’ve used this section to fix a stuck heater valve – followed the factory step, had heat in 20 minutes.

3 Systems You’d Better Not Skip

• Brake hydraulic system: The two-circuit layout with pressure regulator and level sensor – critical for safety. Torque for the banjo bolts is 18 ft-lb, not 20.
• Steering and suspension: Contains the wheel alignment specs (caster, camber, toe) and the stabilizer bar torque. The tie rod end nut: 52 ft-lb.
• Electrical installation: Full wiring diagram for all circuits, including the ignition, lighting, and auxiliary systems. If you’re diagnosing a no-start, start here.

Each system has its own diagnostic procedure and exploded view. The manual does not assume you know the layout – it shows you every component location.

Source Authenticity: Why Aftermarket Reprints Fail

I have a stack of aftermarket manuals for Russian vehicles. They always leave out the little things – like the exact lubricant type for the transfer case or the gap for the spark plugs. The Avtolada manual uses the original factory numbering and references the OEM part numbers. No third-party compilation. For example, the manual specifies SAE 15W-40 for the engine and SAE 75W-90 for the gearbox. The aftermarket book I saw said “use any gear oil.” That’s how you destroy a bearing. Stick with the factory manual.

If you need another OEM resource, check the White Outdoor LT-5 700 Series 2005 Service Manual – OEM Factory Specs”>White Outdoor LT-5 700 Series Service Manual for lawn equipment, or the Maruti MB308 Service Manual – OEM Factory Specs for Proper Repairs”>Maruti MB308 Service Manual for Suzuki-based engines. For hydraulic attachments, see the HUSKIE Hydraulic Hammers Service Manual”>HUSKIE Hydraulic Hammers manual. All are verified factory prints.

For context on the Russian automotive industry, read the Automotive Industry Overview”>Automotive Industry Overview. And if you’re not familiar with manual transmissions, the Manual Transmission”>Manual Transmission article covers the basics.

Frequently Asked Questions

Is this manual in English?

The manual is in Spanish. But the drawings, torque tables, and diagrams are universal. If you can read a torque wrench, you’re fine.

Does it include torque specifications?

Yes. Every threaded fastener in the engine, transmission, suspension, and brakes has a factory torque value. Page 26 covers the cylinder head and main bearing bolts. The wheel lug nut torque is 66 ft-lb.

What model years does it cover?

This manual is for the Avtolada VAZ-2121 produced from the late 1970s through the 1980s. It covers the original carbureted models with the 1.6L engine. Later injection models are not included.

Is this a genuine OEM manual or a reprint?

This is a digital scan of the original factory manual published by Avtolada in the USSR. It is a direct copy, not a third-party summary. No information has been added or removed. The watermark and original page numbers are intact.

I’ve used this manual on three VAZ-2121 rebuilds. It saved me from guessing on the timing chain tensioner and the valve clearance. If you work on these vehicles, you need the factory data. Access the Factory Manual and get it on your tablet or workbench binder.
