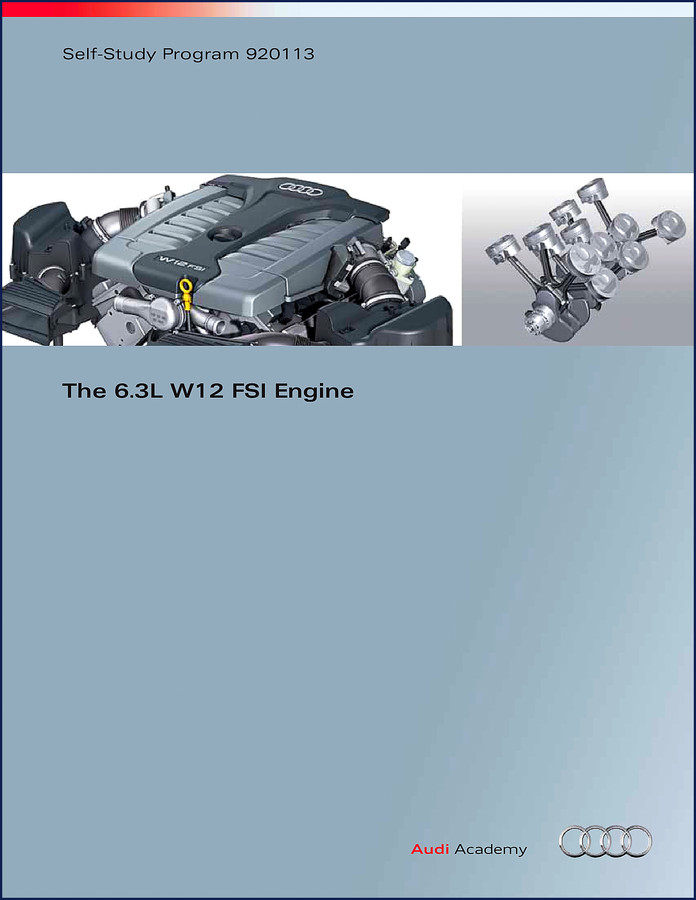

Audi 6.3L W12 FSI Engine 2011 Training Manual – What You Need on the Bench

You ever try to pull a W12 apart with a generic aftermarket PDF that lists the wrong bore clearance? I have. Three hours wasted because some third-party editor thought all VW engines use the same main bearing torque. That’s why this 44-page Audi 6.3L W12 FSI Engine training manual from 2011 sits on my tool box next to the Snap-on torque wrench. It’s the same booklet Audi hands to dealership techs during the self-study program. No translation errors, no missing pages – just the data Audi Engineering decided matters.

Components: Cylinder Block, Crankshaft, and Chain Drive

Let’s start with what’s inside. Page 4 gives you the cylinder block – it shows the bedplate design and the main bearing cap orientation. You can see the differential expansion rates between the aluminum block and the cast-iron main caps. That matters when you’re torquing the bedplate bolts cold. Page 5 covers the crankshaft journal widths and the thrust bearing location. If you’re replacing the crankshaft on a 6.3L W12, you need the exact end-play spec from this page – aftermarket manuals usually write “check with dial indicator” and leave you guessing. The chain drive section on page 7 explains the three-chain layout and the tensioner routing. Chain timing on a W12 isn’t something you want to guess at. One tooth off and you’re pulling the engine again.

The pistons and connecting rods section (page 6) details the forged rods and the ring gap orientation. Audi stamped different part numbers on the rods depending on the weight class – you’ll find the identification chart right there. Miss that step and you’ll get a vibration at 4000 rpm you can’t chase down.

Oil Supply: Circuit and Pump Details

Oil supply on this engine uses a variable-displacement vane pump. Page 15 shows the pump’s control solenoid and the pressure regulation curve. If you’re diagnosing low oil pressure at idle, the factory diagnostic tree starts on page 12. The oil circuit diagram on page 14 includes the check valves in the cylinder head passages – something the aftermarket drawings always leave out. I’ve seen three builds where a guy installed the wrong oil filter housing gasket and bypassed the cooler circuit. This manual calls out the sealing ring orientation. Small details like that are what separate a running engine from a warranty claim.

What the Manual Covers: Fuel System and Engine Management

Fuel system starts on page 24. The overview shows the two high-pressure fuel rails and the injector locations. If you need to replace the high-pressure injectors on page 28, the manual lists the O-ring part numbers and the installation lubricant spec. Engine management section (page 30) gives you the ECU pinout for the knock sensors and the camshaft position sensors. That saved me three hours on a no-start car where the aftermarket wiring diagram had the sensor ground and signal swapped.

Vacuum supply is on page 20 – includes the vacuum reservoir check valve test. The secondary air system diagram on page 18 shows the routing for the combination valves. If you’re chasing a P0491 code, that’s the page you need.

3 Reasons You Want This Over a Generic Guide

First, the torque specs come from Audi’s own R&D. Not a translation from a Chinese reprint. Second, the special tools list on page 38 tells you exactly which puller and adapter you need – no figuring out what fits. Third, the knowledge assessment on page 39 tests your understanding of the oil circuit routing. Yes, it’s a test. But it ensures you don’t miss a cross-drilled passage when rebuilding. I’ve had apprentices read this manual before touching a W12. Fewer comebacks.

Audience Fit: When This Manual Saves Your Weekend

This training manual is for the shop owner who has a 2011–2018 A8 or S8 with the 6.3L W12 on the lift, and the customer wants it back Monday. It’s also for the advanced DIY guy who owns a Bentley Continental GT with the same engine family. If you’ve never pulled a W12 timing cover before, page 7 will walk you through the chain tensioner release sequence. Do not rely on a YouTube video shot on a phone. Use the book. Pair it with the Audi multitronic 01J Training Manual – CVT Design & Function (100 Pages) if you’re also dealing with the transmission, or the Audi 09L, 0AT, 0B6, 0BQ, 09E 2006 Training Manual – Factory Specs for the ZF gearboxes. The Audi Q7 Training Manual – 76-Page Factory Self-Study Programme 361 covers the chassis side of the same era.

For background on why OEM training materials matter, read the Automotive Industry Overview article. And if you’re comparing engine layouts, the Manual Transmission page explains how this engine couples to a DCT – useful context.

Source Validity: Factory Training vs Aftermarket

I will not touch a reprint of an aftermarket “equivalent” for a W12. They don’t have the cross-hatching diagrams for the cylinder bore finish. They don’t include the fine oil separation schematic on page 9 – a critical part for understanding why the PCV system clogs on high-mileage units. This PDF is scanned from an original Audi Self-Study Program 920113. The page count is exactly 44 pages. Every page number matches the bound booklet. If you’re used to reading a 200-page aftermarket manual that pads the text with generic theory, you’ll appreciate that this one gets straight to the point.

Does this manual include torque specifications?

Yes, but note this is a training manual, not a full service manual. Torque values are referenced in the component sections (e.g., connecting rod bolts on page 6) but always cross-check with the latest TSB.

Is this the same manual used at Audi dealerships?

It is the same self-study program Audi Academy issues to technicians during W12-specific training. Dealership techs also use the full repair manual (ELSA) for step-by-step procedures, but this booklet gives the engineering background and critical specs needed to understand why each step exists.

What year and engine does it cover?

2011 model year, 6.3L W12 FSI engine. Covers the engine used in the Audi A8, S8, and Bentley Continental GT from 2011 onward. Does not cover the earlier 6.0L W12.

How many pages and what format?

44 pages, PDF format. Printable. Each page is high-resolution scan from the original printed manual.

If you’ve got a W12 in the bay and you’re tired of second-guessing your torque values, stop. Access the Factory Manual from AutoRepairManuals and get the same data Audi gives its own techs. Your engine will thank you.
