Allison B 500, B 300, B 400, MD 3060, MD 3066 2001 Troubleshooting Manual

Let me guess. You’ve got a truck with an Allison B 500, B 300, B 400, MD 3060, MD 3066 2001 Troubleshooting Manual problem sitting in your bay. The check trans light is on, the shift feels wrong, or you’re staring at a code you don’t recognize because the aftermarket PDF you found didn’t list half the fault descriptions. I’ve been there. You end up wasting time cross-referencing forums, guessing wire colors, and hoping you don’t fry an ECU. This manual kills that guesswork cold.

Allison Transmission issued TS2973EN in June 2001. It’s 400 pages of factory troubleshooting for the WTEC III electronic controls on MD/HD/B Series on-highway transmissions. That covers the MD 3060, MD 3066, MD 3560(P)(R), MD 3070PT, HD 4060/4070/4076/4560, and the B 300, B 400, B 500. If you work on any of these, this is the only document you need for diagnostics.

What This Manual Covers – Model List

This is not a generic truck transmission book. It is specific to Allison’s MD/HD/B Series with WTEC III controls (TransID 1, 2, and 3). The manual explicitly lists: MD 3060/MD 3066/MD 3560(P)(R), MD 3070PT, HD 4060/HD 4070/4076/HD 4560(P)(R), and B 300/B 400/B 500(P)(R). If your unit matches any of those, you are holding the correct factory troubleshooting path.

400 Pages of Factory Specs – Not a Condensed Version

Aftermarket manuals cut corners. They leave out wire check procedures, ignore the ECU’s autodetect feature, and skip the TransID feature entirely. This manual has all of it. Section 1 covers the general description, including the electronic control unit, shift selector, throttle position sensor, speed sensors, control module, wiring harnesses, vehicle interface module, autodetect for V9A and V8/V8A/V9 software, and the TransID feature. Section 4 gives you the exact procedure for checking opens, shorts between wires, and shorts-to-ground at the transmission connector and internal harness. No fluff, no shortcuts – just the OEM method.

Wiring and Diagnostics – Where the Manual Earns Its Keep

Any time I see a burned wire or intermittent code, I go straight to Section 4 – Wire Check Procedures. It tells you how to test for opens, shorts between wires, and shorts-to-ground. Appendix D (Wire/Connector Chart) and Appendix E (Connector Part Numbers, Terminal Part Numbers, Tool Part Numbers, and Repair Instructions) mean you can order the exact terminal and use the correct crimp tool. The manual even specifies that internal harness repair parts come from Allison PDC, while external harness parts come from St. Clair Technologies. That kind of sourcing detail saves you a parts return headache.

The diagnostic code section (Section 6) lists over 30 distinct fault families, from Code 13 XX (ECU Input Voltage) to Code 69 XX (ECU Malfunction). Each code has its own troubleshooting procedure. For example, Code 22 XX covers speed sensor/circuitry faults. You get the response logic and step-by-step wire checks. That’s not something you find in a generic manual.

Understanding Diagnostic Codes – Real Text from the Manual

Here is a sample from the actual PDF: “CODE 22 XX — SPEED SENSOR/CIRCUITRY FAULT.” The manual then walks through the possible causes – sensor gap, wiring integrity, ECU pin damage. It also tells you the system response (e.g., default shift pattern). If you’ve ever fought a speed sensor issue on an MD 3060, you know how critical that guidance is. The same depth applies to every code in Section 6. Plus, the oil level sensor section (Section 5) gives you two ways to check electronic fluid level: through the shift selector display or using a Pro-Link 9000 tool. No guessing.

Who Needs This Manual – Shop Owner or Home Garage

If you are a pro technician, you already know not to trust aftermarket knockoffs. One wrong torque spec on a valve body bolt can cost you a rebuild. This manual is for anyone who touches Allison B 300, B 400, or MD 3060 transmissions. It is also for the fleet owner who wants his mechanics to have the factory diagnostic flowcharts instead of relying on memory. And yes, an experienced DIYer with a diagnostic tool (like the Allison Transmission Diagnostic Tool J-44950) can use this manual – but you need to be comfortable with wiring diagrams and multimeter work. This is not for the beginner who has never seen a transmission harness.

Unlike a Manual Transmission, this transmission uses electronic controls that require precise voltage and resistance checks. The manual tells you exactly what readings to expect. Appendix B covers checking clutch and retarder pressures. Appendix C provides the solenoid and clutch chart so you can identify which solenoid controls which clutch. That is the kind of detail that keeps you from pulling the wrong pan.

Speaking of related documentation, if you need the overhaul procedures, pair this with the Allison 4000 MH HD 4000 B 500 Service Manual. For general transmission knowledge, the Allison Transmission MD 3000/HD 4000 Mechanic’s Tips Manual is useful. And for earlier control systems, see the Allison TS2470EN Troubleshooting Manual.

Another external resource: the concept of a Manual Transmission is mechanically simpler, but that does not apply here. You are dealing with solenoids, pressure switches, and an ECU that stores codes. This manual is your only reliable guide to that electronic system.

Source Validity – OEM Only

This is a genuine Allison Transmission publication, copyrighted by General Motors Corp. in 2001. The PDF is a direct scan of the factory troubleshooting manual, not a retyped copy with lost data. I have seen too many shops buy a third-party “compilation” that omits the safety notice and the foreword on how to use the manual. That foreword tells you that the manual is intended to be used with Service Manuals SM2148EN and SM2457EN and Parts Catalogs PC2150EN and PC2456EN. You get the complete package.

Frequently Asked Questions

Does this manual cover the MD 3560?

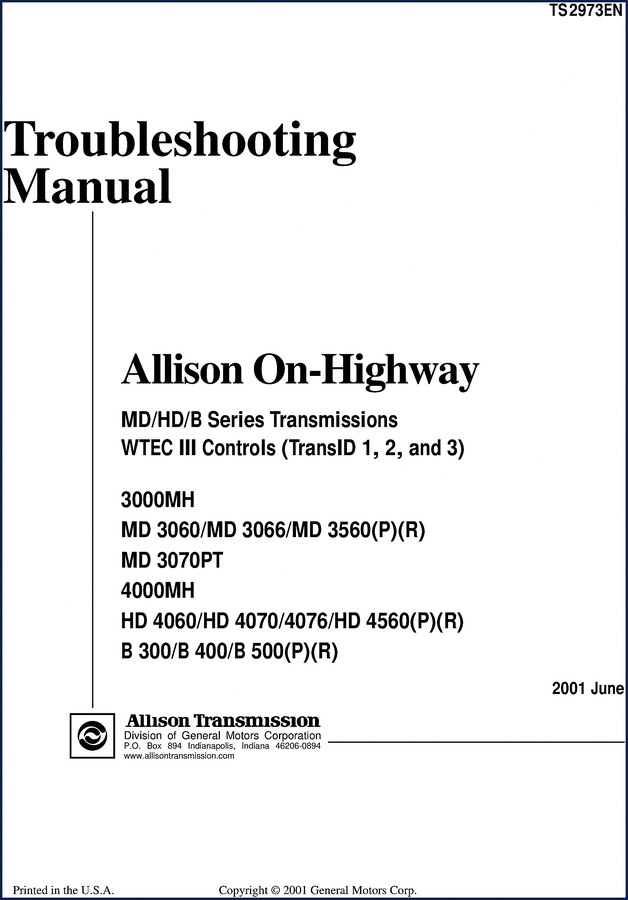

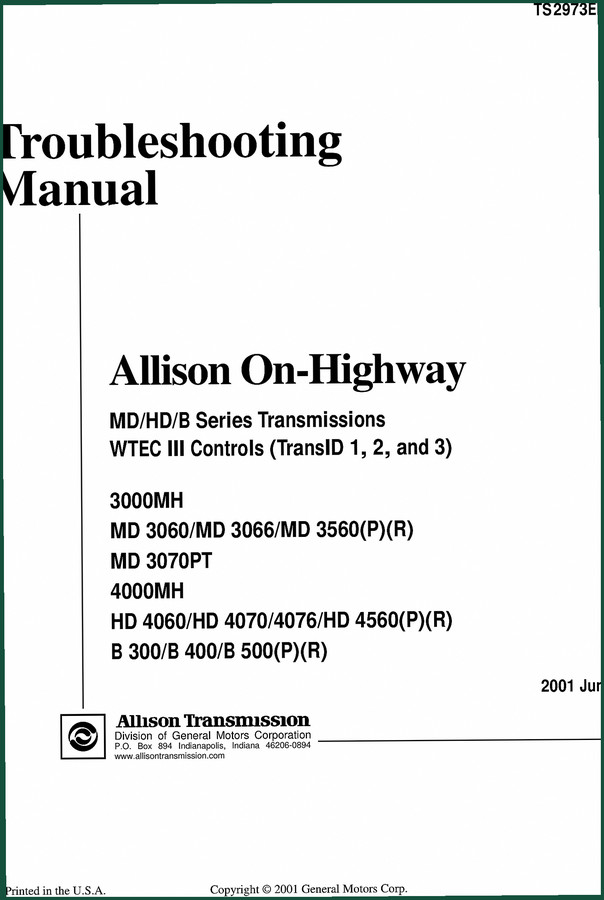

Yes. The title page lists MD 3560(P)(R) as one of the covered models.

Can I use this manual for a B 500 transmission with WTEC III?

Absolutely. The B 500 is specifically listed in the manual. The troubleshooting procedures, diagnostic codes, and wire checks apply directly to that model.

Does the manual include torque specifications for valve body bolts?

No. This is a troubleshooting manual, not a service manual. For torque specs, you need the corresponding service manual (SM2148EN or SM2457EN). This manual focuses on electrical and electronic diagnostics, not mechanical rebuild specs.

What diagnostic tools does the manual reference?

The manual mentions the Allison Transmission Diagnostic Tool J-44950 (ATDT) and the Pro-Link 9000 for electronic fluid level checks. It also references the Diagnostic Data Reader. For code reading and clearing, the shift selector itself can display active codes.

Do not waste another hour chasing ghosts in the wiring. Access the Factory Manual now and get the OEM diagnostic procedures for your Allison B 300, B 400, B 500, MD 3060, or MD 3066 transmission. You will have the complete 400-page PDF with every code, every test, and every connector pinout. That is the difference between a fix that sticks and a comeback.
