ALL Product Index RC60-72H Parts Catalog

If you have ever sat staring at a pile of disassembled mower deck parts wondering which universal joint cross assembly actually fits your RC60-72H serial number, you know the pain. Aftermarket parts books are about as useful as a screen door on a submarine – they leave out the S.No. ranges, swap descriptions, and skip the I/C codes. That is why this ALL Product Index RC60-72H Parts Catalog exists. It is a factory-format index that tells you exactly which part number goes where, what serial number range it works on, and whether it interchanges with older or later builds.

Understanding the Column Headings (Page 1 Instructions)

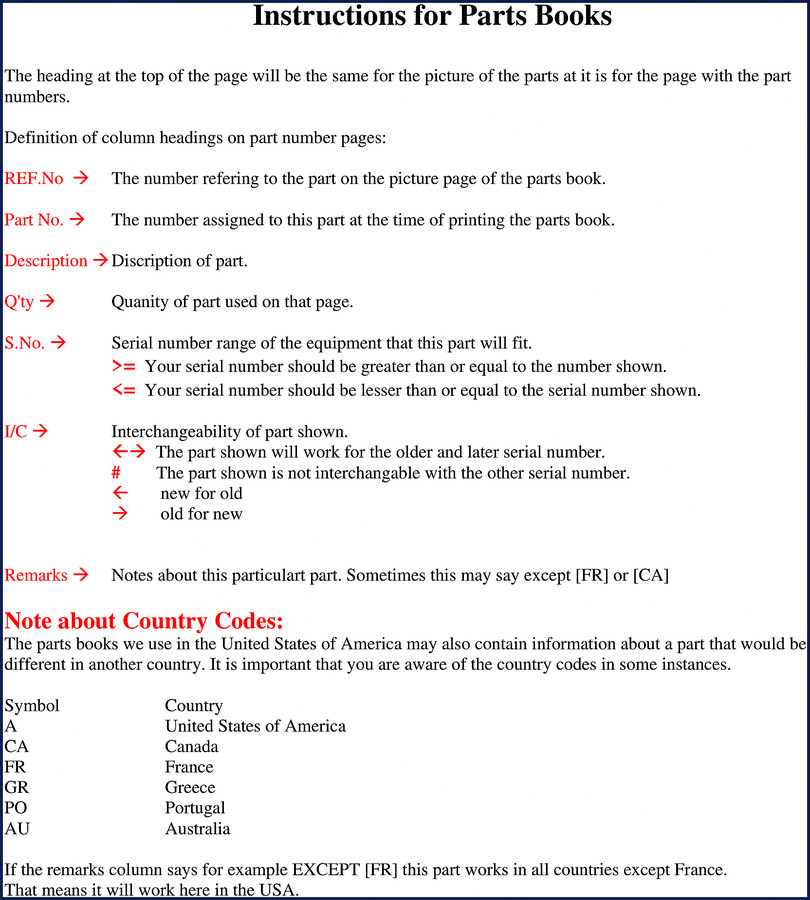

The manual opens with a one-page breakdown of what each column on the part number pages means. REF.No points to the numbered callout on the illustration. Part No. is the factory-assigned number at time of printing. Description is not a guess – it says exactly what you need. Q’ty tells you how many of that part are used per assembly. S.No. gives the serial number range: your machine serial must be ≥ the number shown for parts marked with an arrow (→), and ≤ for (≤). The I/C column uses three symbols: ↔ means the part works both older and newer, # means it does not interchange, and the arrows new for old / old for new indicate direction of replacement. Remarks may include country codes like [FR] or [CA] – page 1 includes a full country code table so you know that EXCEPT [FR] means the part fits everywhere except France, which includes the US.

JOINT Section: Universal Joint, PTO, and Cross Assembly

Starting on page 4, the JOINT section covers the Mid PTO and Mower Side drives. Every exploded view has numbered callouts corresponding to the parts list on page 5. Need the ASSY JOINT, UNIVERSAL (part 76530-32010)? It lists the weight: 2.98 kgf (6.556 lb) and directs you to reference numbers 002 through 006 for subcomponents. The cross assembly (007 to 009) includes snap rings (70720-32120) and grease nipples (70720-31212). You also get the bolt, spring washer, nut, and split pin for the fixed joint. Without these details, you risk ordering the wrong PTO joint and wasting a day on returns.

GEAR BOX, SPINDLE, and DECK – Three Critical Assemblies

The index pages (page 2 and 3) show the main sections: GEAR BOX/PULLEY/PLATE, SPINDLE, MOWER DECK/WHEEL LINKAGE/LIFT ARM. Each section has its own reference number (01I002 for gear box, 01I003 for spindle, 01I004 for deck). The parts list on page 3 confirms that every subassembly ties back to book number 100K0269. When the gear box shaft seal leaks, you do not need the entire box – you need the exact bearing and seal from the GEAR BOX breakdown. That is what this catalog delivers: the specific item part number, not a generic “seal kit”.

REAR WHEEL, MAIN STAY, and ACCESSORIES

REAR WHEEL (01I005), MAIN STAY (01I006), and ACCESSORIES AND SERVICE PARTS (01I007) round out the index. The rear wheel section includes axle components, bearings, and hardware. MAIN STAY holds the frame structure together – if you are rebuilding a stripped deck, this section gives you the exact bolt lengths and spacers. ACCESSORIES covers optional parts like discharge chutes and deflectors. Country codes in the Remarks column tell you if a part is US-spec or Canadian-spec.

17 Pages of Factory Parts Data

Seventeen pages may sound short, but this is an index – it points you to the correct exploded view pages in the main repair manual. Every page is dense with part numbers, serial ranges, and interchange flags. Compare that to a third-party reprint that leaves out the I/C column and guesses at descriptions. This is a direct scan of the original ALL Product Index document for the RC60-72H. No recompiled spreadsheet.

Why OEM Parts Catalog Beats Aftermarket Versions

I have seen aftermarket catalogs swap part numbers for two different spindle housings because some intern misread the drawing. The factory catalog uses the same numbering system as the assembly line. The S.No. and I/C codes are the only way to know if a part you pulled off a 2006 deck will fit a 2010 chassis. Without this index, you are guessing. I do not guess on my shop floor, and neither should you. Massey-Harris-Ferguson FF 30 GS 1957 Parts Catalog | OEM Fastener Guide follows the same column logic – compare and you will see the consistency.

3 Reasons to Choose the Factory Parts Index

• Genuine parts count – each assembly lists the exact quantity (Q’ty) required per exploded view, so you do not order two snap rings when you need eight.
• Serial number filtering – the S.No. column prevents mismatch between early and late production machines.
• Interchange codes (I/C) – tells you if a part supersedes to a newer number or is locked to a specific range. That matters when hunting NOS parts.

Ball joints are a common wear item on these decks – Ball Joints typically have a specific installation procedure, and the OEM catalog cross-references the correct joint for your S.No. For a broader view of equipment documentation standards, see Automotive Industry Overview.

Frequently Asked Questions

Does this parts catalog include torque specifications for bolts?

No. This is a parts index — it lists part numbers, descriptions, quantities, serial ranges, and interchange codes. Torque values are in the corresponding service manual.

How do I use the country code column to make sure a part fits my machine in the United States?

Page 1 lists a table: Canada = A, USA = CA, France = FR, etc. If the Remarks column says “EXCEPT [FR],” that part works in all countries except France — meaning it fits the USA. If it says “[CA] only,” it is a Canadian-spec part and may differ from your US model. Always check the S.No. range first, then verify the country code. Failing that, you might order a French-only part that does not match US emissions or safety standards.

Before you order another part number you are not sure about, get the factory source. Futura Wear Technology Parts Catalog and LANDTRAC TRACTOR Parts Manual Models 410-550 DTC – Section: Numerical Index cover other equipment using the same column format. The RC60-72H index is the key to buying the right bearing, spindle, or joint the first time. Access the Factory Manual.
