Alfa Romeo 4C Technical Manual – The Only Electrical Guide You Should Trust

I’ve seen too many guys fry a BCM because they trusted a generic wiring diagram off some forum. That’s why when I grab a manual for an Alfa Romeo 4C Technical Manual, I want the factory print – period. This one is exactly that: 74 pages of the OEM electrical system documentation, not a third-party rehash. If you’re working on the electronics of a 4C and you don’t have this, you’re asking for trouble.

8 Electronic Control Units – Factory Breakdown on Page 1

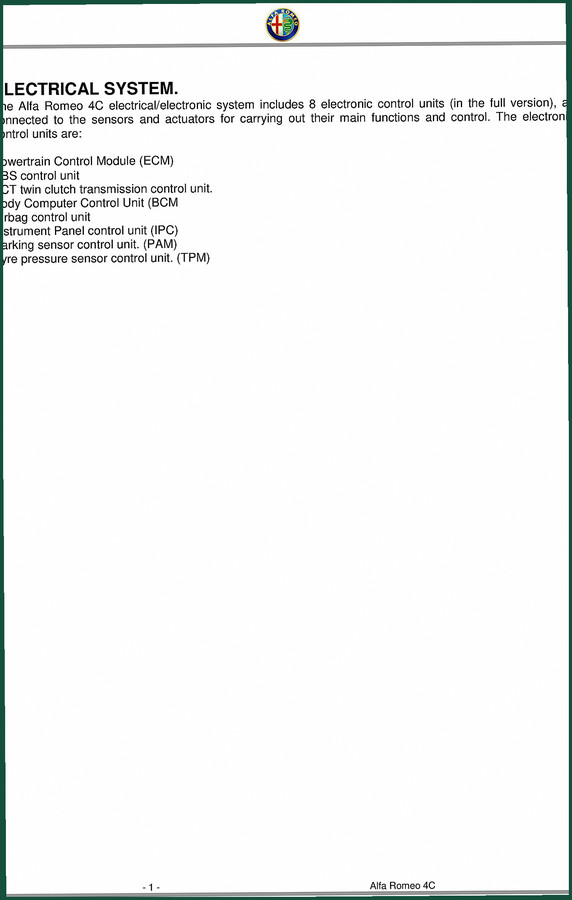

The manual starts with a list you need to memorize: ECM, ABS, TCT twin-clutch transmission control, BCM, airbag, IPC, parking sensor module (PAM), and TPMS. Each one’s function and connection to sensors/actuators is laid out. No fluff. You want to know which ECU handles the start‑enabling relay? It’s right there. This isn’t a summary – it’s the exact list Alfa Romeo engineers use.

Fuse and Relay Layout – Page 2 and 3

You get the full junction unit map inside the rear engine compartment. F01? 70A feeding the BCM. F16? 5A for +15 to ECM and DDCT. Every slot is listed, including the “Available” ones so you know what’s open. Relays are numbered T02 through T30 with amperage and load. Need the fuel pump relay? T10, 20A. The manual doesn’t make you guess – it gives you the ratings and the pin assignments.

Junction Unit: Where Power Distribution Starts

The electrical loads are managed by a single junction unit. The manual shows exactly how power splits to the cooling fans (low‑speed F06 30A or 40A – yes, two variations listed), HVAC blower (F08 30A or 20A), and headlight washer (F82 30A). Each fuse’s function is spelled out in black and white. If you’re tracing a no‑crank condition, start at the junction unit – this manual gives you the road map.

Safety Warning: Disconnect Battery Before Probing Any Control Unit

I shouldn’t have to say it, but I’ve scraped enough carbon off fried pins to repeat it: the 4C’s BCM and TCT modules are sensitive. The manual doesn’t leave safety as an afterthought – the fuse table alone warns you which circuits can pull 50A (high‑speed fan relay T07). Cross a wire on that and you’ll weld a terminal. Use the factory drawings. Write down your meter readings. Don’t skip the step where you disconnect the negative cable. The manual assumes you’re smart enough to do that, but I’m telling you anyway.

OEM Specs vs. Aftermarket Documentation – Why the Factory Manual Wins

I’ve been burned by aftermarket manuals that fuse two circuits into one diagram. The 4C’s electrical system has eight separate control units, each with its own power feed and ground. A generic manual will merge them into a simplified mess. This 74‑page Alfa Romeo 4C Technical Manual keeps each ECU separate. Aftermarket documentation? I don’t trust it. Factory or nothing. Check the Alfa Romeo 33, 155, 166, 145, 145 1.6 Technical Manual – Speed Signal Pickup if you work on older models – same principle applies.

If you need a companion for the HVAC or transmission systems, the Alfa Romeo 33 Air Conditioning Installation Manual covers that era, and the Alfa Romeo Alfetta Owners Workshop Manual 1973-1987 – Section: Chapter 1 gives you a baseline for classic models. For the 4C, stick with this electrical manual.

What Tool List Does the Manual Expect?

It doesn’t list tools beyond a multimeter and a scan tool that can read CAN bus data. The manual is about identifying circuits and fuses, not step‑by‑step removal. That’s fine – once you know the power path, the rest is mechanical. You’ll need a fused jumper, a test light, and a wiring repair kit. The manual won’t hold your hand on tool selection, but it does specify that all tests must be done with a known‑good ground. That’s the kind of spec you need.

The broader Automotive Industry Overview confirms that OEM documentation is the only reliable source for CAN‑based systems like the 4C’s. And if you ever need to understand the twin‑clutch transmission logic, the Manual Transmission article on Wikipedia provides background, but the actual control unit programming is in this manual.

Does the manual cover the entire 4C electrical system?

Yes, it covers all eight control units, the junction unit fuse/relay assignments, and power distribution – 74 pages of factory data. It does not include complete wiring looms for the body, but every connector and power feed listed is from the OEM file.

Is this a printed book or a PDF format?

Digital access. You get the original 74‑page PDF – no reprints, no third‑party edits. Same file the dealer techs use.

If you’re tired of guessing which fuse feeds the DDCT pump (it’s F83, 40A – page 3), stop leaning on aftermarket garbage. Access the factory manual and work from the same specs Alfa Romeo uses. That’s the only way a smart tech touches a 4C electrical system.
