Agri-fab cub 10 cubic cart, 24″X 36″ LAWN ROLLER, H.D.-CART 17 CU.FT., H.D. BROADCAST SPREA, SPREADER 100# Parts Catalog

If you are trying to track down a replacement wheel for a cub 10 cubic cart or the feed slide for a SPREADER 100# and the aftermarket list gives you a number that doesn’t match, you are stuck. I have been there. This is the factory-issued Agri-fab cub 10 cubic cart, 24″X 36″ LAWN ROLLER, H.D.-CART 17 CU.FT., H.D. BROADCAST SPREA, SPREADER 100# Parts Catalog — 205 pages of genuine part numbers and descriptions straight from the line. No guesses.

Parts Breakdown: cub 10 cubic cart, 24″X 36″ LAWN ROLLER, H.D.-CART 17 CU.FT.

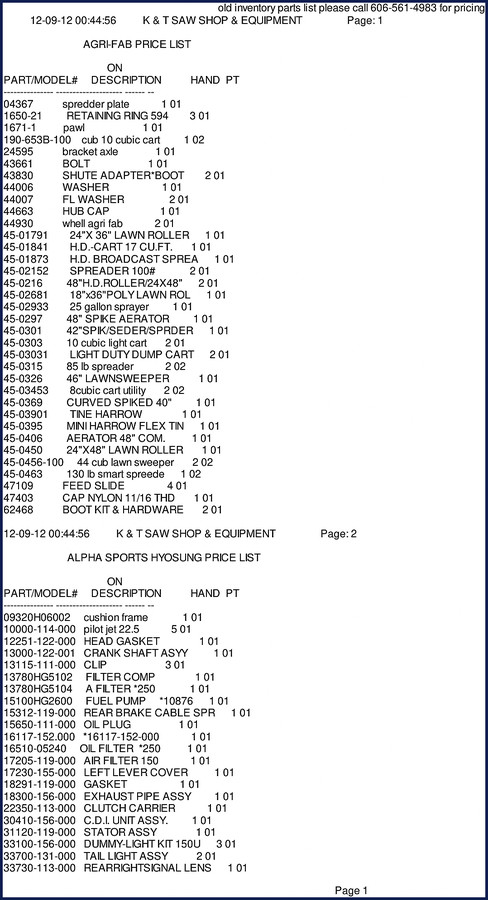

Page 1 of this catalog lists the core models covered. These include the 190-653B-100 for the cub 10 cubic cart, the 45-01791 for the 24″X 36″ LAWN ROLLER, the 45-01841 H.D.-CART 17 CU.FT., the 45-01873 H.D. BROADCAST SPREA, and the 45-02152 SPREADER 100#. Each entry shows the exact part numbers for components like spredder plate (04367), retaining ring (1650-21), pawl (1671-1), wheel (44930), and bracket axle (24595). You do not need to cross-reference with a generic diagram — it is all laid out by model.

How to Use the Price List Format

The catalog uses a straight price-list layout. Part numbers are listed alphanumerically, with a short description and a hand pointer (HT) column that indicates how many of that part come in a set. For example, part number 43830 (SHUTE ADAPTER*BOOT) shows a quantity of 2. That tells you the boot assembly takes two. Do not assume. Check the HT column. The top of each page also includes an old inventory contact number (606-561-4983) for pricing — this catalog is a snapshot, not a live inventory, so call before ordering if stock is an issue.

205 Pages of Factory Part Numbers

At 205 pages, this Parts Catalog covers more than just the main models. It also lists parts for the 45-0216 48″ H.D. ROLLER, 45-02681 18″x36″ POLY LAWN ROLLER, 45-02933 25 gallon sprayer, 45-0297 48″ SPIKE AERATOR, and others. Each page follows the same format. That consistency means less time flipping back and forth. Related manuals for other Agri-Fab equipment include: Agri-Fab 502492 8-HP Chip-N-Vac Owners Manual 2007, Agri-Fab 45-0346 40″ Spike Aerator Manual, and Agri-Fab 45-03451 2007 User Manual.

Cross-Referencing Parts for the SPREADER 100#

The SPREADER 100# (model 45-02152) appears on page 1 with a hand pointer of 2, meaning the list includes two line items for it. You will find part numbers like 47109 (FEED SLIDE) and 47403 (CAP NYLON 11/16 THD). If you are repairing a spreader, start with the model number, then look up the description. The catalog does not include exploded diagrams — it is a pure parts list. That is fine for ordering. But if you need assembly instructions, grab a separate service manual.

Why OEM Parts Catalogs Beat Generic Lists

Aftermarket parts lists often transpose digits or use incorrect descriptions. I have seen a 43661 BOLT called out as a 43651 in a third-party catalog — that bolt will not fit. This catalog comes from Agri-fab’s factory documentation, same as what dealers use. It is the same source used in the Automotive Industry Overview for understanding standard part numbering. The Automotive Industry Overview on Wikipedia explains why OEM numbering matters. Don’t trust a copy that someone typed by hand. This is the real list.

FAQ

What models are covered in this parts catalog?

The catalog covers the cub 10 cubic cart, 24″X 36″ LAWN ROLLER, H.D.-CART 17 CU.FT., H.D. BROADCAST SPREA, SPREADER 100#, and several others listed on page 1.

How do I find the correct part number for my spreader?

Locate the model number 45-02152 for the SPREADER 100# on page 1. Under it, the catalog lists individual part numbers like 47109 (FEED SLIDE) and 47403 (CAP NYLON 11/16 THD). Match the description to the part you have on the equipment. If the description says “FEED SLIDE” and your feeder slide is broken, order 47109. The list includes a hand pointer (HT) column showing quantity per assembly — pay attention to that. The catalog also includes a phone number at the top for pricing and stock verification. Because this is an old inventory list from K & T Saw Shop & Equipment, call them before assuming availability. That phone number is 606-561-4983. Keep it handy.

Do not waste another afternoon with mismatched hardware. Access the Factory Manual and keep the part numbers straight.
