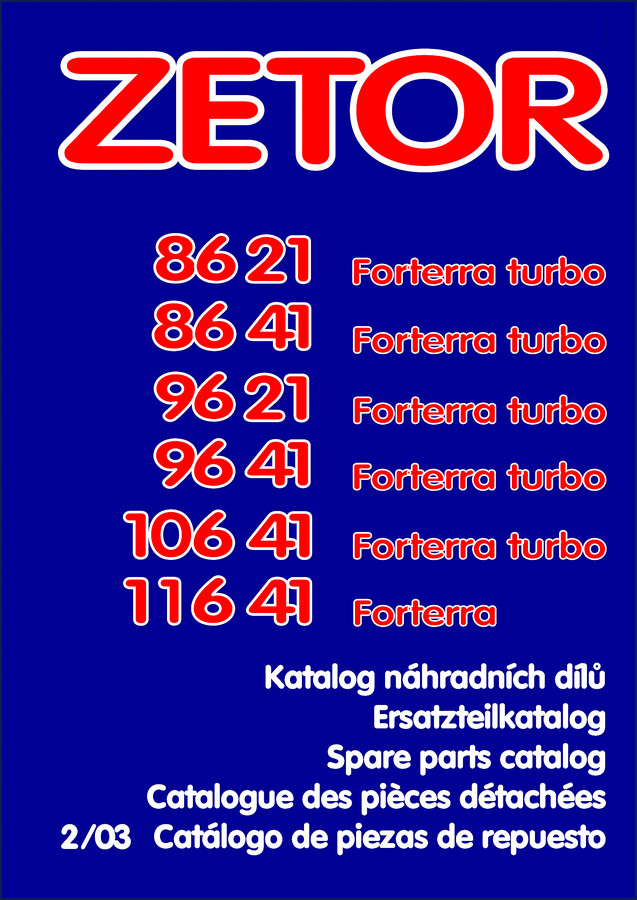

Zetor 8641, 9641, 10641, 8621, 9621 Parts Catalog – Direct from the Factory

If you are turning wrenches on a Zetor Forterra turbo—whether it is the 8621, 8641, 9621, 9641, or 10641—and you are tired of chasing aftermarket part numbers that do not fit, I get it. You need the factory breakdown. This is a 471-page Zetor 8641, 9641, 10641, 8621, 9621 Parts Catalog that comes straight from Zetor’s engineering files. Not a reprint of a reprint. Not a scan of a scan. It is the same document a dealer parts counter uses to order a crankshaft or an oil pump gasket. If you have ever bolted on a part that was “close enough” and watched it leak oil all over a fresh rebuild, you know why the factory catalog matters.

Every major assembly is exploded into numbered components. Need a piston ring set for the 10641? You find the exact Zetor part number, order it, and it fits. That kind of certainty saves a Saturday of rework. The manual covers the engine group, transmission, PTO shafts, front axle, and cooling system across all five models. I have rebuilt more diesel engines than I care to count, and I can tell you: guessing the crankshaft main bearing spec is how you end up with a block full of shrapnel.

Engine Group: Crankshaft to Oil Pump

Open to section 002 and you are looking at the crankcase (Kliková skříň). Section 003 gives you the crankshaft mechanism—rods, bearings, thrust washers. The exploded view on page 30 shows each snap ring location. Miss one, and the crank walks. I have seen it. Section 007 is the oil pump, section 009 the fuel supply system, and section 016 handles filtering and cooling of the engine oil. Every gasket, every seal, every bolt torque reference is tied to a factory part number. If you are rebuilding a Zetor 8641 head, section 005 (cylinder head) lists the valves, guides, and injector seals. For the 9621 turbo guys, section 022 covers turbocharging components and section 029 adds the intercooler circuit. You do not need to cross-reference a Chilton or a Haynes manual that skips the Zetor entirely. This is the real thing.

Transmission and PTO: Factory Part Numbers for Clutch Housing to PTO Shaft

Section 108 is the clutch housing. Section 121a is the gearbox—4+3 speed. Need the PTO shaft for 540 rpm? Section 131. For 1000 rpm? Section 132. The electrohydraulic control for the front and rear PTO is in section 137. If you are swapping a clutch on a 9641 and the release bearing does not seat, it is because the aftermarket catalog called for the wrong diameter. Use this catalog, order the Zetor part, and the bearing drops in. Section 153 and 154 cover the final drive housing—30 km/h and 40 km/h versions. Do not guess the axle seal part number between the two speeds. They are different. The catalog shows both.

Front Axle and Steering: Carraro Axle Breakdown

Section 172 is the front wheel drive axle—Carraro unit. This is the same axle used on many 4WD Zetors of this generation. The exploded diagram lists every bearing, seal, and gear inside that housing. If you have a leak at the kingpin or a growl from the differential, the part number is right there. I have had guys bring me a Zetor 10641 that was chewing through front axle seals because they used a universal seal from a bin. The factory catalog gives you the cross-section, the material, and the Zetor stock number. Stop guessing. Get the right seal.

Why OEM Beats Aftermarket Catalogs

Aftermarket parts catalogs take the Zetor drawing, copy it once, and lose the revision level. Then someone reprints it, and the torque spec for the cylinder head bolts is wrong by 10 ft-lb. I have seen it happen on a 9621. The head gasket blew 200 hours later. This catalog comes from the same PDF file Zetor released to dealers. The part numbers are the ones you hand the parts guy across the counter. No translation errors. No “supersedes” without the original number. For more context on why internal combustion engines demand factory spec documentation, see Internal Combustion Engine.

For related manuals, consider:
ZETOR Forterra Turbo Operator’s Manual 2/2004
ZETOR Forterra 8641-11741 Spare Parts Catalog
Zetor Super Parts Catalog – OEM 102-Page Tractor Parts Breakdown

Does This Catalog Replace a Service Repair Manual?

Does this parts catalog include torque specs and repair procedures?

No. This is a parts catalog. It gives exploded diagrams and part numbers. For torque specs and rebuild steps, you need the Zetor service manual.

Will it work for the Zetor 8621 non-turbo?

Yes. The 8621 and 8641 share the same crankcase, crankshaft mechanism, and most engine internal parts. The catalog covers both. If a part changed between turbo and non-turbo, the drawing notes it. For example, the pistons are different—the turbo 8641 uses a different crown shape. The catalog shows both part numbers separately.

Every section from group 002 to group 030 is there. 471 pages of factory data. If you want to order the correct oil pump for a 10641 or the correct release bearing for a 8621, this is the document you need. Stop ordering parts twice. Access the Factory Manual and get the part number right the first time.
