Yanmar YB101, B10 Parts Catalog – What the Factory Actually Printed

I get it. You’ve got a Yanmar crawler backhoe that’s been sitting because you ordered the wrong hydraulic fitting three times. Or you’re staring at a pile of bolts that are supposed to hold the boom together but nothing lines up. That’s the price of trusting aftermarket parts catalogs. This Yanmar YB101, B10 Parts Catalog – the real OEM print, not some scanned rehash – gives you exactly what Yanmar used on the assembly line. No guesswork, no returns.

What This Parts Catalog Actually Contains

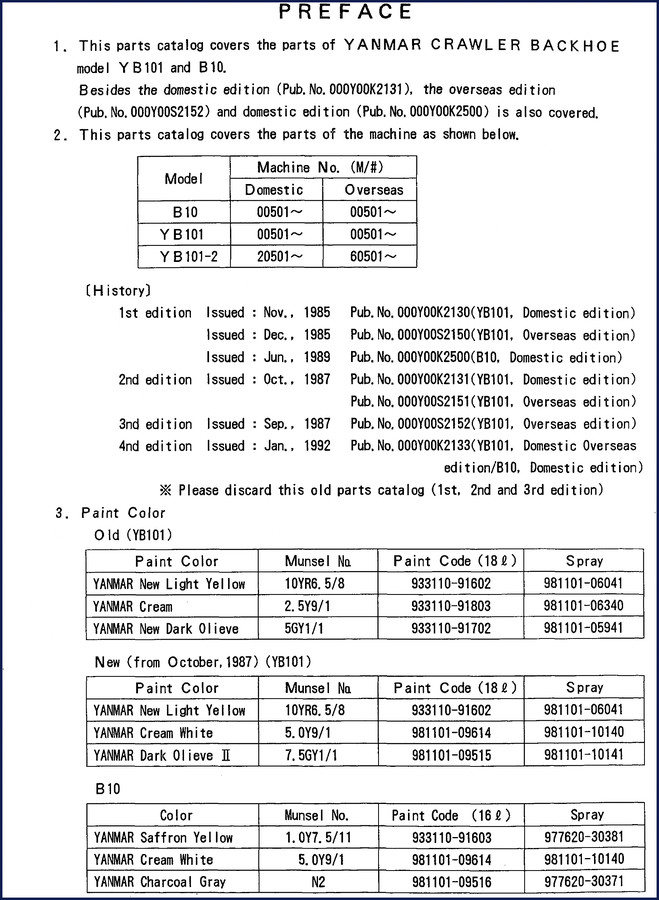

Open it and you hit the preface first. Page 1 lays out the paint color codes – YANMAR New Light Yellow, Cream, Dark Olive – with Munsell numbers and spray can part codes. If you’re restoring a YB101 or B10 to original color, that’s your reference. Then comes the SPECIFICATIONS section, giving you the machine numbers for both domestic and overseas editions. I’ve seen guys buy a B10 parts and wonder why the boom doesn’t fit – because they didn’t check the serial range. This catalog covers B10 from 00501 and YB101 from 00501 on. The PARTS NAME section is where you’ll spend your time: exploded diagrams with part numbers, not generic descriptions. And there’s a WIRING DIAGRAM at the back. On a backhoe that old, chasing a short without the factory diagram means replacing every harness. That’s time you don’t have.

Paint Codes and Country Variations

Yanmar didn’t use the same paint for every market. The catalog splits it into old YB101 (before October 1987), new YB101, and B10. Each has its own Munsell number and paint code. On page 1 you’ll see YANMAR New Light Yellow (10YR6.5/8) for all, but the cream changed from YANMAR Cream to Cream White. The B10 uses Saffron Yellow with Charcoal Gray. If you’re ordering spray paint, use the code from the right column – don’t walk into a paint shop without it. Page 2 explains how to read the country codes on each figure. Switzerland gets one fig, France another, Japan none. That level of detail keeps you from bolting on a part that was never intended for your region’s emissions or safety regs.

Wiring Diagram: Trace the Circuit

The wiring diagram section isn’t huge, but it’s factory-original. On a crawler backhoe that’s been field-repaired twenty times, you need to know which wire colors are original and which connectors Yanmar used. The catalog’s diagram shows you the harness routing and each connection point. If you’re troubleshooting a no-start or a dead lighting circuit, that diagram saves you from pulling a multimeter through a maze of aftermarket splices.

126 Pages of Factory Part Numbers

126 pages. That’s how many it takes to cover every bolt, seal, lever, and hydraulic line on the YB101 and B10. Each part comes with a figure number and a part number that matches what Yanmar shipped. I’ve torqued enough head bolts to know that using a substitute seal kit because you couldn’t find the OEM number means a comeback job in six months. This catalog stops that. Need a control lever for a B10? Flip to the figure, read the number, order it. The machine numbers in the preface line up with the parts – you don’t end up with a YB101-2 part on a first-gen YB101.

Aftermarket Catalogs vs. OEM: A Warning

Third-party parts books copy the diagrams but change the numbers. I’ve seen aftermarket catalogs that list a generic O-ring where Yanmar used a bonded seal. That leaks. This is the OEM publication – Yanmar printed it themselves. The preface even tells you which edition you’re holding: 1st through 4th, with a warning to discard old editions. That’s how serious they are about accuracy. If you’re a shop that does warranty work or a DIY guy who hates doing a job twice, don’t cheap out on the book. For other Yanmar crawler models, check the Ammann Yanmar B12 B17 Parts Catalog, the Yanmar Crawler Backhoe YB271 B27 Parts Catalog, and the YANMAR Crawler Backhoe Parts Catalog YB301/YB351 Series. Good resources for related machines. And if you want to understand why OEM documentation trumps aftermarket in general, read the Automotive Industry Overview on Wikipedia – it covers the standards behind factory service data.

Who Should Use This Catalog – And Who Should Not

DIY mechanics who are tired of guessing part numbers? Yes. Shop owners who want to reduce parts-desk callbacks? Yes. Beginners who think a parts catalog is the same as a repair manual? No. This is not a service manual – there are no torque specs, no oil capacities, no overhaul procedures. It’s a parts identification tool. If you need service data, get the factory service manual. But if you’re rebuilding a YB101 or B10 and you want to order exactly what the factory used, this catalog does that job better than any third-party list.

Frequently Asked Questions

Does this catalog include torque specs?

No. This is a parts catalog, not a service manual. For torque values you need the Yanmar service manual for the engine and undercarriage.

Can I use this to identify parts for my B10?

Yes, if your B10 serial number is 00501 or above. The catalog lists every part with figure numbers and part names. It also covers both domestic and overseas editions, so check the country abbreviation guide on page 2 to confirm which figure applies to your machine. I’ve used it to find a specific hydraulic control valve seal that no aftermarket book even listed. The exploded diagrams are clear, and the part numbers match what your Yanmar dealer will stock. Don’t show up at the parts counter without this – you’ll waste time and money.

Is this the same as the service manual?

No. This catalog covers only parts identification, specification sheets, paint codes, and a wiring diagram. It does not contain repair procedures, torque specs, fluid capacities, or diagnostic steps. Those are in the separate service manual.

Does it cover both YB101 and B10 models?

Yes. The catalog covers YB101 (domestic and overseas) and B10. Machine numbers for each are listed in the preface. The parts figures indicate which model they apply to.

If you own a Yanmar YB101 or B10 and need to order replacement parts without the runaround, this is the publication you put on your workbench. No aftermarket shortcuts, no reprints of reprints – just the factory document Yanmar issued to its dealers. Access the Factory Manual and keep your backhoe moving.
