Yanmar VIO40 C, VIO40 P 1994 Parts Catalog

Ever had a backhoe down for three days because the part number you ordered off some internet forum turned out to be for a different machine? I have. That’s why I tell every wrench I train: if you’re ordering parts for a Yanmar VIO40 C, VIO40 P 1994 Parts Catalog, get the factory book. This isn’t a service manual—it’s a parts catalog, 243 pages of exactly the numbers Yanmar stamped on every bolt, hose, and hydraulic seal. No aftermarket reprints, no scanned guesswork. This is the 1st edition from May 1994, covering VIO40 C (cabin) and VIO40 P (canopy) models built June 1993–June 1997.

Parts Catalog vs. Service Manual – Know the Difference

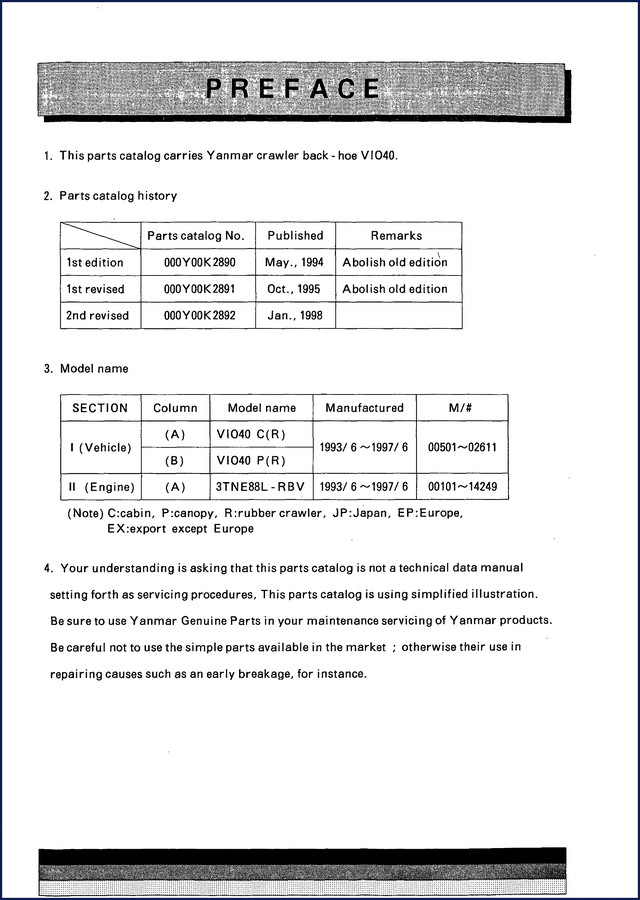

Let’s get this straight right now: this is NOT a repair manual. It doesn’t tell you how to rebuild the 3TNE88L-RBV engine or set valve clearances. What it does is give you every OEM part number—down to the last washer—so you can order the correct Yanmar Genuine Part. The preface on page 1 says it flat: “This parts catalog is not a technical data manual setting forth servicing procedures.” If you need step-by-step rebuild steps, go get the service manual. If you need to know which seal kit to buy for the swing motor, this book saves you the phone call.

Specs You Need to Order Correctly (Page 2)

Flip to page 2 and you get the full machine spec table. Here’s what matters for parts ordering: engine model is 3TNE88L-RBV, three-cylinder water-cooled diesel. Standard bucket capacity 0.11 m³, track shoe width either 370 mm or 400 mm (rubber crawler). Machine mass is 4000 kg for the canopy version, 4120 kg for the cabin. If you’re ordering undercarriage parts, the ground pressure numbers—0.27 kgf/cm² for rubber—tell you which track type is on the machine. That info is printed in brackets: [1840] for transport width with rubber crawler. Miss that bracket and you’ll get the wrong rail length. Happens all the time.

Paint Colors and Decals – Get the Right Shade

The catalog includes a painted color list (page 3 in the original, but you’ll find it in the section before the parts breakdown). Yanmar uses four specific greens and a gray: Ocean Green (Munsell 7.62BG3/8.09), Peacock Green (3.85BG5.31/9.15), Citrus Green (4.84G7.8/2.6), and Dark Olive Gray (5.39Y2.92/0.78). Color codes 98, 97, 96, and 72. If you’re restoring a machine or repainting a boom, these numbers are the only way to match factory finish. Aftermarket paint jobs using “close enough” greens look like junk when the customer parks next to a new Yanmar.

Why Aftermarket Parts Catalogs Fail

I’ve seen aftermarket “universal” parts lists that claim to cover this machine. They skip the revision history. The original catalog had three editions: May 1994, then revised October 1995, then January 1998. Each revision obsoleted the old edition—meaning part numbers changed. If you’re using a generic PDF from some access site, you don’t know which revision you have. This copy is the 1994 1st edition. It’s the one that matches machines built through mid-1997. If you’ve got a late-production machine, you need the 1998 revision. But for the vast majority of VIO40 C and VIO40 P units out there, this book is correct. Check the machine serial number: VIO40 C(R) from 00501 to 02611, VIO40 P(R) same range. Engine serial 00101 to 14249.

3 Reasons You Need This 1994 Reprint

First: genuine part numbers for every component—engine, hydraulic system, undercarriage, blade, cabin. Second: paint and decal specs to keep the resale value up. Third: the catalog tells you which parts are shared between the C and P models, so you don’t order a canopy part when you need a cabin part. There’s a note about using Yanmar Genuine Parts: “Be careful not to use the simple parts available in the market; otherwise their use in repairing causes such as an early breakage.” That’s not marketing fluff—that’s the difference between a seal that lasts 500 hours and one that blows out at 50.

Audience Fit – Who Needs This?

If you own a VIO40 C or VIO40 P and do your own maintenance, you need this catalog. If you run a shop and have customers with these machines, you need it on the shelf. Beginners: don’t try to match parts by eye. Use the exploded diagrams and part numbers in this book. The catalog uses simplified illustrations, but each exploded view is keyed to a numerical part list. I’ve had two junior techs try to order a hydraulic filter by measuring the thread—both got the wrong filter. The manual gives the part number; it’s that simple. For related machines, check out the Ammann Yanmar B12 B17 Parts Catalog”>Ammann Yanmar B12 B17 Parts Catalog and the Yanmar YB271, B27 1994 Parts Catalog – OEM Factory Specs”>Yanmar YB271, B27 1994 Parts Catalog – OEM Factory Specs for similar Genuine Parts data. Also the Yanmar YB301 YB351 1991 Parts Catalog – 248 Pages OEM”>Yanmar YB301 YB351 1991 Parts Catalog – 248 Pages OEM covers a related series.

Source Validity – This Is OEM, Not a Copy

This is a direct factory print from Yanmar, not a photocopy or a scanned PDF with missing pages. You get the full 243-page document with the original preface, spec tables, and parts illustration system. Aftermarket sellers often strip out the preface and paint color pages because they think nobody cares. That’s how you end up with a wrong color code or missing revision history. For context on why OEM documentation matters across the automotive industry, read the Automotive Industry Overview on Wikipedia. It discusses how manufacturers standardize parts numbering and service information. Also worth reading the Automotive Industry Overview for background on why aftermarket data often falls short.

Frequently Asked Questions

Will this catalog give me the part number for a 3TNE88L-RBV injector?

Yes. The engine section lists every part for that engine, including injectors, nozzles, and delivery valves. Look under Section II (Engine) for the complete exploded view.

Is this the same as a service manual?

No. This is a parts catalog only. It shows exploded diagrams and part numbers. It does not contain repair procedures, torque specs, or troubleshooting steps.

Does it cover both rubber crawler and steel track versions?

Yes. The spec table shows dimensions for rubber crawler in brackets. The parts lists include separate part numbers for rubber and steel undercarriage components.

What if my machine serial number is outside the range listed?

The catalog covers VIO40 C(R) serial 00501–02611 and VIO40 P(R) serial same, built 1993/6 to 1997/6. If your machine is outside that range, you need the 1998 revised edition. Check the serial plate on the frame.

Get the right part the first time. Stop burning billable hours on wrong orders. Access the Factory Manual and keep it on your workbench.
