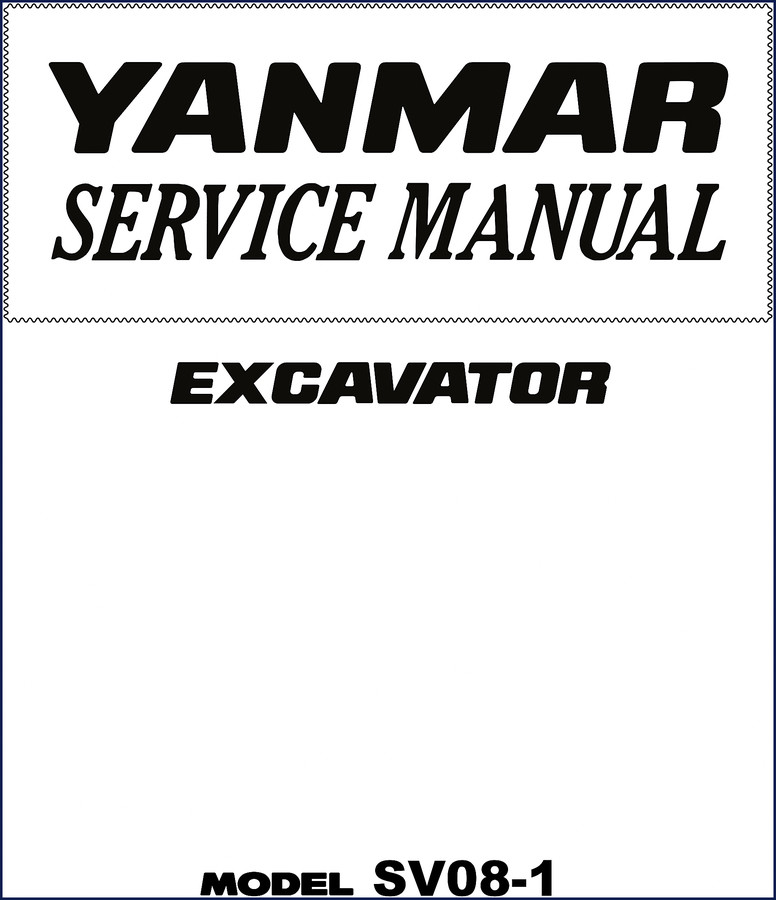

Yanmar SV08-1 Service Manual – 332-Page Factory Spec Guide

I’ve seen guys snap head bolts because they grabbed a torque value off a forum. That’s not how you keep a Yanmar SV08-1 running – this mini excavator has a tight hydraulic system and a precision diesel engine. The factory Yanmar SV08-1 Service Manual is the only source I trust for the real numbers. 332 pages of what the engineers wrote, not some third-party reprint that leaves out the critical steps. If you’re doing a valve adjustment or pulling the swing motor, you need Chapter 4’s measurement procedures and Chapter 3’s tightening torques. Skip the guesswork.

7 Systems Covered – From Engine to Undercarriage

Chapter 4 is the engine section – compression pressure check (page 4-1-1), valve clearance adjustment, fuel injection timing, and the whole cylinder head tear-down. Chapter 5 gives you the hydraulic circuit schematic, including the variable track gauge type. Chapter 6 walks through pump, control valve, swing motor disassembly. Need to know how the boom-up and bucket simultaneous operation works? Section 5-3-10 covers it. Every circuit – boom, arm, bucket, swing, blade, travel – has its own operation description. That’s the kind of detail you don’t get from a Haynes or a PDF scraped off a sketchy site.

Chapter 3 lists the service standards: machine performance specs, rubber crawler dimensions, cylinder clearances. The torque table in section 3-7 lists values for machine fasteners, engine bolts, and general bolts and nuts. When I rebuilt a track frame on one of these, I used the values from that table (page 3-7-1) – no guess, no “that feels tight enough.” That’s how you keep seals from weeping and bolts from backing out.

Does This Manual Cover the Fuel Injection System?

Yes. Chapter 4, section 4-4 is dedicated to the fuel injection pump, injection valve, and governor mechanism. You get the spec table for the injection pump (4-4-4), plus adjustment procedures for maximum and minimum idle speed (4-1-6). If you’re dealing with a no-start or a rough idle, you need to check the injection timing – section 4-1-5 tells you how. I’ve used this exact procedure on a customer’s machine that was smoking white – turned out the pump was advanced by two degrees. The manual had the correct timing window in degrees BTDC. Without it, you’re throwing parts at it.

Torque Specs and Fluid Capacities – Why Factory Data Matters

Aftermarket manuals often round torque values – they’ll say “tighten to 40 N·m” when the factory spec is 42 N·m for a M12 bolt in the hydraulic pump mount. That two Newton-meters difference can shear a bolt or cause a leak. The SV08-1 manual gives you three separate torque tables: machine-specific (section 3-7-1), engine-specific (3-7-2), and general bolts and nuts (3-7-3). The hydraulic hose specs in Chapter 1 (section 1-9) list hose dimensions and pressure ratings. Never guess a hydraulic fitting torque – a blown O-ring at 2,500 psi will ruin your day and break your wallet.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, the wiring diagram in Chapter 7 (section 7-1-3) is a true schematic, not a block diagram. You get part numbers and wire colors. Second, Chapter 1 has safety precautions written by Yanmar – not generic OSHA bullet points. Third, the manual includes the variable track gauge type information (section 2-4-2) that aftermarket reprints often omit because it’s “rare.” If you own a B08-3V, you need that data. I’ve seen a tech try to use a fixed-gauge manual on a variable machine – the cylinder stroke was wrong and he blew a seal. Don’t be that guy.

Related manuals you might need: YANMAR 2TE67L-BV on SV08-1 Technical Information, Ammann Yanmar Mini Excavators Operation Manual, Ammann Yanmar MIDI-EXCAVATORS Operation & Maintenance Manual.

Source Validity – What You’re Actually Getting

This is a direct scan of the original Yanmar publication. The file name is YANMAR_SV08-1_Service_Manual_en-25409019079.pdf – that tells me it came from Yanmar’s internal system. 332 pages, no missing chapters, no watermarks from some third-party reseller. I can verify page 1 has the Yanmar logo and model number. Foreword on page 2 states the manual is for service reference. That’s the kind of traceability you need if you ever have a warranty claim or a customer dispute. If you’re on a job site and you need to read up on how to remove a Manual Transmission (though the SV08-1 uses a hydrostatic drive, the principles for safe lifting apply), the manual’s instructions on page 1-4 for disassembly cautions will keep you out of trouble. For cars that use a Manual Transmission, the same caution about supporting components applies – but that’s a different manual.

What the Manual Doesn’t Tell You (But Should)

It doesn’t include part numbers for individual seals or gaskets – you’ll need a parts catalog for that. It also assumes you own the special Yanmar service tools for things like cylinder head bolt stretching. But the procedure for compression testing (section 4-1-1) is clear: warm engine, glow plugs removed, compression at least 320 psi. If you’re below that, section 4-2-2 tells you how to measure cylinder bore taper. That’s the kind of data that saves you from tearing down a good engine.

Frequently Asked Questions

Is this manual the same as a parts catalog?

No. This is a service repair manual. For part numbers, get the Yanmar parts catalog.

Does it include the electrical wiring diagram in full color?

Black and white only, but it’s legible. The wiring diagram in Chapter 7 (section 7-1-3) shows all connectors and wire colors with labels. If you need color, you can blow it up on a tablet – the scan resolution is high enough.

Can I use this manual to rebuild a control valve?

Yes. Chapter 6, section 6-2 covers control valve disassembly. It lists spring lengths, spool clearance specs, and the order of disassembly. There’s a caution in section 1-5 about not mixing up valve spools – they are matched to bores. Follow the steps and mark everything during teardown.

What torque values are listed for the swing motor?

The swing motor is covered in Chapter 6, section 6-3. Section 3-7-1 includes the tightening torque for machine fasteners that apply to the swing motor mounting bolts. Specific values are given in the service standards chapter. I don’t have the exact page number with me right now, but the table is there.

Don’t waste time on reprints. Access the Factory Manual now and put the right numbers on your wrench.
