Yanmar B7-SIGMA 2003 Operators Manual

If you’re operating a B7-SIGMA without this manual in the toolbox, you’re borrowing trouble. I’ve seen too many guys skip the wheel stoppers on a trailer ramp because they thought they knew better. That’s how you get a 10-ton excavator in the shop with a bent frame and a lawsuit. The factory Yanmar B7-SIGMA 2003 Operators Manual—222 pages of OEM content—puts the correct procedure in front of you before you touch the controls.

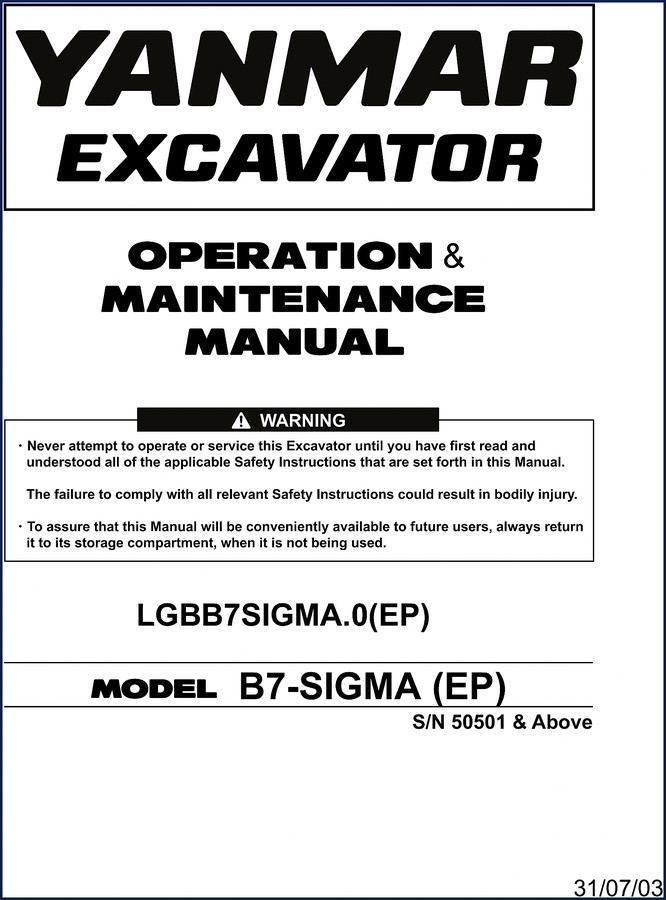

Page 1 carries a warning I wish more people would read: never operate or service this excavator without first understanding all safety instructions in this manual. Failure to follow those steps can cause bodily injury. That’s not lawyer talk—that’s real-world consequence. The manual lives in its storage compartment for a reason.

Loading and Unloading: Don’t Skip the Wheel Stoppers

Chapter 14 opens with loading and unloading the machine—page 14-1 in the PDF. First step: firmly brake the truck and apply wheel stoppers. Then secure the ramp plates. You reduce engine speed with the accelerator lever before traveling at low speed onto the ramp. After loading, you extend bucket and arm cylinders to max, then slowly lower the boom onto blocks. Stop the engine, pull the starter switch key—the automatic brake engages. Lock the control levers with the lock lever. Finally, wood blocks front and back of the crawlers and chain the machine down. Miss one step and you’re asking for a rollover.

Precautions for Transport – What You’re Not Thinking About

Transporting an excavator means more than just chaining it. The manual covers tying down the blade, securing the boom, and verifying the automatic brake holds. Watered-down aftermarket versions skip these details. This OEM version tells you exactly how to position the blade on the truck bed and why the engine must be off before you walk away. If you’re moving a B7-SIGMA between jobs, you need this section open on the passenger seat.

Suspending the Machine: Rigging Points Matter

Suspension work? The manual shows you where to put slingbelts or wire ropes. Swing the upperstructure so the blade is behind the operator’s seat. Raise the blade to max. Extend all front implement cylinders except the boom swing cylinder. Stop the engine, check nothing’s around the seat. Then run the slingbelt through the figure in the manual and install splints where the belt touches. Suspend slowly, wait for stability. I’ve seen cranes drop loads because someone guessed the sling point. The factory drawing on page 14-4 eliminates that guesswork.

Brake System and Engine Shutdown Protocol

The automatic brake activates when you take the starter key out. That’s covered in the loading section. The manual also walks you through daily brake checks—something operators forget until they’re rolling downhill. The engine shutdown procedure isn’t just “turn the key” — it includes returning the accelerator lever to low idle, letting the turbo cool, then stopping. That’s how you avoid cooked turbos and seized brakes. Aftermarket manuals often treat this as an afterthought. Yanmar’s own documentation treats it as a mandatory sequence.

Why OEM Manuals Beat Aftermarket Reprints

I’ve had techs bring me bound copies from third-party publishers. The torque values are rounded off. The wiring diagrams are redrawn and missing a pin. This Yanmar B7-SIGMA 2003 Operators Manual comes straight from the factory—222 pages scanned from the original LGBB7SIGMA.0(EP) print. Every spec is metric as delivered. You get the actual safety decals, the serial number reference pages, and warranty conditions that protect you if the dealer asks questions. If you want related manuals, check the Ammann Yanmar ViO17, ViO20-3, ViO25-3, ViO30/35-3, ViO50U 2008 Operators Manual or the Ammann Yanmar SV15 SV17 SV17EX 2006 Operators Manual – Factory Specs. For smaller tractors, the Yanmar YM195, YM195D, YM240, YM240D Operators Manual – OEM Specs covers similar operation principles. Externally, you can compare transmission safety with Manual Transmission practice or Manual Transmission best practices.

Audience: Who Should Own This Manual

If you run a B7-SIGMA on a jobsite, this is your daily reference. If you’re a home-garage enthusiast who bought a used excavator for land work, you need this to avoid wrecking the machine on the first transport. Beginners should read the introduction on page 5 before starting the engine—it explains right-hand/left-hand orientation by forward travel direction and warns against modified performance settings that void the warranty. Professionals use it to train new operators and to back up their service claims with factory data.

Does this manual include torque specs?

No. This is an operator and maintenance manual, not a service manual. Torque values for major assemblies are referenced in the service manual. What you get here are the correct operating sequences, safety checks, and fluid capacities.

How is the brake system covered?

The automatic brake is covered in loading/unloading steps and daily inspection procedures. You’ll find the exact sequence for engine-off brake engagement and how to verify it holds before chaining down.

Is this the same as a service manual?

No. A service manual covers disassembly and rebuild. This operators manual focuses on safe operation, daily maintenance, and transport. You need both if you’re doing major repairs.

Can I use this to set up transport on a flatbed?

Yes. Chapter 14 gives you the complete ramp, chaining, and suspension procedure. It’s the same process used by Yanmar dealer technicians. Follow the wheel stopper, brake, and lock lever steps and you’ll pass any inspection.

Stop relying on photocopied cheat sheets or half-remembered advice. The factory wrote this 222-page manual for one reason—to keep you and the machine safe. Access the Factory Manual from AutoRepairManuals and put it in the glovebox where it belongs.
