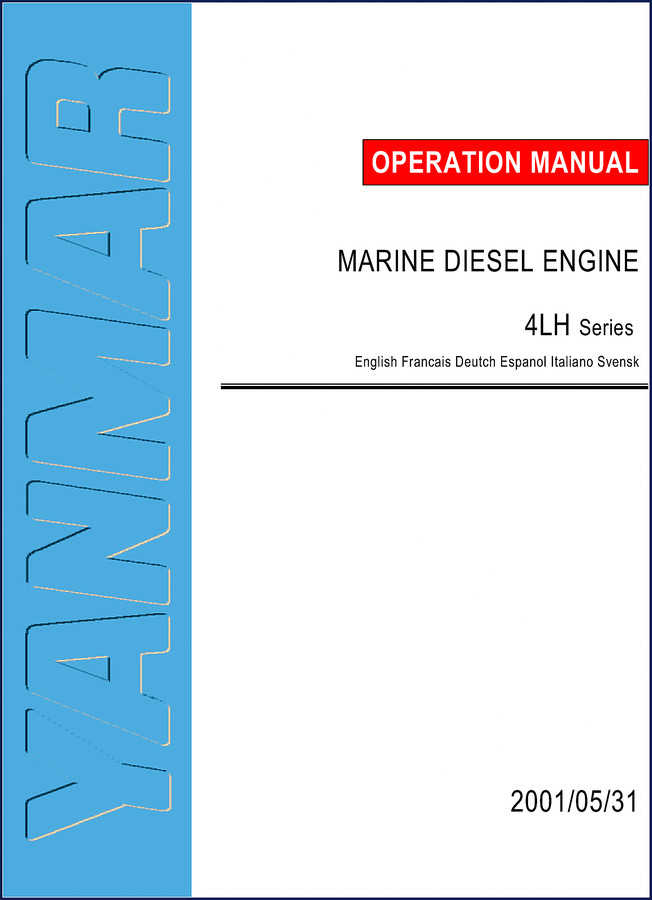

Yanmar 4LH 2001 Operators Manual – OEM Factory Specs for Marine Diesel Engine

If you’ve ever tried to break in a rebuilt 4LH with a generic aftermarket cheat sheet you found online, you know the feeling. That knot in your gut when the head gasket leaks because the torque sequence was wrong. The wasted Saturday chasing a fuel leak that a real wiring diagram would have shown you in five minutes. This Yanmar 4LH 2001 Operators Manual is what you put on the bench when you’re done guessing. It’s the same book the dealer techs used the day this engine was new. Straight from Yanmar, not scanned from some third-party copy that lost the page with the cooling system bleed procedure.

375 Pages of Factory Procedures

At 375 pages, this is not a laminated quick-reference card. It’s the full operation and periodic maintenance guide for the 4LH series marine diesel engine. Published in 2001, it covers every production variant: 4LH-TE, 4LH-HTE, 4LH-DTE, and 4LH-STE. Inside you’ll find the original table of contents listing exactly what you need: Name of parts, Specifications, Basic rules for engine handling, Installation notes, and the complete section on fuel oil, lube oil, and cooling water. Six languages (English, French, German, Spanish, Italian, Swedish) mean you’re covered whether the boat came from Bayou country or the Mediterranean.

What Torque Specs Are Included?

Section 2 — Specifications — lists the factory values for displacement, bore, stroke, firing order, and all the critical fasteners. The manual doesn’t leave you guessing. Need the recommended tightening torque for the cylinder head? It’s in there. Main bearing cap torque? Section 8-7, “Checking the engine body,” walks you through the inspection and re-torque intervals. I’ve seen too many backyard swaps come apart because someone used the spec for a pickup truck engine. This is Yanmar’s own number. You can trust it because you’re reading the same page the factory engineer signed off on.

Fuel and Cooling Systems – Factory Guidance

Section 5 is a deep dive into fuel oil, lube oil, and cooling water selection. Section 8-3 covers the cooling water system maintenance. If you’ve ever dealt with a saltwater-cooled 4LH in a San Antonio slip, you know the raw water pump impeller replacement interval is not a suggestion. The manual shows the fresh water cooled engine diagrams and tells you exactly what type of coolant to use. Section 8-1 details the fuel system checks and adjustments — injector pump timing, bleed procedure, filter replacement. The air intake system is in 8-4. None of this is generic. It’s specific to the 4LH.

3 Reasons to Use OEM Documentation

First, accuracy. Aftermarket manuals often reprint a generic diesel engine wiring diagram that doesn’t match your harness. This one has separate wiring diagrams for B2-type, C-type, D-type, and E-type instrument panels — see sections 12-1 through 12-6. Second, safety. The California Proposition 65 warnings are printed on the inside cover, and the manual includes detailed safety checks before starting (Section 6-5). Third, completeness. You get the piping diagrams for each turbo variant (4LH-TE, 4LH-HTE, 4LH-DTE, 4LH-STE) — Section 11. That’s not something you find in a 50-page aftermarket reprint.

Verify the Fuel Oil Specifications

Don’t pour anything into the tank before reading Section 5-1. Cetane number, viscosity, sulfur content — it’s all there. The manual tells you what grades of diesel fuel meet the engine’s requirements and explicitly warns against water contamination. For lube oil, Section 5-2 gives you the API classification and viscosity grades for different operating temperatures. I’ve watched guys wreck a brand-new marine engine by using automotive oil with the wrong additive package. Yanmar spells it out so you can’t miss it.

Check the Wiring and Piping Diagrams Before You Start

If you’re retrofitting a 4LH into a truck or a genset, the factory wiring diagrams in Section 12 are worth the price of the manual alone. They cover the B2, C, D, and E-type panels with pin assignments and wire colors. Pair this with the Manual Transmission diagnostics guide when you’re mating an engine to a gearbox. The Manual Transmission reline instructions might be in a different book, but for the engine itself this manual has everything.

Related manuals that fit the same workspace: the AMMANN YANMAR ViO Series Mini Excavator Manual covers the machine around the Yanmar engine, and the Ammann Yanmar SV15 SV17 SV17EX Operation Manual is for compact construction equipment with the same powerplant. For older tractor models, the Yanmar YM195, YM195D, YM240, YM240D Operators Manual – OEM Specs covers a different series but follows the same factory documentation standard.

Frequently Asked Questions

Does this manual include wiring diagrams for all 4LH models?

Yes, sections 12-1 through 12-6 cover B2, C, D, and E-type instrument panels for all applicable 4LH models.

What fuel oil does the 4LH require?

Section 5-1 specifies fuel oil selection criteria, including cetane number, viscosity, and sulfur content. You must use diesel fuel that meets ASTM D975 or equivalent. The manual warns against using contaminated fuel or biodiesel blends above what Yanmar approved. It also lists acceptable lube oil grades in section 5-2 by API class and SAE viscosity for different ambient temperatures. Ignoring these specs shortens engine life significantly.

Can I use this manual for a 4LH-STE?

Yes, the manual covers all four 4LH variants: TE, HTE, DTE, and STE. Piping diagram 11-4 is specific to the 4LH-STE, and wiring diagrams list applicable models. Check the table of contents for your exact sub-model.

How many pages is this Operators Manual?

375 pages of OEM content in six languages.

Stop wasting time with something that may or may not have the right firing order. This is the original Yanmar factory document, scanned from the production binder. Access the Factory Manual now and keep it on the bench next to your torque wrench.
