Yale MTC15, MTC18, NTA040DA, NTA040SA, MTC10 2002 Technical Manual

If you work on Yale forklifts, you know the difference between a factory spec and a third-party approximation. Yale MTC15, MTC18, NTA040DA, NTA040SA, MTC10 2002 Technical Manual is the real thing. 312 pages, OEM part number 272350000, dated Jan. 2002. This manual goes to Yale service centers directly. I’ve been turning wrenches since before some of you were born, and I can tell you that having the factory book on your bench separates a repair from a guess. The OCR excerpt alone shows page 2 with service warnings you should memorize: disconnect the battery before any cleaning, no flames near flammable materials, use lifting eyes for heavy parts. That’s not fluff – that’s how you keep your hands.

Electrical System: Factory Wiring and PLC Diagnostics

Page 73 in the Electrical System chapter covers the exact pinouts for the MTC15 and MTC18 control units. The manual includes Truck Functions & PLC diagnostics – not generic diagrams, but Yale’s own logic for the built-in PLC that controls auto slow-down, stop, and bilateral equipment. If you’re chasing an intermittent fault on an NTA040DA, you need the OEM wire colors and connector views. Aftermarket books skip that detail. I’ve seen guys spend three hours tracing a short that the factory chart solves in twenty minutes.

Transmission Section – What’s Really In There

The Transmission chapter (starting after Braking System) covers both hydrostatic and gear-type units used on the MTC10 and MTC18. It lists approved fluids, shift pressures, and mechanical adjustments. Need to rebuild the trans on an NTA040SA? The manual gives you the sequence and shim specs. Don’t rely on a YouTube video – get the factory procedure. For more on transmission fundamentals, check Manual Transmission or Manual Transmission for external reference, but this manual is your primary source for the Yale specific data.

Does This Manual Cover Hydraulics and Mast?

It does – and it goes deeper than most. The Hydraulic System section covers pump flow, relief valve settings, and cylinder rebuild. The Attachment and Mast chapters give you the mast rail gap specs and carriage dimensions. If you’re swapping a mast from an MTC15 onto an MTC18, the page on bilateral equipment tells you which brackets and hoses differ. That kind of information saves you a trip to the parts counter and a wrong order.

7 Systems Documented in 312 Pages

Look at the TOC: Index, Introduction, Installation, Electrical System, Truck Functions & PLC, Diagnostics, Auto Slow Down / Stop, Hydraulic System, Attachment, Mast, Bilateral Equipment, Wheels, Braking System, Transmission. That’s fourteen chapters covering every major system. No generic theory – each section starts with a required tool list and safety warnings specific to that job. The manual even tells you what lifting device capacity to use for the mast assembly. That’s the level of detail I expect from an OEM publication.

Get the Real Torque Specs – Not Aftermarket Guesses

Torque values in this manual are called out in ft-lbs and N·m with the bolt grade and thread size. The Braking System section lists caliper bolt torque and pad clearance. The Wheels chapter gives you hub nut torque and proper tightening sequence. If you use a generic chart, you risk stretching bolts or getting improper preload. This manual also includes the factory update table (page 2 note: Part No. 272350000 UPDATE) so you know which revisions have been incorporated. Don’t skip that – it’s the difference between a leak-free assembly and a come-back.

Pair this manual with the parts catalogs for full support: Yale MTC1380 MTC15 NTA035SB Parts Catalog for older models, Yale MTC18 NTA040DA Parts Catalog for the bigger chassis, and Yale MTC15 NTA040SA Parts Catalog for the stand-up rider variants. The tech manual alone gives you the procedures; the parts catalog gives you the part numbers. Together they’re unbeatable.

FAQ

Is this manual for US models or European?

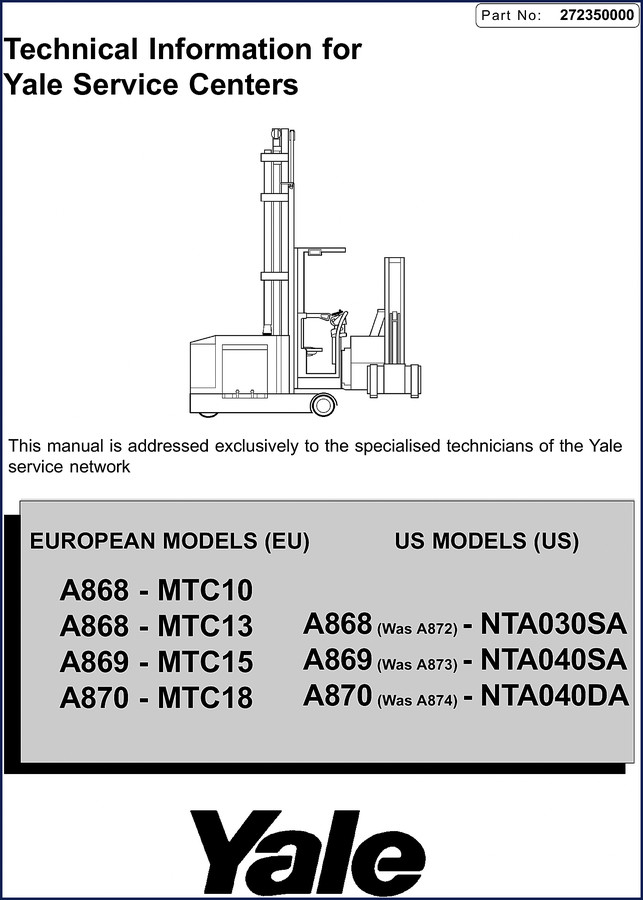

Both. The cover says “EUROPEAN MODELS (EU) / US MODELS (US)”. Wiring diagrams include both 48V and 80V systems common in North America.

What year and how many pages?

2002, 312 pages.

Does it include torque specs for the transmission?

Yes. The Transmission chapter has bolt torque values for the housing, valve body, and output flange. It also lists fluid capacities in quarts. You don’t have to guess – it’s printed.

Can a home mechanic use this manual without factory scan tools?

Most diagnostics are covered with a multimeter and basic hand tools. The PLC section includes fault code tables and voltage checks. You don’t need a dealer laptop for the common codes. But you do need to follow the safety warnings – especially the battery disconnection rule on page 2. Ignore that and you’ll be buying a new controller.

Access the Factory Manual now and keep it in your shop. I’ve got three of these on my tablet and one printed copy in the toolbox drawer. They don’t wear out, and they never guess.
