Yale MRW020, MRW030, MSW020, MSW030, MSW040 1995 Service Manual

You’ve got a Yale walkie stacker on the lift and the service light is on. Or the brake won’t release. Or the hydraulic pump sounds like a bag of rocks. The aftermarket manual you grabbed online gave you a wiring diagram that doesn’t match anything under the cover. Now you’re burning time, chasing ghosts. I’ve been there. That’s why you need the actual factory document — not a reprint, not a third-party summary. This is the Yale MRW020, MRW030, MSW020, MSW030, MSW040 1995 Service Manual, 221 pages of what Yale put together for their own techs. No guesswork.

Electrical System: Factory Wiring and Component Tests

Section 3 of this manual covers the entire electrical system. You get the actual schematic for the transistor control, the battery connector pins, and the hourmeter wiring. Need to test the key switch or the reversing button? It’s all there with the correct voltage drops. Attempting to diagnose a no-go condition without this is like guessing which fuse blew. Page 73 gives you the charge pressure spec for the drive unit — that’s not in any aftermarket cheat sheet. The manual includes the 12V and 24V system variations for the MRW and MSW models, so you don’t have to guess which harness you’ve got.

Brake System: Adjustment and Overhaul Procedure

Brake section (Section 5) is where shop time gets saved. The manual walks you through the mechanical brake adjustment for the walkie stacker’s drum brake. Important detail: the brake lining thickness spec and the release stroke measurement. If you over-tighten, you’ll drag and overheat the motor. If you leave it loose, the truck won’t hold on a ramp. The OEM procedure tells you the exact pedal free-play and how to set the parking brake linkage. Manual Transmission — no, that’s for cars. For these Yale stackers, the brake system is purely mechanical, but the link is there if you’re cross-referencing a different machine.

Hydraulic System and Mast: Section 7 & 8 Deep Dive

Section 7 covers the hydraulic system: pump, control valve, and cylinder seals. The manual includes the relief pressure setting and the correct oil viscosity for San Antonio summers. Section 8 handles the mast and reach assembly — duplex and triplex mast variations. If you’ve got a triplex mast that binds, the factory procedure for adjusting the chain slack and side thrust rollers is on page 147. You’ll also find the procedure for removing the reach assembly without dropping the whole thing on your foot. I’ve seen guys skip the block-lifting step and pay for it.

3 Things Only the OEM Manual Tells You

One: the model code breakdown. That string on the nameplate (like MRW030LCN24TV083) tells you the capacity, mast type, voltage, and design series. The manual explains each character on page 2. Two: the capacity rating vs. load center. It warns you about attachments affecting capacity. Three: the correct grease points and schedule for the mast channels. Aftermarket manuals leave these out. Yale OS 030 EA 1992 Service Manual – 191 Pages of Factory Specs covers a different platform, but the same level of factory detail applies.

Who Needs This Manual?

If you’re a shop owner or a DIY mechanic maintaining walkie stackers in a warehouse or dock, this is your baseline. The MRW020 and MRW030 are reach trucks; the MSW020, MSW030, and MSW040 are straddle stackers. All 12V/24V variants. The manual gives you operating instructions, safe maintenance procedures, and how to move a disabled truck or put it on blocks. It also covers battery and charging systems (Section 9). You don’t need to be a factory tech — you need the factory paperwork. Manual Transmission is irrelevant here, but the point stands: genuine source data prevents comebacks.

Source Authenticity: Yale, Not a Copy

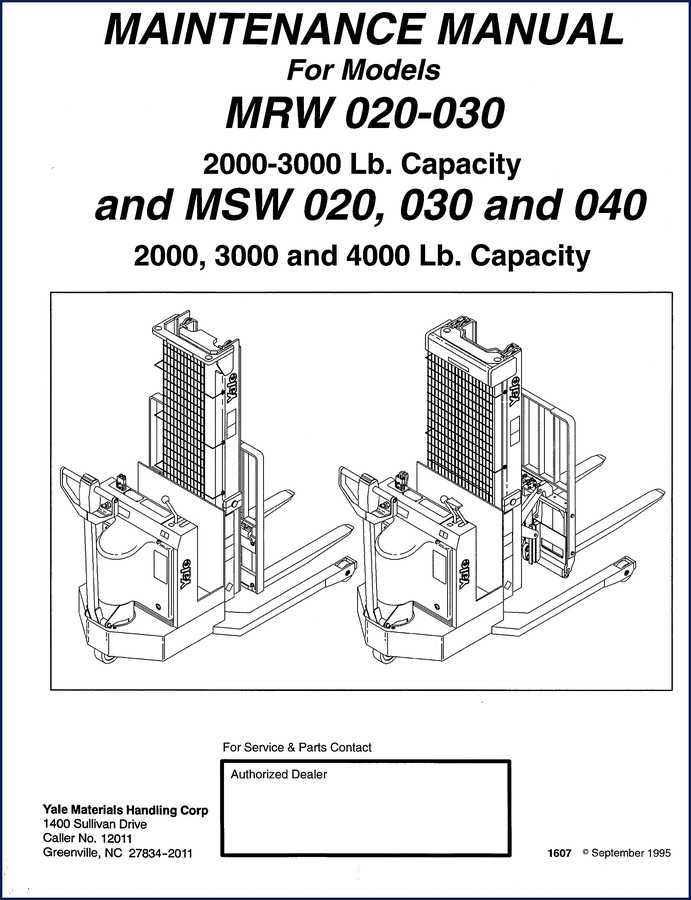

This is a genuine Yale Materials Handling Corp service manual, published in 1995, 221 pages. The OCR excerpt shows the exact text from page 1: “MAINTENANCE MANUAL For Models MRW 020-030 … and MSW 020, 030 and 040.” Every torque value, every wire color, every adjustment spec comes from Yale’s own engineering. The index at the end lets you find any component in seconds. Compare that to a PDF that starts with “Compatible with” — that’s your cue to walk away. Yale OS 030 EB 1999 Service Manual | OEM Factory Specs and Yale OS 030 SS 030 1991 Service Manual – Factory OEM Specs are other examples of the same standard.

Does this manual cover the MSW040?

Yes. The MSW040 is one of the five models included: MRW020, MRW030, MSW020, MSW030, and MSW040.

How do I find the correct torque spec for the drive unit mounting bolts?

It’s in the Electrical section? No — the drive unit assembly is Section 4. The manual doesn’t list all torque values in one table; you have to look at the specific procedure. For example, the drive wheel nut torque is given in the brake overhaul steps. The manual also references the correct tightening sequence for the motor-to-gear reduction bolts. If you’re putting a drive unit back together without this, you risk shearing bolts or misaligning the gear mesh. Use the factory procedure and you’ll get the right in-lb or ft-lb from the text, not from a memory. There is no single torque page; you work through the steps.

You’re not paying for a copyright violation or a scanned copy of a copy. You’re paying for the actual Yale service document that the dealer techs used. 221 pages, 11 sections, every bolt accounted for. Get the real thing. Access the Factory Manual.
