Yale MPW045DA 2001 Service Manual – Factory OEM Specs

If you are wrenching on a Yale MPW045DA walk pallet truck and do not have the factory manual, you are working blind. I have seen too many guys snap bolts in drive units or fry controllers because they guessed the wiring or used aftermarket specs that were off by 10 ft-lbs. This Service Manual from 2001 is what Yale technicians used. It runs 91 pages and covers everything from operator pre-checks to full electrical troubleshooting. No fluff, no reprints – just the real data.

Yale MPW045DA 2001 Service Manual: Electrical System Details

Section 3 is the Electrical system. It includes wiring diagrams for the 12-volt transistor control board, motor connections, and the emergency disconnect. On page 1-2 you get the safety and information labels – critical for identifying correct wire colors before you touch anything. The manual walks you through voltage checks at the controller and load wheel sensors. If you rely on a generic schematic, you will chase ghosts. This is the Yale factory print.

What Torque Specifications Are Given?

The manual lists torque values for drive unit bolts, load wheel nuts, and hydraulic pump mounting. These are not “hand tight” numbers – they are foot-pounds with allowable ranges. The safety and operational checklist on page 1-4 reminds you to torque the wheel nuts after every wheel change. Ignore that and you risk a loose wheel at 4,500 lbs capacity. Not a gamble you want to take.

3 Key Sections for a Walk Pallet Truck

Besides the electrical, you need the hydraulic system (Section 5) for the pump and control valve procedures, and the drive unit (Section 4) for the traction motor and gearbox. Section 2 covers general truck lubrication – the correct grease points and oil viscosities. Each section starts with a required tool list and safety warnings. The battery charging section (Section 6) is separate because the MPW045DA uses a specific 12-volt transistor control that demands exact charging voltage.

Get the Lubrication Schedule Right

Section 2 lists the lubrication intervals based on operating hours. It specifies the grease type for the drive unit bearings and the hydraulic oil viscosity for different ambient temperatures. Using the wrong grease can cause premature bearing failure within 200 hours. The manual also covers the battery storage precautions on page 1-6 – not generic advice, but specific to the sealed lead-acid batteries used in this model.

Safety Checklist: What the Manual Covers

Operator pre-checks and inspection (page 1-2) include brake function, horn, and load wheel condition. The safety and operational checklist on page 1-4 is a 20-point inspection that must be done daily. These are factory-mandated steps, not suggestions. The manual also includes precautions for trucks in storage and batteries in storage – critical if your equipment sits idle for weeks.

Source Authenticity: OEM vs Aftermarket

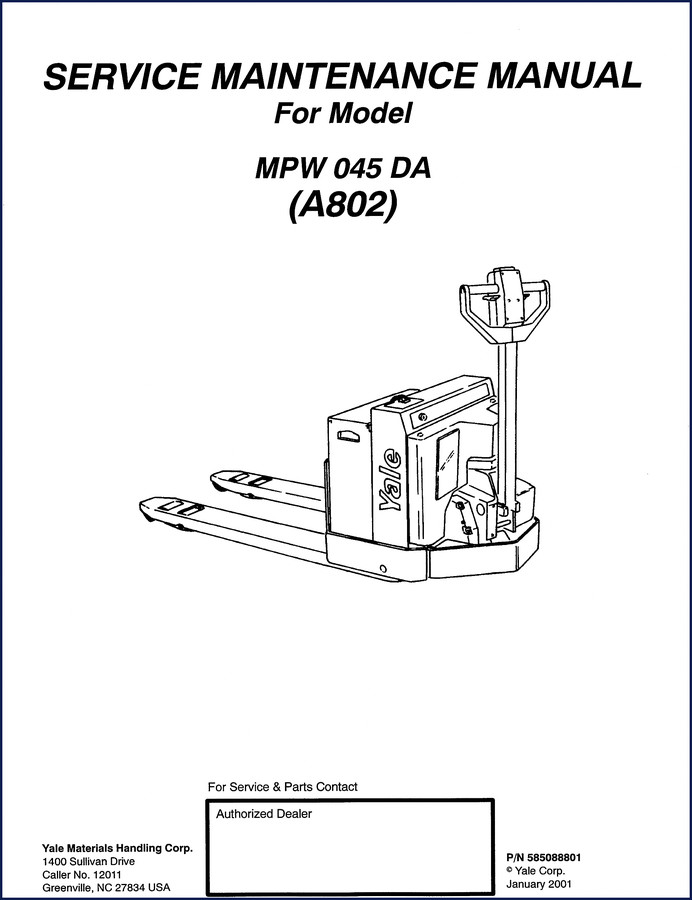

This is the original Yale Materials Handling Corp. document (P/N 585088801, January 2001). Aftermarket manuals often photocopy pages and miss torque values or safety warnings. This scan is from the actual factory print. The binding tabs let you flip to any section quickly – Section 1 Operating Instructions, Section 2 General Truck and Lubrication, and so on. No third-party guesswork. For older Yale models, check the Yale OS 030 EA 1992 Service Manual – 191 Pages of Factory Specs or the Yale OS 030 EB 1999 Service Manual | OEM Factory Specs. For a similar series from 1991, see the Yale OS 030 SS 030 1991 Service Manual – Factory OEM Specs. If you need background on general drivetrain theory, the Manual Transmission article and the Manual Transmission resource can fill in the basics, but for the MPW045DA you need this specific book.

Does the manual cover the electrical system?

Yes, Section 3 is dedicated to the electrical system with wiring diagrams.

What safety precautions are included for battery storage?

The manual includes a full section on precautions for batteries in storage (page 1-6). It specifies charging procedures, ventilation requirements, and handling of electrolyte spills. These are not generic warnings; they are specific to the MPW045DA’s 12-volt transistor control system. Ignoring them can lead to battery damage or personal injury. Follow the factory steps.

Period. Stop guessing and get the real data. Access the Factory Manual from AutoRepairManuals and have the correct specs on your bench. That is the difference between a repair that holds and one that fails under load.
