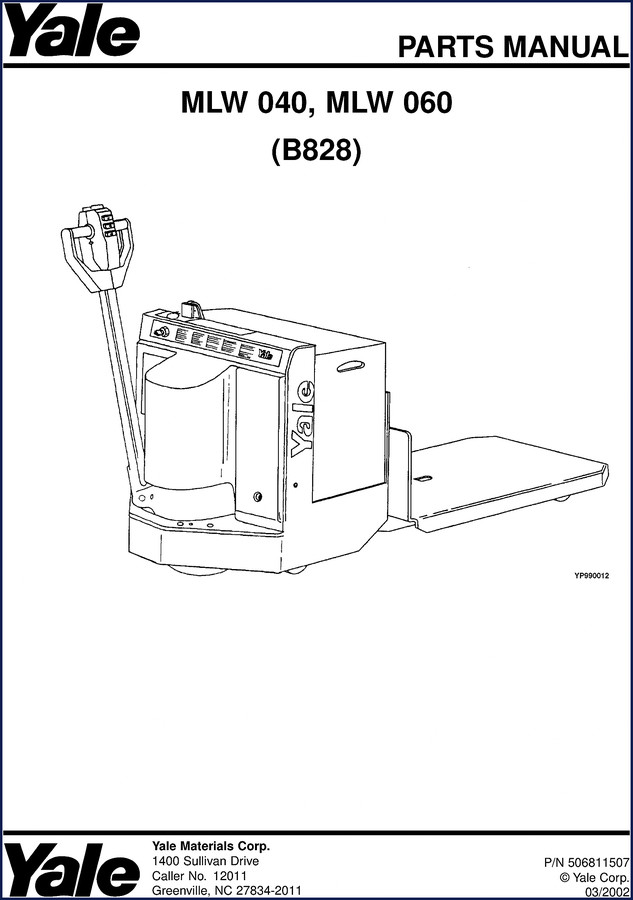

Yale MLW 040, MLW 060 2002 Parts Catalog

If you are hunting for a part number on a Yale MLW 040 or MLW 060 without the OEM parts catalog, you are burning billable hours. I have seen techs swap out the wrong drive motor because the aftermarket list showed a superseded number that did not fit. This Yale MLW 040, MLW 060 2002 Parts Catalog is the factory print – 104 pages of exploded views, part numbers, and engineering changes. You get the same documentation the dealer uses.

Electrical System: Factory Wiring Breakdown

The Electrical section (Section 2) covers the contactor assembly, directional contactor panel, drive motor variants – 12-volt and 24-volt, with serial number splits per ECN 83960 and 83816. If you need the part number for a contactor or the drive motor assembly, this is where you go. Aftermarket catalogs often merge these into one generic drawing; here each sub-assembly gets its own page. The alphabetical index points you directly to “DRIVE MOTOR 24 VOLT” or “CONTRACTOR PANEL” – notice the typo is theirs, not mine. That’s how the factory printed it.

Brake Shoe and Linkage: Page 3-6

Brake components live in Section 3 – Drive Unit and Brake Assembly. The brake shoe and linkage group is on page 3-6. It shows every spring, pin, and shoe with the OEM part number. You can also find the caster spring-loaded assembly (S/N pending per ECN 83872-02) on page 3-10. When you are rebuilding the drive unit, you need the exact part numbers for the 22.5:1 gear ratio assembly – that is all in this manual.

How to Find the Desired Part Number – Index Usage

The manual includes an alphabetical index and a numerical index. Page v tells you how to use the illustrated parts manual. If you know the component name – say “BATTERY RETENTION” – the index sends you to page 1-7. If you have an old part number, the numerical index (Section 8) cross-references it to the assembly page. This is not a guessing game. The factory put it together so you do not order the wrong part.

3 Reasons to Use OEM Instead of Aftermarket

First, aftermarket parts lists omit the engineering change notices (ECNs) that split serial numbers. This manual includes “S/N PENDING PER ECN 83872-02” on the caster assembly – that means the part changed mid-production. A generic catalog would list one part for all. Second, the illustrations are Yale-original. You see the exact shape and orientation of the part. Third, the part numbers are verified against Yale Materials Corp. specifications. I have seen too many rebuilds fail because someone used a aftermarket seal that did not match the OEM cross-section.

Options and Decal Locations – Section 7 & 1

Section 7 covers options like battery roller assembly (page 7-2). If your truck has a different battery configuration, you need that page. Section 1 (General Truck) includes decal and plate location (page 1-8). Every warning label and nameplate is shown with its part number. For any shop that rents or sells these forklifts, getting the decals right is a liability issue.

What is the page count of this manual?

104 pages.

Does this manual include torque specs for brake or drive components?

This is a parts catalog, not a service manual. It lists part numbers and exploded views. Torque values are not included. If you need service procedures, look for the companion service manual – check the related manuals below.

Can I use this catalog for the Yale MLW 080 or other series?

The catalog explicitly covers MLW 040 and MLW 060 (model code B828). The model nomenclature on page 2 explains how to decode your truck. For other models, you need the specific parts catalog for that truck. The part numbers will differ for larger capacity units.

Is the electrical section complete for both 12V and 24V systems?

Yes, Section 2 covers the 12-volt drive motor assembly (page 2-6) and the 24-volt drive motor (page 2-16), each with serial number splits. The directional contactor assembly and contactor panel are also included. All part numbers are listed per the original 2002 print.

Related manuals you might need: Yale MPW 060, MPW 080, MLW 040, MLW 060, MPE 060 1998 Service Manual – Factory S for service procedures; Yale OS 030 BC SS 030 BC 1997 Parts Catalog OEM for older Yale models; Yale MP MPB 040 AC A827 1998 Parts Catalog | OEM Manual for another popular series. For broader context on lift truck maintenance, see Automotive Industry Overview and Automotive Industry Overview.

When you need the right part the first time, stop piecing it together from three different sources. Access the Factory Manual and put this 104-page OEM catalog on your bench. You will have the exact part numbers for the electrical, brake, hydraulic, and drive systems. No more wrong orders, no more guessing.
