Wacker Neuson 8002 RD 2009 Parts Catalog – Factory Spare Parts for Crawler Excavator

You get handed a torn hydraulic hose on a 8002 RD and the customer wants it fixed yesterday. You flip through three different aftermarket parts lists and none of them match the serial number on the machine. That’s the kind of waste that eats your profit. This Wacker Neuson 8002 RD 2009 Parts Catalog is what you need sitting on the bench next to the coffee mug. It’s 150 pages of factory-sourced part numbers, cross-references, and illustration callouts that take the guesswork out of ordering. No reprints. No third-party garbage. Just the same document the dealer uses.

8002 RD Parts Catalog: What You Get in 150 Pages

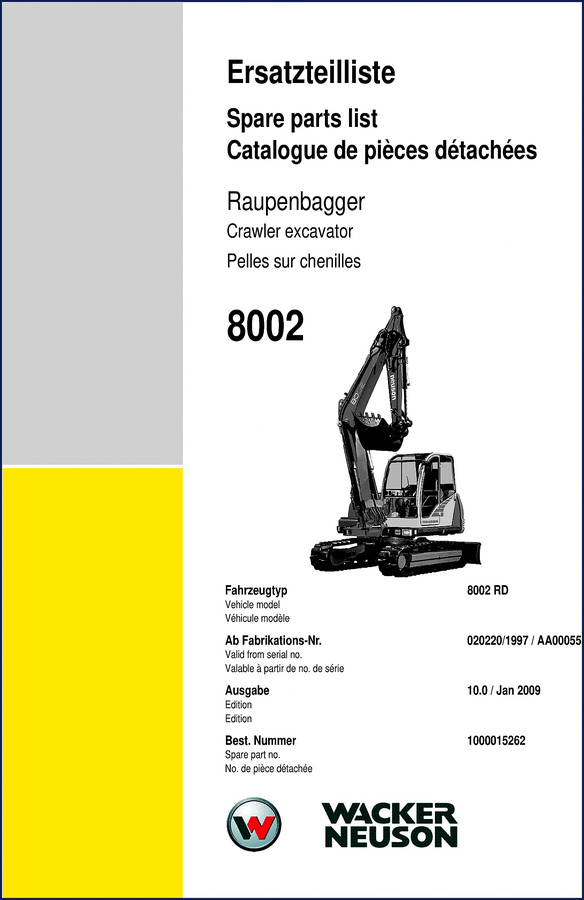

That file is the genuine 2009 release from Wacker Neuson Linz GmbH, printed in Austria. It covers the 8002 RD crawler excavator starting from serial number AA00055. The document is split into two main sections: Part A – ALLGEMEINE INFORMATIONEN (General Information) and Part B – TEILESUCHLISTE (Parts Number Reference List). Every illustration includes position numbers linked to a table with article numbers, quantity, and modification notes like “A↔N” for interchangeable parts or “A⇒N” for one-way replacements. If you need to track a part across serial number breaks, the notes tell you exactly when a new revision took effect.

Parts Number Reference List – TEILESUCHLISTE Explained

Page 5 in the catalog shows you the example layout: a row for each part with position number, article number, notes column, quantity, and part name in three languages. The key symbols are printed right there – A↔N means old and new are fully interchangeable; A⇒N means the old part can be replaced by the new but not backwards; A#N means no swap possible. If a part is listed as “XX” in the notes, it’s not sold separately – you buy the assembly. This is the kind of detail that stops you from ordering a single seal when the whole cylinder needs to come as a unit. Related catalogs for other models include Wacker Neuson LOCUST 752 Spare Parts Catalog and Wacker Neuson 6502 WD Spare Parts List.

General Information Section: Decoding the Symbols and Notes

Right after the title page, Part A gives you the rules. It shows the example table with a selection valve (UMSCHALTVENTIL) and its two article numbers depending on serial number range – one valid up to AA00733V, another from AA00734V onward. The column labeled “Anm.” holds those critical codes. Wacker Neuson also reminds you to always quote the machine type, serial number, engine type and serial number (for engine parts), catalog page, position number, and order number when placing an order. Skip that and you get the wrong part. I’ve seen guys order a hydraulic pump for a 50Z3 and then wonder why it doesn’t bolt up. Get the Wacker Neuson 50Z3 Parts Catalog if that’s what you’re working on.

How to Order Parts Using the Serial Number

Open the PDF to the TEILESUCHLISTE section. Find your machine’s serial number on the chassis tag – the catalog is valid from serial no. 020220/1997 / AA00055. For any part, check the “Anm.” column. If it says “A: AA00733V” that means the part applies up to that serial number; “E: AA00734V” means from that serial number onward. The arrow codes tell you interchangeability. Write down the article number (e.g., 1408410 for the selection valve) and quote it exactly. The catalog also lists the quantity per assembly – if the part is a single piece inside a complete assembly, the quantity shown is per complete unit. That saves you from ordering ten bolts when you only need two.

3 Reasons to Use the Factory Catalog Over Reprints

First, the factory document includes the original copyright and version control – this is edition 10.0 from January 2009, so you know it’s the latest production revision for the 8002 RD. Second, the exploded diagrams have resolution that shows part shapes clearly; reprints often lose that detail and you can’t tell a spring from a spacer. Third, the notes about interchangeability only appear in the OEM release. Aftermarket lists copy part numbers but drop the serial number breaks, leaving you with a pile of wrong parts. For an overview of how these catalogs fit into the broader industry, read the Automotive Industry Overview. That’s the same resource I use in the shop to explain to younger techs why factory data matters. Also check the Automotive Industry Overview for context on parts documentation standards.

Does this catalog include wiring diagrams or service procedures?

No. This is strictly a parts catalog – exploded views, part numbers, quantities, and ordering notes. For repair instructions you need the service repair manual.

How do I find the right part for my serial number range?

Look at the “Anm.” column on the table. Each part row may show a valid serial number range. If the row says “E: AA00734V”, the part is valid from that serial number onward. If no letter is shown, it fits all serial numbers covered by the catalog.

Can I print a single page from the PDF?

Yes. The file is searchable and each page can be printed individually. I recommend printing the TEILESUCHLISTE pages for the section you’re working on and keeping the original PDF backed up on your shop computer. That way you don’t lose the high-resolution scans.

Why does the catalog list part numbers in three languages?

Because Wacker Neuson is a global manufacturer. The catalog was compiled in German, English, and French to serve dealers across Europe and export markets. Part numbers are the same regardless of language – the text just changes the description column. If you read English, the column header “PART NAME” is the one to use.

Stop wasting time with mismatched parts and ordering mistakes. Access the Factory Manual and get the right article number the first time. Put this PDF on your tablet, print the relevant pages, and keep moving.
