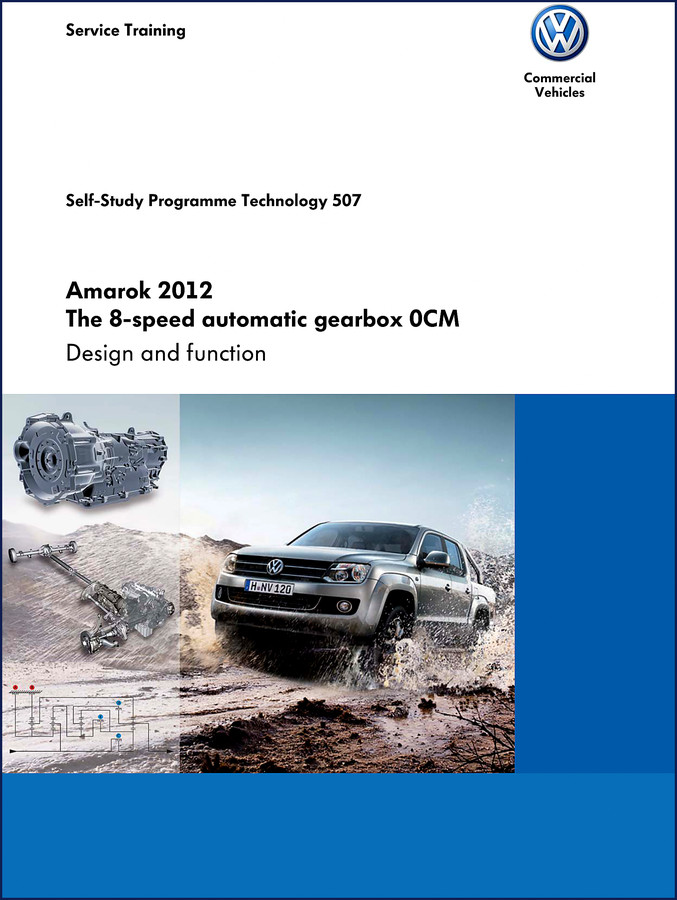

I’ve seen enough stripped bellhousing bolts and misdiagnosed transmission faults to know that guessing costs money. When you’re dealing with a Volkswagen Amarok’s 8-speed automatic gearbox 0CM, you need the factory training material – not some aftermarket rewrite. That’s why this 36-page Volkswagen Amarok 2012 Training Manual belongs on your bench. It is a self-study programme, SSP 507, intended for technicians who want to understand the gearbox before they touch it.

The 8-Speed Automatic Gearbox 0CM: What Makes It Tick

This manual doesn’t waste time with marketing. It opens with the driveline layout on page 2, where key data for the 2.0 l bi-TDI engine (132 kW) and the 0CM gearbox are printed. The torque converter section explains why the Amarok uses a converter instead of a DSG: low wear, torque multiplication for off-road and towing. After moving off, a controlled lock-up clutch eliminates hydraulic slip, boosting efficiency. That’s on page 2. If you want to understand why the Amarok handles a heavy trailer without cooking the transmission, read that section twice.

Torque Converter, Oil Supply, and Planetary Gearbox

The gearbox structure chapter covers the torque converter, oil supply, and planetary gearset. The oil supply diagram shows exactly how the 0CM circulates fluid under pressure. The manual states that the converter operates with almost no wear because powerflow is only through the gearbox when moving off. That is critical for techs who see high-mileage Amaroks with dark fluid. The planetary gearbox section describes the internal layout – no torque values here, but the hydraulic interfaces are mapped out. For the actual service port locations, you will need the workshop manual, but this training manual gives you the mental picture before you pull the pan.

Why a Factory Training Manual Beats Aftermarket Copies

I have burned too many hours on aftermarket guides that skip the transfer box details or show the wrong actuator layout. This manual is a Volkswagen factory publication – self-study programme 507, printed for internal training. The content is not updated, as page 2 warns, but the design principles remain the same. The wiring diagrams and hydraulic schematics are original VW, not redrawn by some graphic artist. Trust me: when you are diagnosing a no-shift condition, you need the actual sensor names from the mechatronic unit chapter, not generic labels. Aftermarket manuals often miss the hydraulic pulse accumulator (HPA) function – this manual devotes a full subsection to it.

Does This Manual Cover the Start/Stop System?

Yes. The gearbox function chapter includes a specific section on the start/stop system and the hydraulic pulse accumulator (HPA). The HPA stores hydraulic energy so the gearbox can maintain pressure when the engine stops. If you have an Amarok with start/stop that jerks on restart, the HPA layout is here. The manual also explains how the mechatronic unit interfaces with the engine ECU during stop phases. For a 36-page document, that is surprising depth. You will not find that level of detail in a Chilton or Haynes book.

Selector Lever Emergency Release: A Real-World Example

The selector lever chapter covers the module, actuation, ignition key removal lock, and the emergency release. If the battery dies or the mechatronic unit fails, you need to know where the release is. The manual shows the mechanical path – no guesswork. Combine this with the Volkswagen Amarok 2010 Self-study Programme 463 for earlier models to see design changes. For a deeper look at the powertrain, pair it with VW Amarok Powertrain and Drive Concept SSP 464. And if you are working on other VW engines, Volkswagen 2.3-ltr. V5 Training Manual – OEM Factory Specs covers a completely different drivetrain but follows the same factory layout.

Get the Right Hydraulic Pulse Accumulator Data

That is a sentence. The HPA section is three pages in the manual. It shows the accumulator’s position, pre-charge pressure (not given here, but the manual indicates where to find it in service literature), and how it recharges during engine-off phases. For a broader understanding of transmission types. The Automotive Industry Overview provides context on modern multi-speed automatics. And if you are comparing the 0CM to older designs, review the Manual Transmission basics – the manual briefly references torque converter advantages over manual gearboxes.

Service Tools and Adaptation

The final chapter lists the special tools needed for gearbox adaptation after repair or fluid change. Page 36 in the PDF shows the required diagnostics equipment. Without these tools, you cannot reset the oil aging counter or perform the adaptation routine. This manual tells you why, not just what. Training manuals like this exist to prevent you from firing the parts cannon – understand the system, then diagnose.

One more thing: this is a 36-page training manual, not a full repair manual. It does not contain torque specs for bolts or oil capacity in quarts. That information is in the official workshop manual. But if you want to know how the 0CM works, why the torque converter locks up, and how the start/stop system interacts with the hydraulic circuits, this PDF is the fastest route. No fluff, no reprints. Access the Factory Manual from AutoRepairManuals and keep it on your tablet while you work.
