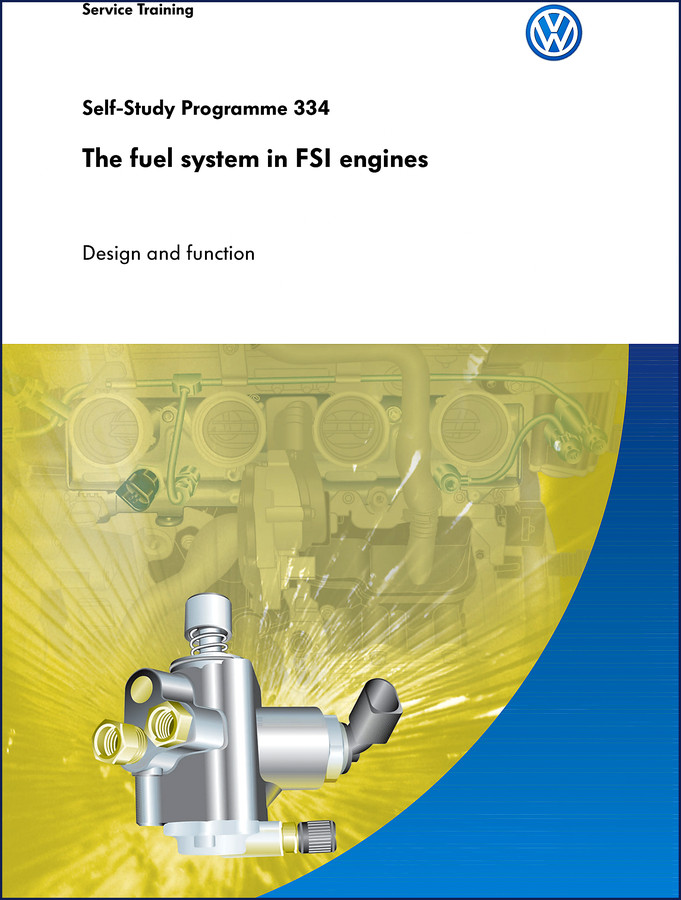

Volkswagen 2.0 ltr Training Manual – Self-Study Programme 334

If you’re staring at a 2.0 ltr FSI that won’t hold rail pressure or throws a lean code, the last thing you need is a generic walkaround. You need the factory training material that shows how the system is supposed to work before you start swapping parts. This Volkswagen 2.0 ltr Training Manual is 20 pages of pure engineering – no fluff, no reprints. It’s the Self-Study Programme 334, written by the people who designed the fuel system. When you understand the demand-controlled architecture, you stop chasing symptoms.

Demand-Controlled Fuel System: What This Manual Covers

Page 4 starts with the general overview and explains the low pressure (0.5–5 bar normal, 6.5 bar for starts) and high pressure sides. The manual doesn’t waste space – it shows how the electric fuel pump and high pressure pump only move what the engine needs. That’s the whole point of a demand-controlled system. If you’ve had a customer complain about fuel odor or a hard start after a pump replacement, this section explains why the system needs that pressure ramp. No guesswork.

Fuel System Components Breakdown – Page 6

From the fuel pump control unit to the high pressure injectors, every component is explained. The manual covers the fuel pressure sender for lower pressure (page 14) and high pressure (page 15), the pressure limiting valve (page 18), and the connecting piece with restrictor. Each part is shown in context, not isolated. You’ll see how the removal of the leakage line on the high pressure pump changes the return routing. That matters when you’re bleeding a system after a pump swap.

Why This Training Manual Is Critical Before You Touch a Wrench

This isn’t a service manual with torque specs or replacement intervals. It’s a design and function guide. If you’ve ever tried to diagnose a Volkswagen FSI without knowing the difference between low pressure and high pressure sender signals, you know it’s a rabbit hole. The manual walks through the high pressure fuel pump with fuel pressure regulating valve – the same one that gets swapped unnecessarily because the tech didn’t understand that the regulating valve is integrated. Save the diagnostic time. Use this to learn the system logic before you open the tool box.

Test Your Knowledge – Page 19

The last page has a self-test. You answer questions about system pressure, component function, and corrosion resistance (the manual notes that the pump and rail have a special coating for E10 fuels). If you can’t answer those questions, you’re not ready to diagnose. I’ve seen guys throw $800 in parts at a 2.0 ltr FSI because they didn’t know the low pressure side was the problem. This manual prevents that waste.

OEM Authenticity vs. Aftermarket Reprints

Aftermarket training summaries skip the details. This is a direct scan of the Volkswagen Self-Study Programme – the same PDF that dealership techs use during their training. The manual references the official Service Literature for repair instructions, which tells you it’s part of the factory workflow. If you want to understand the fuel system design for the 2.0 ltr 110 kW FSI engine, you use this. Anything else is a guess.

Related manuals that belong on the same shelf: Volkswagen 2.3-ltr. V5 Training Manual – OEM Factory Specs covers a different engine family but the same training rigor. Volkswagen Passat 2005 Training Manual – Technical Overview is useful if you’re working on a car that uses a similar fuel system. For brake system training, VW SSP 264 2000 Training Manual Brake Assist System OEM is a companion. Outside resources: the Automotive Industry Overview on fuel system evolution puts this into context. If you’re diagnosing a drivetrain issue, Manual Transmission fundamentals apply elsewhere.

20 pages doesn’t sound like much, but these pages pack the functional logic that separates a parts-swapper from a diagnostician. If you work on Volkswagen FSI engines, this is the foundation. Access the Factory Manual now.
