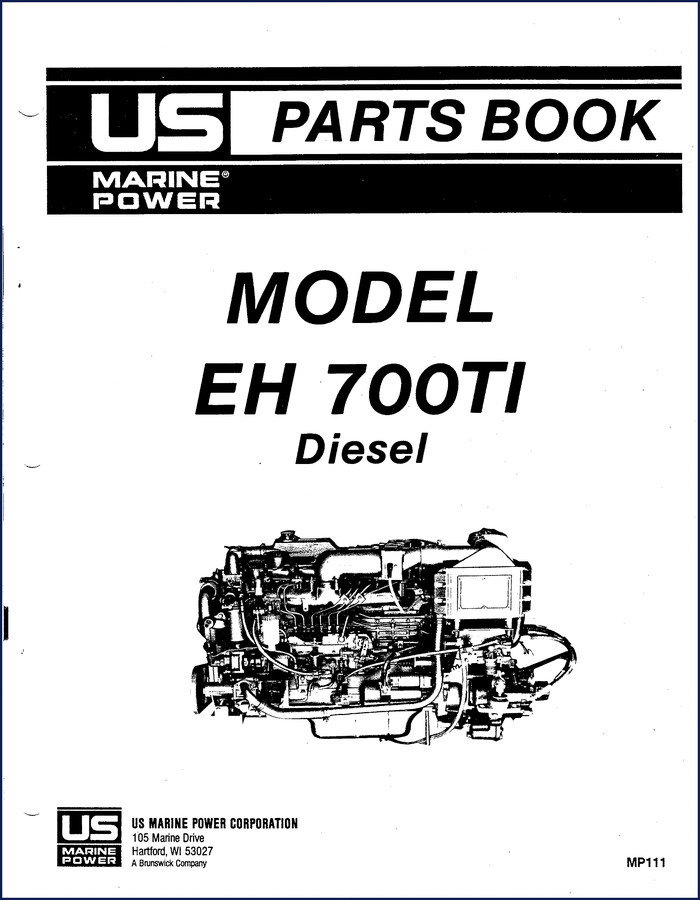

US Marine Power EH700TI Parts Catalog – 80 Pages of OEM Part Numbers

You’ve got an EH700TI on the lift, and the parts diagram you pulled off some forum doesn’t match what’s in front of you. I’ve been there. A wrong part costs you a day, maybe a trip back to the supplier. That’s why you want the US Marine Power EH700TI Parts Catalog – 80 pages of factory-issued part numbers and exploded views, straight from the Brunswick company that built the engine. No aftermarket reinterpretations, no scanned reprints missing pages. This is the original US Marine Power document.

Cylinder Head Section – 1000 Series Breakdown

The manual opens with the cylinder head assembly, split into two figures: 1-A1 and 1-B1. Page 2 lists the parts for the first half: valve guides (part 11122300, qty 6), intake and exhaust seats, injection nozzle seats, hold-down bolts, and every stud and washer you’ll need. Page 3 shows the actual exploded diagram. The second half, on page 4, continues with cylinder head bolts (six different lengths: 111851170, 111851180, 111851190), the head gasket (111151122), crankcase breather assembly, and the hanger bolt. If you’re rebuilding the top end, you’ll reference these pages more than once. The part numbers are the exact ones US Marine Power stamped on the bin.

Why OEM Catalog Data Kills Return Trips

Aftermarket parts catalogs cut corners. They combine two separate bolts into one generic entry, or omit the soft washer (part 965410100) that keeps the plug from leaking. This manual lists every part with a unique illustration number, warranty code, and quantity. You see “20 Bolt, cylinder head” and know you need twenty of part 111851170. Not “similar to”. Not “check fit”. If you’ve ever ordered a gasket set that didn’t include the injection nozzle seat gasket (900115214), you already know the pain. This catalog eliminates that.

Who Actually Uses This – Marine Mechanics and DIY Boat Owners

If you maintain a commercial fishing vessel, a yacht tender, or a workboat with the EH700TI diesel, this parts catalog sits on the bench. The home garage enthusiast who keeps a boat lift and rebuilt a small block Chevy will also appreciate having factory part numbers at hand before calling the dealer. You don’t need to be a certified marine mechanic to read an exploded view – the diagrams are clear, and the part numbers line up with your local US Marine Power dealer’s system. That saves you the “I need the thingamajig for the valve cover” conversation.

Shop Tip – Cross-Referencing Part Numbers on the Bench

When you pull the cylinder head, lay out the bolts in order. Compare the bolt lengths to the illustration on Figure 1-B1. The parts catalog shows six bolts of length 111851180 (the shorter ones) and six of 111851190. If you mix them up, you risk stripping the block threads or bottoming out. Write the part number on a sticky note and tape it to the bolt tray. Then order replacements using the exact numbers from the catalog. No guesswork. Also note the core plugs (part 963936102, qty 2) – they’re often forgotten until reassembly.

Related Manuals for the EH700TI

This parts catalog works best alongside the service manual for torque specs and procedures. Check out US Marine Power EH700TI, EH700N Service Manual – 202 Pages for step-by-step overhaul instructions. If you need the operator’s guide for daily checks, grab US Marine Power Diesel Engine Operator’s Manual. For other US Marine Power engines, see US Marine Power 6-393N/6-393T Diesel Engine Operator’s Manual. For general background on marine steering hydraulics, Power Steering Systems covers theory, while Automotive Industry Overview gives context on diesel propulsion evolution.

Does this parts catalog include torque specifications for cylinder head bolts?

No. This is a parts catalog, not a service manual. It lists part numbers, quantities, and exploded views. For torque specs (e.g., cylinder head bolt tightening sequence and ft-lb values), you need the factory service manual.

Can I use this catalog to identify parts for a different US Marine Power diesel?

Only if the engine shares components with the EH700TI. The catalog is specific to the EH700TI model. Cross-referencing with other models (like EH700N or 6-393T) may work for common parts like core plugs, but you should use the dedicated catalog for each engine to avoid errors.

This is the original US Marine Power EH700TI Parts Catalog – 80 pages, factory part numbers, no third-party cleanup. If you want to stop wasting time with wrong parts and start ordering what actually fits, Access the Factory Manual from AutoRepairManuals.
