Toyota FJ Cruiser Technical Manual – Multiplex Communication System Focus

If you’re staring at a dead back door ECU on an FJ Cruiser and the aftermarket wiring diagram looks like a kindergartner drew it, this Toyota FJ Cruiser Technical Manual is what you need. I’ve been wrenching for 28 years, and I’ve seen enough electrical fires start from guesswork. This 17-page factory document gives you the real deal: OEM system descriptions, part locations, and the exact steps Toyota expects a tech to follow. No third-party edits, no condensed fluff – just the original text and diagrams straight from the manufacturer.

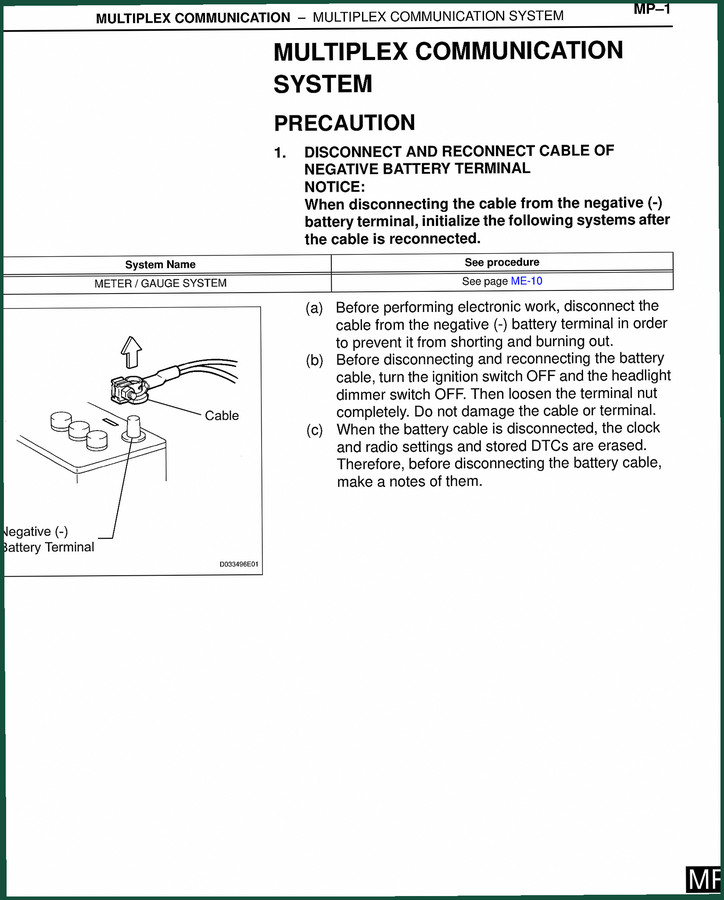

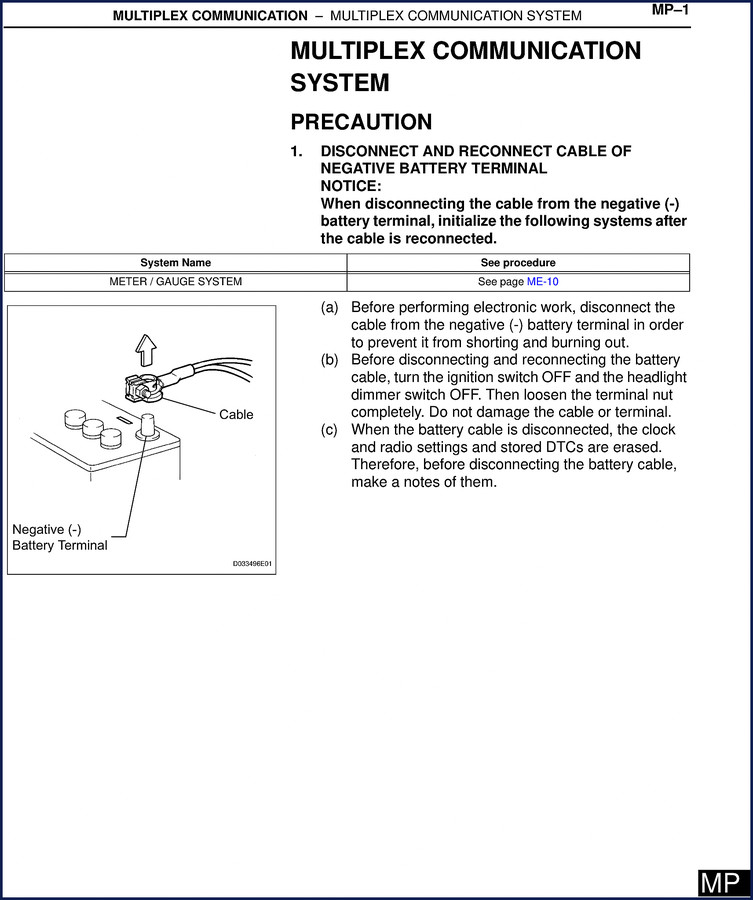

Precaution: Battery Disconnection Procedure

Page 1 of this Technical Manual kicks off with a notice you’d better not skip. Before any electronic work, you disconnect the negative battery terminal – but not just yank it off. You turn the ignition OFF, dimmer OFF, loosen the nut fully, and avoid damaging the cable. After reconnecting, you must initialize the METER/GAUGE SYSTEM per the manual (see page ME-10, cross-referenced). This is the difference between a clean job and setting a clock that stays wrong for weeks.

System Description – BEAN Communication

The manual dives into the BEAN (Body Electronic Area Network) communication line. There are two systems: a loop-shaped line connecting the back door ECU with the main body ECU (Driver Side J/B). If one leg opens, the other keeps communication alive. But if a bus‑down short happens, DTC output stops, and you have to use an intelligent tester for SAE code inspection. The back door ECU only has a single communication line – if that shorts, you’re dead in the water. This is exactly the kind of detail you won’t find in a generic autoparts store manual.

Parts Location and System Diagram

Two pages of the manual show the exact physical locations: Main Body ECU (Driver Side J/B) and Back Door ECU. The system diagram page (page 3) lays out power flow from battery through ALT, ECU‑B, short pin, J/B, then to both ECUs with labeled ground and MPX2 lines. When you’re chasing a communication failure, having this diagram open saves hours of probing. For related transmission electrical work, check the Toyota A750E A750F Transmission Technical Service Manual if you’re also dealing with drivetrain CAN issues.

How to Proceed with Troubleshooting

Page 5 of the Toyota FJ Cruiser Technical Manual outlines the trouble‑shooting flow: check battery voltage (standard 11–14 V), then inspect DTC output using the intelligent tester connected to DLC3. If the display shows ECU unconnected or communication bus defective, follow the manual’s inspection steps. Other DTCs? Refer to the DTC table in the applicable section. This isn’t a guess‑and‑swap procedure – it’s a systematic factory process.

Source Validity: Why This Technical Manual Beats Aftermarket Copies

I’ve got a drawer full of aftermarket wiring charts that show the wrong pin colors. This document comes from the Toyota factory – no reprints, no translations that killed the meaning. The 17 pages are scanned from the original release, so you see the exact notes, hints, and notices that Toyota wrote. For a comprehensive overview of how automotive communication networks evolved, check the Automotive Industry Overview on Wikipedia. But for the specific FJ Cruiser BEAN system, you want this manual.

Audience Fitness: Who Needs This Toyota FJ Cruiser Technical Manual

If you’re a DIY owner pulling the back door panel to fix a dead power window or a professional mechanic diagnosing a no‑communication DTC, this manual pays for itself. The 17 pages are laser‑focused – no engine rebuild data, no brake specs – just the multiplex system. Beginners should read the precaution page twice. Veterans will appreciate the system diagram and the bus‑down troubleshooting logic. For related ECU work, the Toyota 4Runner, Tundra, Land Cruiser, FJ Cruiser, Camry ECU Flash Technical Manu covers reprogramming procedures. Or if you’re working on an older Toyota with a different body network, the Toyota LS400 Technical Manual – Factory 1998 Engine Control System has similar depth for its era.

One more thing: the manual assumes you know basic electronic safety – it’s a factory technical doc, not a training course. If you have no experience reading automotive wiring diagrams, get a mentor or take a course. The Manual Transmission page on Wikipedia won’t help here, but understanding CAN bus basics will.

FAQ

Does this manual cover engine or transmission repair for the FJ Cruiser?

No – this Technical Manual is exclusively about the multiplex communication system (BEAN). For engine or transmission work, you need the corresponding service manual.

What is the most important piece of information on page 1 that most DIYers ignore?

The notice about initializing the METER/GAUGE system after battery reconnect. If you skip that, the gauge cluster may read wrong, set false DTCs, or fail to communicate with the main body ECU. I’ve seen shops waste a day chasing a phantom electrical issue because they didn’t run that simple initialization procedure. The manual mentions it right up front – page 1, line one under the caution. The SPECIFIC procedure is on page ME‑10 of the main service manual, but this technical manual tells you which system needs resetting so you know where to look. Follow it exactly: ignition off, disconnect negative terminal, do your work, reconnect, then turn ignition on and run the gauge initialization routine. No shortcuts.

Factory technical documents like this one don’t hit the open market often. When they do, grab them. Access the Factory Manual and keep it on your tablet next to the battery charger.
