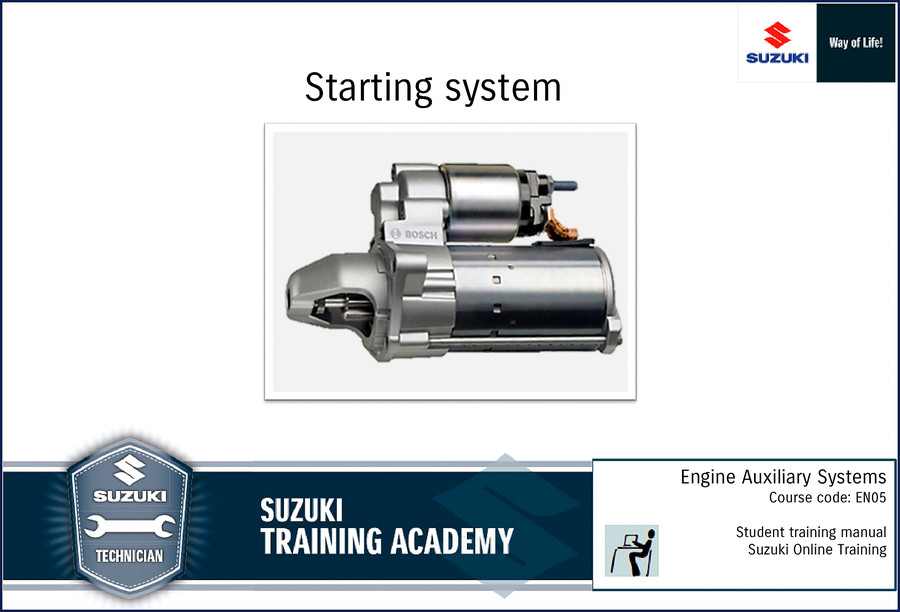

Suzuki EN05 Training Manual: Starting System Diagnosis and Theory

If you are a Suzuki technician or a serious home mechanic who has ever chased a no-start condition by swapping parts instead of measuring voltage drops, you know the frustration. That’s where a real factory Suzuki EN05 Training Manual comes in. This is a 22-page training document from Suzuki’s own online academy, not some aftermarket rewrite. It covers the starting system from the ground up – DC motor theory, component function, circuit testing, and a symptom-based troubleshooting table. No shortcuts, just the OEM approach. I’ve used training manuals like this for years to bring new techs up to speed fast. They teach you why something works, so you can fix it without guessing.

Starter Motor Components and DC Motor Principles

Pages 4 through 9 walk you through every piece inside a starter motor. Armature, brushes and brush holder, magnetic switch, pinion and overrunning clutch, field coils, reduction gear. Each component gets its own slide. The manual explains how a DC motor converts electrical energy into mechanical rotation using magnetic fields. This is not a parts list – it’s how they interact. Understanding that the magnetic switch (solenoid) both engages the pinion and closes the high-current circuit is the kind of detail that saves you from misdiagnosing a burnt contact as a dead battery.

Starting Circuit Diagnosis – Voltage Drop Testing

On page 15 you get the “On vehicle starter system test.” That’s where the manual shows you how to connect a voltmeter and measure cranking voltage right at the battery and at the starter terminal. Then page 16 covers voltage drop on cables. If you’ve ever had a car that cranks slow but the battery tests good, you need this procedure. The manual tells you the acceptable drop for each cable – generally less than 0.1 volt per connection on a 12V system. These are factory specs from Suzuki, not generic numbers from a blog post.

Symptom Troubleshooting Table – Real-World Application

Page 18 contains a starting system symptom troubleshoot table. It’s a matrix: symptom on one side, possible causes and tests on the other. For example, “Starter does not crank – No click from solenoid” directs you to check the starter relay, then the ignition switch circuit, then battery voltage. This table alone can cut your diagnostic time in half. It’s the same logic Suzuki techs use daily. Pair this manual with a digital multimeter and a test light, and you’ll stop throwing parts at the problem.

Who Needs This Manual?

Beginners who want to understand the starting system instead of just swapping a starter. DIY owners with a Suzuki that cranks slow or intermittently. Shop owners training new hires. This manual is part of Suzuki’s non-tech to tech curriculum – it assumes you have basic electrical knowledge but need the specific system theory. The 22 pages are dense, with video links embedded (if you view it on a PC) to demonstrate magnetic switch operation and brush wear. If you’re a veteran mechanic, you might skip the DC motor theory, but the voltage drop specs and troubleshooting table are worth the price of admission.

Factory Source vs Aftermarket Documentation

I have seen aftermarket “starters” manuals that show a generic solenoid picture and say “test with a multimeter” without telling you which terminals to probe. The Suzuki EN05 Training Manual is OEM content: written by the manufacturer, used in their own training academy. Every part name matches the official parts catalog. Every test procedure matches the service manual. If you get stuck on a 1990s Suzuki Swift or a modern Vitara, this training manual gives you the foundation to work through any starting issue. Aftermarket books skip the theory – they want you to think every problem is a bad starter. This manual gives you the tools to verify before you replace.

Related manuals you may need for your Suzuki projects:

• 1992 Suzuki Samurai Air Conditioner Installation Manual
• Suzuki Outboard Workshop Service Manual 1988-2003
• Suzuki Samurai Sidekick Tracker 1986-1996 Repair Manual

For broader automotive electrical theory, check Automotive Industry Overview on Wikipedia. If you’re working on manual transmission vehicles, see Manual Transmission for drivetrain basics.

Does this manual cover starter replacement steps?

No. This is a training manual, not a service manual. It focuses on theory and diagnosis. For removal and installation procedures, you need the factory service manual for your specific Suzuki model.

Can I use this to test a starter motor on my bench?

Not directly. The manual covers on-vehicle voltage drop and relay testing. Bench testing requires a different procedure. However, understanding the internal components from this manual helps you interpret bench test results.

What does the 22-page count mean?

It’s 22 slides. Each page is one slide from Suzuki’s training presentation. They are information-dense – diagrams, tables, and concise text. It’s not a thick book, but every page adds knowledge.

Is this the same as a service manual?

No. A service manual gives step-by-step repair instructions for a specific year/model. This training manual teaches principles that apply across Suzuki vehicles. Use it to build diagnostic skill, then apply that skill with a service manual.

You can get the real thing here. Access the Factory Manual now and stop guessing about starting system diagnosis. It’s a 22-page PDF – no fluff, no reprints. Just Suzuki’s own training material, ready for your workbench or tablet.
