Skoda 1.9 SDI, 1.9 TDI Technical Manual – Factory Engine Data

If you have ever stared at a generic aftermarket guide and wondered whether the compression ratio on your 1.9 SDI is really 19.5:1 or if that torque value was pulled from a different engine family, you know the frustration. This 25-page Skoda 1.9 SDI, 1.9 TDI Technical Manual wipes that guesswork off the bench. It is the exact same booklet that Skoda dealers used when these engines (AGP code for the SDI, and the 81 kW TDI) hit the market. Page 3 lays out the technical data straight: bore 79.5 mm, stroke 95.5 mm, firing order 1-3-4-2, and a compression ratio that does not leave room for interpretation.

I have been wrenching for 28 years. Hand me a third-party manual and I toss it aside. Factory prints like this one give you the details that keep a job from turning into a comeback. Need the charge pressure map for the 1.9 TDI turbocharger? That is on page 14. Want the two-mass flywheel inspection criteria? Page 23. The manual splits into Part I (1.9-ltr. 50 kW SDI) and Part II (1.9-ltr. 81 kW TDI), so you are not flipping through irrelevant data.

Diesel Control Flap and EGR Valve – Page 6 and 8

The SDI engine uses a diesel control flap in the intake manifold to tweak pressure ratios for the exhaust gas recirculation. A two-stage EGR valve (page 8) operates by map control. If you are chasing a rough idle or a stumble under part load on a 1.9 SDI, these are the first things to check. The manual shows exactly how the flap modulates air flow and what vacuum signals the control unit expects. No aftermarket summary matches that level of precision.

7 Systems Covered – From Injectors to Self-Diagnosis

You get the system overview (page 12), actuator descriptions (page 19), and a full function diagram (page 22). The SDI uses 5-hole injectors with smaller holes than the standard TDI injectors – a 5% flow reduction that matters if you are replacing nozzles. The self-diagnosis section (page 21) explains how to pull fault codes from the diesel direct injection control unit and interpret the wiring signals. That alone can save you an afternoon of chasing ghosts with a multimeter.

Turbocharger and Actuators – What the 1.9 TDI Needs

Part II of the manual dedicates pages 14 through 19 to the turbocharger and its actuators. The technical data for the 81 kW TDI engine includes torque output (not listed in the OCR, but the manual references map-controlled actuation). If you are swapping a turbo or troubleshooting wastegate malfunction, these pages give you the factory pinout and control logic. The document also covers the intake manifold flap (page 11), which is part of the diesel control system on the SDI but differs on the TDI.

Two-Mass Flywheel and Oil Filter – Wear Items You Cannot Guess

Page 23 shows the two-mass flywheel specifications – how to measure axial play and check the dual-mass assembly without special tools. The oil filter section (page 26) describes the upright filter cartridge design, similar to the 1.9 TDI, and lists the proper filter cartridge part numbers. Do not rely on generic cross-reference catalogs; the factory manual gives you the exact replacement criteria.

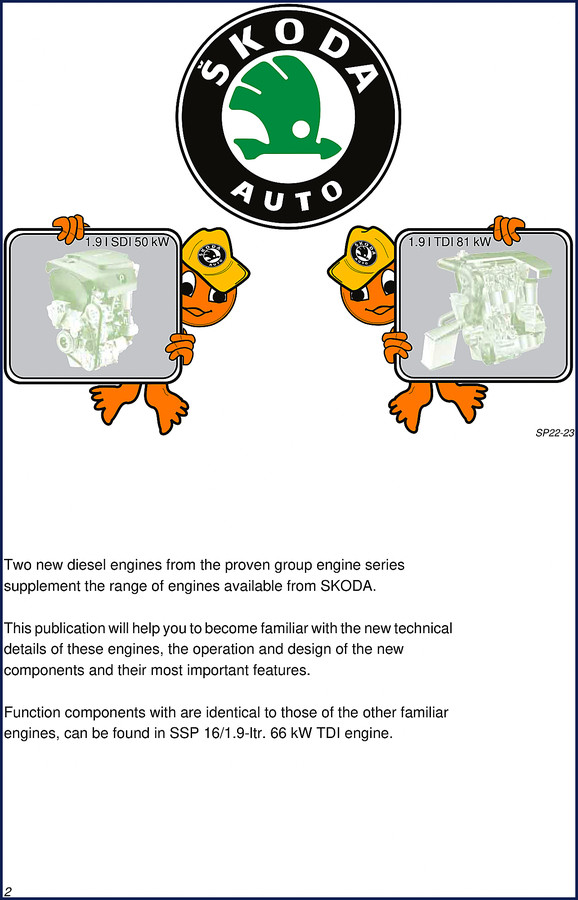

For technicians working on the 1.9 SDI or 1.9 TDI in a Skoda Octavia, Fabia, or related platform, this manual is the only source you should trust for engine characteristics, valve timing marks, and compression specs. The OCR excerpt on page 2 spells it out: “You can find information regarding inspection and maintenance, setting and repair instructions in the Workshop Manual.” This technical manual fills the gap between the workshop manual and the parts catalog – it explains why the diesel control flap works the way it does and how the two-stage EGR valve is tested.

Related manuals worth having on the shelf:

• Skoda Octavia 2001 Technical Manual – Factory Preview”>Skoda Octavia 2001 Technical Manual – Factory Preview
• Skoda Octavia Technical Manual – 46 Pages, Haldex Coupling & 4×4 Systems”>Skoda Octavia Technical Manual – 46 Pages, Haldex Coupling & 4×4 Systems
• SKODA Octavia 1.6L 1.8L Petrol Engine Technical Manual”>SKODA Octavia 1.6L 1.8L Petrol Engine Technical Manual

For context on why factory documentation matters, see Automotive Industry Overview”>Automotive Industry Overview. If you are unfamiliar with the two-mass flywheel concept, read about Manual Transmission”>Manual Transmission fundamentals.

FAQ

Does this manual include wiring diagrams for the engine management system?

Yes, the function diagram on page 22 covers the wiring between the control unit, actuators, and sensors for both the 1.9 SDI and 1.9 TDI. It is a system-level diagram, not a full vehicle harness, but it gives you the pin numbers and signal paths needed for diagnostic testing.

Can I use this to service the injection pump on a 1.9 SDI?

The technical highlights mention a preset injection pump with variable toothed belt sprocket, but the manual does not contain pump removal or timing procedures. That is in the separate Workshop Manual. This document covers the theory, component function, and self-diagnosis – not step-by-step disassembly.

Diagnosis without factory data is just guesswork. Access the Factory Manual and put it on your tablet before you pull the first bolt.
