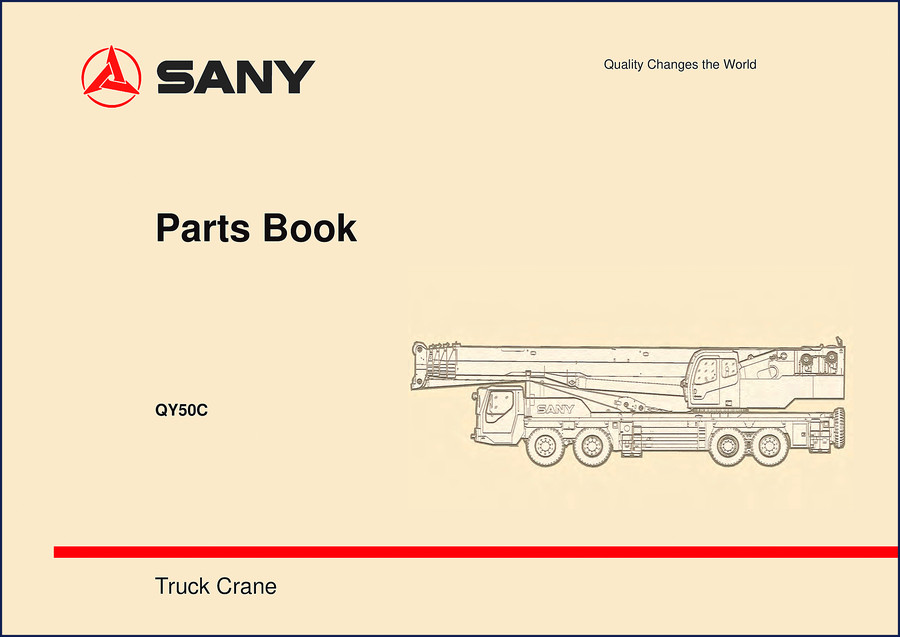

SANY QY50C, QY50CS93 Parts Catalog – 448-Page Factory Parts Breakdown

You ever stand in the parts room with a busted steering cylinder and three different part numbers that might fit? That’s a waste of billable hours. This SANY QY50C, QY50CS93 Parts Catalog is the OEM book – 448 pages of factory part numbers, exploded diagrams, and quantities. No aftermarket rehash, no third-party guessing. If you’re rebuilding a QY50C or QY50CS93 truck crane, this is the only document that tells you exactly which bolt, seal, or hose assembly SANY intended to go where. I’ve seen guys order wrong parts twice because they used a generic online parts list. That’s time and money you don’t get back.

This manual came straight from the SANY factory files. The index at the front lets you jump to the exact chapter: Chapter 1 covers the QY50CS93 Truck Crane body (pages 1-1 through 1-8), and Chapter 2 dives into the chassis, truck crane – that’s 44 pages of subsystems including cab, power, steering, and drive. I’ll walk you through what’s inside so you know exactly what you’re getting.

Chapter 1: QY50CS93 Truck Crane Body – Exploded Parts for the Main Structure

Chapter 1 runs from page 1-1 to 1-8. It covers the main crane body assembly, part number 10661213. If you need the boom foot pin, the turntable bearing, or the counterweight bracket, this is the section. Each illustration shows the part with a callout number and the corresponding SANY part code. No translation needed – the part numbers are direct from the manufacturer. For a crane this size, the main body structure has welded and bolted components that aren’t interchangeable between model years. This catalog uses equipment number 10TC10504449 as the reference, so check your machine’s serial plate before ordering.

Chassis Breakdown: Power System, Steering, and Drive – Pages 2-1 to 2-46

Chapter 2 is the meat of this SANY QY50C, QY50CS93 Parts Catalog. It starts with the chassis subassembly (10217854), then breaks into the cab and air-condition device (10224206). The power system device section (10214285) includes the diesel engine suspension (10199380), oil supply system (10209484), air inlet (10207320), exhaust (10210603), and cooling (10208511). Each subsection has its own page range. Need the steering reservoir assembly? That’s part A810299019000, listed on page 2-42. The steering system device (10449538) covers hydraulic steering, axle assemblies, and piping. If you’re rebuilding the clutch operation mechanism, that’s on page 2-46 under drive system device (10203390). This catalog doesn’t tell you how to fix it – it tells you what part to buy. You still need the service manual for torque specs and procedures, but without this parts book you’ll be cross-referencing by guess.

Why a Factory Parts Catalog Beats Aftermarket Lists

Aftermarket parts databases often group multiple revisions into one vague reference. SANY updates part numbers when suppliers change or engineering improves. This catalog is sourced from the original OEM print – no reprints, no third-party copies. The part numbers on page 1-2 for the truck crane body are exactly what you’d get if you walked into a SANY dealer with your machine’s serial number. I’ve had customers bring me aftermarket parts that didn’t have the right thread pitch on a steering line. That’s a leak waiting to happen. Stick with the factory book.

How to Use the Index and Find Any Part in Under 30 Seconds

Flip to the index page (before chapter 1). It lists every major assembly and its starting page. For example, “10224206 Cab and air-condition device” points to page 2-4. From there, the subsection index within the chapter leads you to the specific illustration. Each part in the diagram has a number that corresponds to a table listing the SANY part code, description, and quantity per assembly. If you need a cab operator assembly (60019171), you’ll find it listed on page 2-8. The organization is consistent – master assembly number, then exploded view, then parts table. No fluff.

For related SANY equipment, check the SANY QY25CS2 Parts Catalog – 476-Page Factory Parts Breakdown for a smaller crane, or the SANY SRSC45C2 Parts Catalog – 755-Page Factory Parts Book for reach stacker components. The SANY SDCY100K8-T Parts Catalog 503-Page OEM Factory Parts Manual covers a different model but uses the same layout – once you know the system, you can move across platforms.

SANY is a major player in the Automotive Industry Overview. If you want background on how manufacturers structure parts documentation, the Automotive Industry Overview is a good read.

FAQ: Real Answers About This Parts Catalog

Does this manual include torque specs or repair procedures?

No. This is a parts catalog only – it lists part numbers, quantities, and exploded views. You need the separate service manual for disassembly and torque values.

I have a QY50C with serial number 10TC10504449. Will this cover my crane exactly?

Yes, this catalog is indexed to equipment number 10TC10504449, which matches the QY50CS93 variant. However, SANY sometimes makes running changes – always double-check the part number against your existing component before ordering. The catalog covers both QY50C and QY50CS93 models, but verify your machine’s build date against the revision level shown on the illustration page. If you see a discrepancy, contact a dealer with your serial number. Using the wrong part on a crane can cause catastrophic failure – do not guess.

You’ve got the crane, you need the right parts. Stop wasting money on parts that don’t fit and returns that eat your margin. Access the Factory Manual now and keep it on your shop tablet or printed out – you’ll reference it on every rebuild.
