Palfinger PK 16001 K 2009 Parts Catalog

If you’re ordering parts for a Palfinger PK 16001 K crane without the factory parts catalog, you’re gambling on fitment. The Palfinger PK 16001 K 2009 Parts Catalog is the only document you should trust. 520 pages of OEM part numbers, exploded views, and ordering codes. I’ve seen guys try to cross-reference from generic listings and end up with the wrong stabilizer ram because they ignored the serial number break on page 1.

Palfinger PK 16001 K 2009 Parts Catalog – Scope and Content

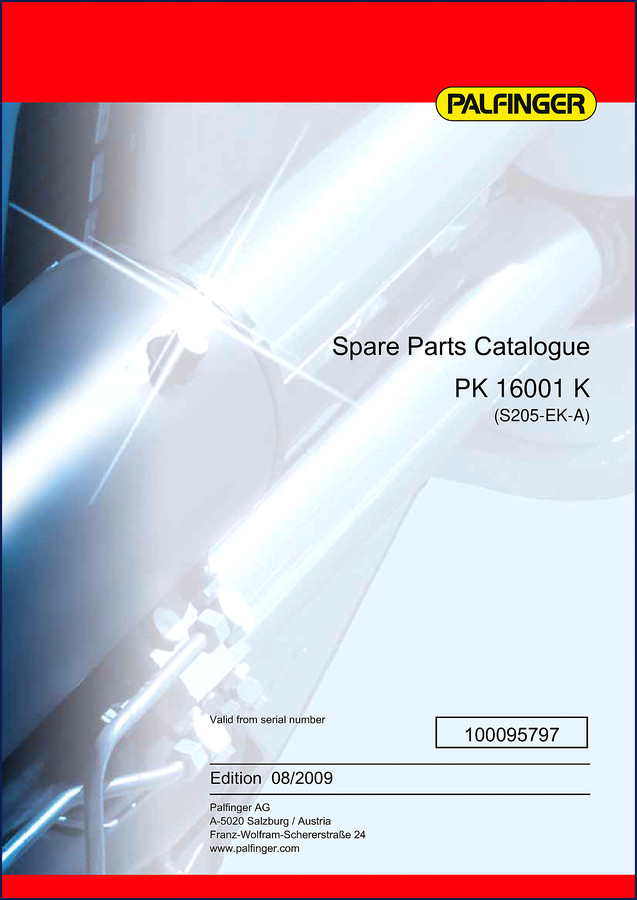

Page 1 shows the serial number range.

This catalog is based on the latest product design as of 08/2009. It covers the full crane base, including all variants of brackets, piping, supports, and attachments. Page 1 lists the valid serial number 100095797 and up. Page 2 explains how to order spare parts: you need the loader type, code, serial number, and spare part number. Skip that and you get the wrong part. The parts numbering system follows industry standards as outlined in Automotive Industry Overview.

Crane Base and Attachments – 0100 Series

The 0100 Crane Base section breaks down every subassembly. Base R1, Base R2X,R3X, attachments for PK16001-K, clamp housings, FFST attachments. I’ve had to dig into the bracket FL, bracket H, and slewing system piping. This catalog shows each part with its item number and quantity. No more guessing which hose goes where.

Hydraulic Piping Systems – Control, Lube, and Slewing

Several pages cover piping for control systems: FL with RS210, RSQ240, PVG32, VDM07, H with RS210, ISC variants. Also lube system piping. If you need to replace a control hose or a magnet valve EV4147, the part number is listed. The catalog also shows hoses for FL,I and H. Page 2 reminds you to include the code and serial number when ordering.

Support Assemblies and Stabilizer Rams – STZS3, STZY3, and More

Supports are broken down by side (A-side, B-side) and type. Stabilizer rams like UP1408B, UP2911, UP1902A are listed with their check valves and pretension valves. The catalog includes pipes, illumination, stabilizer plates, and oil tanks. You can see the entire assembly exploded so you order exactly what’s needed.

What Makes This Parts Catalog Better Than Aftermarket?

Aftermarket catalogs often combine multiple models or miss revisions. This is the original OEM publication from Palfinger AG, edition 08/2009. It’s the same document used by dealers. If you want to compare, check the Palfinger PK 7501, PK 8501 2005 Parts Catalog | OEM Manual for a similar structure. The difference is the serial number breaks and part numbers are specific to the PK 16001 K. Aftermarket copies might not include the preface or signs and symbols legend.

Ordering Spare Parts – Required Information

Page 2 of the catalog states: “To supply you with the correct parts in the shortest possible time it is necessary to inform us about following details: Loader type, code and serial number (look identification plate), Spare parts number, Required quantity.” Follow that. If you need a different model, Palfinger PK19000 1996 Parts Catalog – OEM Factory Manual is available. For the PK 18002 EH, see Palfinger PK 18002 EH 2009 Parts Catalog – Factory OEM Spare Parts. External references like Automotive Industry Overview provide context on parts numbering standards.

Can I use this catalog for a different Palfinger model?

No. This catalog only covers the PK 16001 K with serial number 100095797 and up.

How do I find the correct part number for my crane?

First, locate the identification plate on the crane base – it shows the loader type, code, and serial number. Cross-reference that with the preface on page 1 of the catalog to confirm your edition. Then find the assembly group in the crane base section (0100 series) and locate the exploded diagram that matches your configuration. Note the item index number and find the corresponding part number in the list. When ordering, provide all details as instructed on page 2: loader type, code, serial number, spare part number, and quantity. If you have multiple options like different stabilizer rams (UP1408B vs UP2911), the catalog will show which serial number range each belongs to. This eliminates guesswork and ensures you get the correct part.

This catalog saves time and money by giving you the exact part numbers from the factory. If you need to order parts for your Palfinger PK 16001 K, access the factory manual. It’s 520 pages of documented engineering, not a third-party reprint.
