Palfinger PK 12000 2000 Parts Catalog – OEM Factory Spare Parts

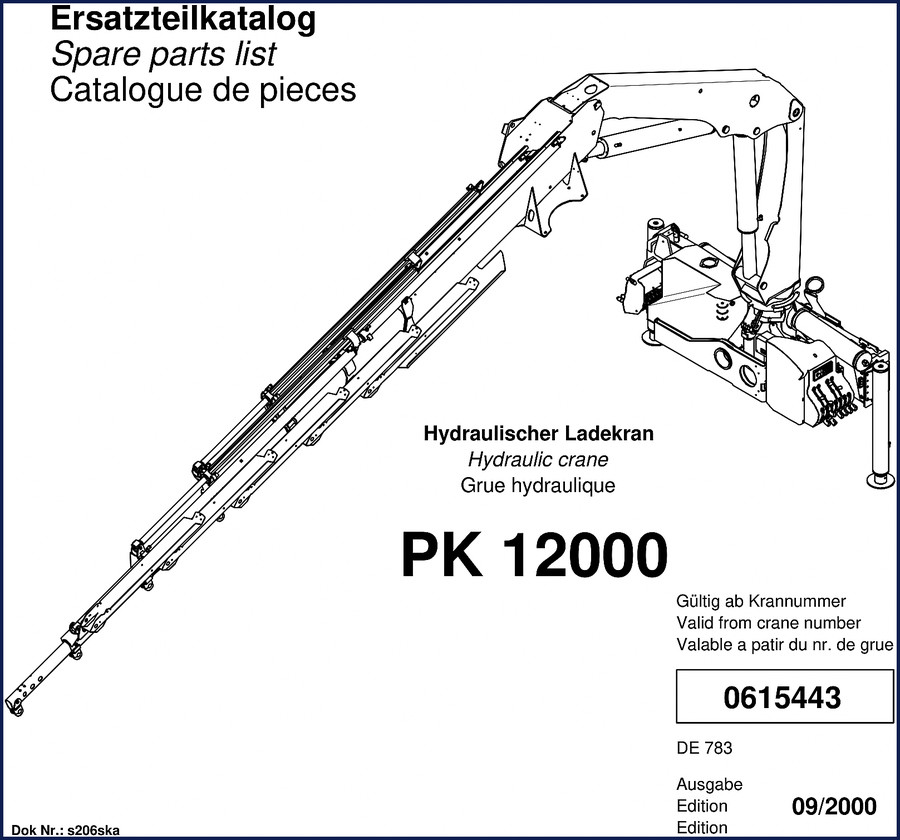

Working on a Palfinger PK 12000 hydraulic crane means you deal with some of the heaviest lift equipment out there. I have seen enough shops burn billable hours chasing the wrong seal or pin because they relied on a third-party parts list. That is why you need the factory-issued Palfinger PK 12000 2000 Parts Catalog. This is not some aftermarket rehash. It is the exact document that Palfinger used to manage spare parts for the PK 12000 series, valid from crane number 0615443 onward. You get 170 pages of OEM part numbers, indexed diagrams, and cross-referenced tables.

Kransockel (Base) – Where the Crane Meets the Truck

Section 010.0100 through 010.2700 covers the base mount assembly – Kransockel. If you are replacing the slew ring or the mounting bolts, you need the exact part numbers and torque specs. The manual lists each bracket, spacer, and fastener in an exploded view. Page 1 confirms the document number s206ska and the valid-from serial number. I have seen guys try to use generic hardware here and crack the mounting plate. Do not be that guy. The catalog gives you the OEM thread size and grade for every bolt.

Schwenkwerk (Traversing Gear) – Swivel Assembly Parts

Sections 020.0100 through 020.0700 detail the Schwenkwerk or traversing gear. This is the gearbox that rotates the crane. You will find the pinion, housing, seals, and bearing numbers. If you are rebuilding the swing drive, cross-reference the part numbers here against what you pulled out. The catalog includes a parts index at the front so you can locate any component in seconds.

Verrohrung (Piping) and Zentralschmierung (Central Lubrication)

One of the biggest headaches on a PK 12000 is tracking down the correct hydraulic hose and fitting – especially for the central lube system. Sections 030.0100 through 030.0600 cover the Verrohrung-Zentralschmierung (pipes and central lubrication). These pages show the routing, the exact length of each hose assembly, and the fitting thread specs. Do not guess on O-ring face seal or JIC. The manual includes an O-ring table and hose fitting chart later in the document. Use it.

3 Must-Have Sections for Hydraulic Cylinder Repairs

The catalog breaks down every extension and stabilizer cylinder with individual part numbers. Look at sections 040.0100 through 040.0400 for the Abstützzylinder (stabilizer rams) and sections 050.0100–050.0200 for the extension cylinders. Each page lists the piston seal, rod seal, wiper, and backup rings. I have had to chase cross-reference numbers from aftermarket catalogs and ended up with the wrong durometer O-ring. The factory part number eliminates that gamble. The manual also includes a separate PVC32 section for the control valve assemblies – Steuerventil – which are covered under sections 070.0100 to 070.1100.

Understand the Palfinger PK 12000 2000 Parts Catalog Layout

Page 2 shows the full table of contents covering Kransockel through Steuventil, plus the oil tank and oil cooler sections. The index is bilingual (German and English) with French headings. Every component group has a unique number like s206ska-010.0100. When you call Palfinger or a dealer, they expect that reference number. Having the catalog on your bench lets you give them the exact code instead of describing what it looks like. This also matters if you need to verify supersessions – some later PK models share parts, but the 2000 catalog is the baseline.

Does This Catalog Cover the PK 12000 Hydraulic Crane?

Yes. It is specifically for the PK 12000 series, edition 09/2000, valid from crane serial number 0615443. The document includes all major sub-assemblies: base, console, traversing gear, piping, stabilizer cylinders (STZS and STZY), extension boxes R1, R2, R2X, R3X, oil tank, oil cooler, control valves (F, H, RC), overload protection OSK, and the RSQ 240 RC control valve. If you work on any PK 12000 that falls into that serial range, this is the right parts catalog.

Torque Specs and Fluid Capacities – Where to Look

The catalog does not include step-by-step service procedures – that is the service manual. But it does list critical fastener torque values in the assembly diagrams for each section. For example, the mounting bolts for the slew ring are called out with their tightening torque in Nm. The O-ring table at the back gives you the cross-section and ID for every seal. If you need hydraulic fluid capacity for the oil tank, section 100.0200 shows the tank design and fill level. Use that to order the correct replacement reservoir if necessary.

Do not waste time on aftermarket cross-reference sheets. They are often incomplete or flat wrong for European-built cranes. This is the OEM source – the same document the factory uses. Pair it with the corresponding service manual and you have the complete repair package.

For related manuals, check out the Palfinger PK 7501, PK 8501 2005 Parts Catalog | OEM Manual, the Palfinger PK19000 1996 Parts Catalog – OEM Factory Manual, and the Palfinger PK 18002 EH 2009 Parts Catalog – Factory OEM Spare Parts. For background on crane safety standards, see the Automotive Industry Overview and Automotive Industry Overview.

Can I use this catalog to find parts for a PK 12000 built after 2000?

It covers crane numbers from 0615443 onward. If your crane serial is higher, many parts carry over, but cross-check supersessions.

Does the catalog include hydraulic hose lengths?

Yes. Sections 030.0100–030.0600 show Verrohrung (piping) with hose lengths in millimeters. Use these to order custom hoses.

What about seal kits for the stabilizer cylinders?

Sections 040.0100–040.0400 list every seal and wiper part number for both STZS and STZY rams. Order the kit by the base part number.

Is this a paper manual or a PDF?

Digital access. You get the full 170-page PDF with bookmarks so you can jump to any section instantly.

If you maintain or repair a Palfinger PK 12000, this catalog should be on your phone or tablet. Access the Factory Manual now and start ordering the right parts.
