Palfinger PK 11001-K 2007 Parts Catalog – Stop Ordering the Wrong Parts

If you’re elbow-deep in a Palfinger PK 11001-K and the part you pulled is sitting on the bench with no number on it, you’ve got two choices: spend an hour hunting online or open this Palfinger PK 11001-K 2007 Parts Catalog and get the factory number in thirty seconds. I’ve seen guys order a seal kit based on a caliper measurement and end up with the wrong stack height. That’s a week of downtime. This catalog fixes that.

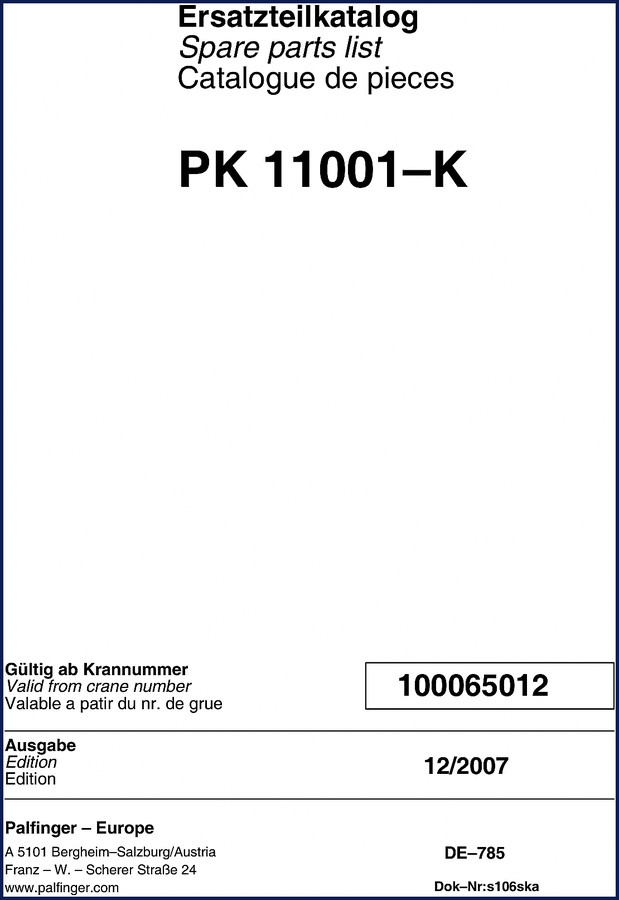

Factory Palfinger documentation. 271 pages. 2007 edition. It covers the complete PK 11001-K crane – from the stabilizer rams to the telescopic extension boxes. Every exploded view matches the real assembly, and each part gets a genuine Palfinger part number. No aftermarket cross-reference guesswork.

271 Pages of OEM Part Numbers – Not Aftermarket Guesses

The number of pages tells you nothing by itself, but 271 pages in a parts catalog means every nut, seal, hose, and bracket is broken out. The manual is trilingual – English, French, German – so the same part number appears in all three languages. Page 2 alone has the full abbreviations and symbols table: STZY = stabilizer ram – slewable, OB = overload protection – electro-hydraulic without pendulum. That page saves you from misreading a drawing.

You get sections for the main boom, the extension boxes, the swing column, the outrigger system, the control block, and the hydraulic cylinders. Each assembly has a parts breakdown with a parts list next to it. The part numbers are raw OEM – not superseded, not “replaces.” That matters when you’re calling a Palfinger dealer and they ask for the number off the document.

Abbreviations and Symbols: Decoding the Manual

Every crane builder uses their own shorthand. Palfinger puts a two-page legend at the front. R 0 means one-side extension box. R 1 means both-side extension box. R 3 means extension box telescopic. Miss that and you order the wrong section. The manual also shows control types: KL0 = top seat linear control, KK1 = top seat joystick control. If your machine has a remote control (RC), the catalog flags it.

I’ve had techs tell me “the diagram looked like the part” – and it was the wrong arm because they didn’t read the symbol. Spend two minutes on page 2 before you order anything.

Does This Parts Catalog Cover the Complete PK 11001-K Crane?

Yes, from crane number on. The edition starts at a specific crane serial (noted on page 1 as “Valid from crane number”). If your PK 11001-K falls in that range, this catalog matches. It includes all standard variants: stabilizer rams (rigid or slewable), extension box types R0 through X, overload protection options (OS, OE, OM, OB, OFB, OSE, OFS, OSK, OSK(M), SBM). Anything after the 2007 model year needs a later edition, but for 2007 and earlier, this is the one.

The catalog also lists parts for control variants: base control (F), top seat (H), cabin (J), high stand (I), and remote (RC). Each control type has its own subset of parts. The book doesn’t leave you guessing which lever assembly goes with which cab.

3 Reasons to Trust Factory Palfinger Documentation

Number one: the part numbers are live. When you call a dealer and say “I need 100065012,” they pull it. Number two: the drawings show the assembly order – you see how the bushing sits in the clevis before you reassemble. Number three: the cross-reference symbols (like → to crane number, (1–16) for component groups) are consistent across every Palfinger crane. Once you learn them on the PK 11001-K, you can read any older Palfinger catalog.

That said, this is a Parts Catalog, not a service manual. No assembly torque specs, no hydraulic pressure checks, no wiring diagrams. For those, you need the Palfinger PK 7501, PK 8501 2005 Parts Catalog | OEM Manual”>Palfinger PK 7501, PK 8501 2005 Parts Catalog | OEM Manual or the Palfinger PK19000 1996 Parts Catalog – OEM Factory Manual”>Palfinger PK19000 1996 Parts Catalog – OEM Factory Manual for bigger cranes. But if you’re rebuilding the hydraulic block on a PK 11001-K and need the exact seal kit part number, this catalog is the only reference that matters.

Other factory resources you may find useful: Palfinger PK 18002 EH 2009 Parts Catalog – Factory OEM Spare Parts”>Palfinger PK 18002 EH 2009 Parts Catalog – Factory OEM Spare Parts for later models. And if you’re interested in the broader context of heavy-equipment documentation, check the Automotive Industry Overview on Wikipedia – not crane-specific, but the same principles of OEM data apply. Also read the Automotive Industry Overview”>Automotive Industry Overview for general insight.

FAQ – Palfinger PK 11001-K 2007 Parts Catalog

Is this the same as a service or repair manual?

No. This is a parts catalog only. It gives part numbers and exploded views, not step-by-step repair procedures. You need both for a full rebuild.

What languages are in the manual?

English, French, and German. The part numbers are universal, but the descriptions and symbols appear in all three. The table of abbreviations on page 2 is trilingual.

Does it cover the hydraulic cylinders and control block?

Yes. The catalog includes complete breakdowns for every cylinder, the rotary actuator, the control valve block, and the stabilizer rams. Each cylinder assembly has its own parts list with seal kit numbers.

How recent is the 2007 edition? Will it work for a 2009 crane?

The 2007 edition is valid for cranes built up to and including 2007 (from a specific starting serial). For a 2009 machine, you need the later edition – Palfinger updates both parts and part numbers after major revisions.

Stop wasting time matching parts by eye. Access the Factory Manual for the Palfinger PK 11001-K and get the OEM part numbers you need. Every seal, every hose, every pin – it’s in there. Your crane will be back on the truck faster, and you won’t have a box of wrong parts sitting in the corner.
