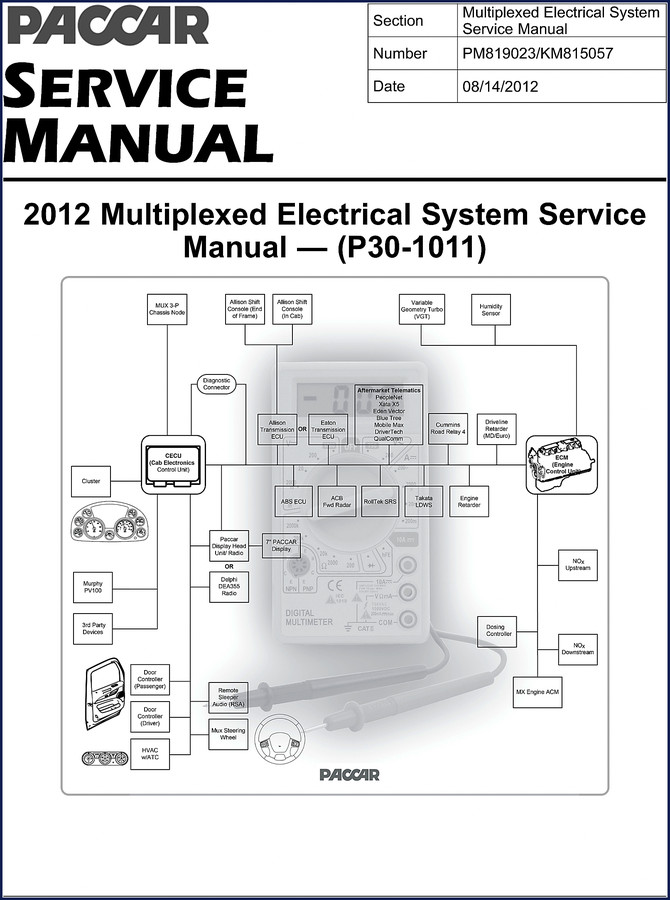

Paccar P30-1011 2012 Service Manual

You’re staring at a dead display in a 2012 PACCAR chassis. The aftermarket wiring diagram you printed has a CAN line labeled wrong. Now you’re burning billable time. I’ve been there. The only cure is the OEM book — the Paccar P30-1011 2012 Service Manual from Paccar themselves. This 104-page document is what the dealer techs pull up when they hit a multiplexed electrical fault. It’s not a reprint. It’s the factory PDF, published 08/14/2012, part number PM819023/KM815057.

The Paccar P30-1011 2012 Service Manual – Factory Data Only

You get the full Safety section (page 1) with important notes about high-voltage isolation and battery disconnect. The Applies To section lists which models and build dates this multiplexing overview covers. The Exploded View on page 3 shows the exact location of the control unit — frame rail, cab harness, the whole layout. Don’t guess where that CECU sits; the diagram puts it in clear view.

Software P30-1011 Features: What Changed in 2012

Page 4 details the What’s New section, specifically the Software P30-1011 Features. This is where Paccar documented the changes from the previous multiplexed system. If you’re swapping a CECU or updating firmware, read this first. It lists parameter part numbers — critical when ordering replacement modules.

Diagnosing the CAN Lines: Factory Procedure

The Troubleshooting chapter starting on page 12 is the heart of this manual. You get step-by-step for each CAN network: VCAN trunk, VCAN branch, ECAN, TCAN, CCAN (with and without multifunction steering wheel), ACAN (with PACCAR MX engine), ICAN, BCAN, DCAN, FCAN. Also a procedure for locating a failed resistor or an open between two resistors. That’s the kind of detail you don’t get from a generic scan tool video.

A flaky termination resistor will drive you nuts.

Terminating Resistor Test – Do Not Skip This Step

Page 12 includes the Terminating Resistor Test Procedure. I’ve seen guys replace an entire CECU because they didn’t check the termination. This manual tells you the exact resistance values and where to probe. Use a digital multimeter set to ohms, measure between CAN high and CAN low with the battery disconnected — the factory spec is right there.

Where Does the CECU Live? (Exploded View Reference)

The Cab Electronic Control Unit (CECU) location is mapped on page 3 in the Exploded View. It also shows the Electric Over Air Switches and the display diagnostic code access point. If you need to pull codes, the How It Works chapter on page 8 explains the process. Don’t rely on memory; use the factory diagram.

Why OEM Beats Aftermarket for Electrical Diagnostics

I’ve tested aftermarket manuals that claimed to cover Paccar multiplexed systems. They omitted the Software P30-1011 Features section entirely. They showed incorrect terminating resistor locations. This OEM manual came straight from Paccar’s publication number PM819023/KM815057. It’s the same document used at the dealership. When you’re dealing with CAN bus communication faults, a wrong wire color or node address will cost you hours. The factory spec is your insurance.

If your truck is a 2010 model year, you’ll want the PACCAR 2010 Multiplexed Electrical System Service Manual instead — the system architecture changed in 2012. For later CECU3 units, see the PACCAR CECU3 2010 Electrical System Service Manual. The aftertreatment system is covered in the PACCAR Aftertreatment System Operator’s Manual.

This manual integrates with components like the Manual Transmission interface if equipped with Eaton or Allison. Check the Manual Transmission section for clutch switch diagnostics.

Does this manual cover the physical engine repair for the PACCAR MX?

No, that’s covered in the separate engine service manual.

How do I diagnose a CCAN fault without the multifunction steering wheel?

Turn to page 12 and find the section titled Diagnosing the CCAN (without Multifunction Steering Wheel). You’ll need a digital multimeter, the vehicle wiring diagram from the manual, and the terminating resistor values from the Specifications chapter. The procedure involves measuring resistance at the CCAN splice pack, checking continuity on each branch, and isolating the failed device. Don’t skip the safety isolation steps listed on page 1. I’ve used this exact procedure to find a chafed wire behind the dash in under 45 minutes.

That’s the difference between guessing and knowing. This 2012 Paccar P30-1011 Service Manual gives you the factory wiring, the step-by-step CAN diagnostics, and the parameter data you need to get the system back online. Ignore the aftermarket knockoffs. Access the Factory Manual from AutoRepairManuals and put it on your tablet next to your scan tool.
