Nissan Primera Service Manual – Factory Specs for Driver Information & Electrical Systems

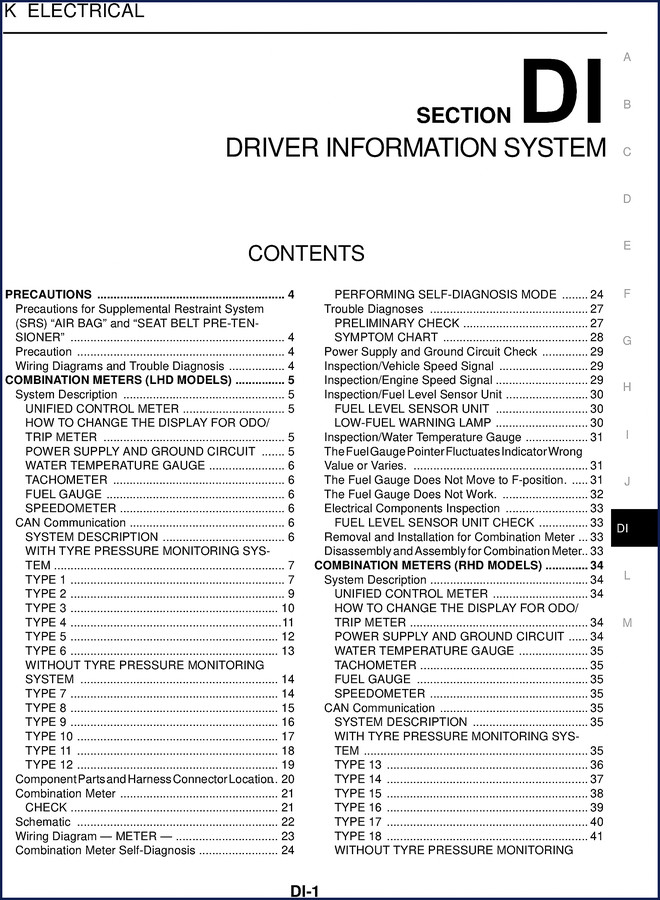

Listen, I’ve seen more hacked-up wiring behind dashboards than most techs see in a lifetime. If you’re working on a Nissan Primera and you don’t have the factory Service Manual open on the bench, stop. You’re guessing. Guessing costs you time – and with the SRS system, it can cost you teeth. This is 144 pages of Nissan’s own documentation, not some third-party reprint. It covers exactly what the dealership tech would have used.

SRS Precautions: Why You Disconnect the Battery First

The manual opens with Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”. Page 4. If you skip this section and go straight to the wiring diagram, you’re playing roulette. The procedure is simple: disconnect the negative cable, wait three minutes minimum for the backup capacitor to drain, then work. I’ve seen a tech get clocked by an airbag because he was in a hurry. The manual doesn’t let you gloss over it – it’s right there in bold. Respect it.

Combination Meter Self-Diagnosis – 24 CAN Types

This is the meat of the manual: the Driver Information System. For both LHD and RHD models, it breaks down the CAN communication into 24 distinct types – 12 with Tyre Pressure Monitoring, 12 without. Each type has its own system diagram and input/output signal chart. If your Primera’s fuel gauge is bouncing or the tachometer is dead, you don’t need to replace the whole cluster. The manual’s self-diagnosis mode (page 24) walks you through error codes “Error 1” and “Error E”. It even includes calibration steps for the combination meter. That’s hours of diagnostic time saved.

Nissan Primera Service Manual – Coverage for LHD and RHD Models

Both steering sides are covered in separate sections. LHD models start at page 5, RHD after that. The system descriptions are identical for each: unified control meter, how to change the odo/trip display, power supply and ground circuit, water temp gauge, tachometer, fuel gauge, speedometer. If you’re swapping a cluster between a UK-spec and US-spec Primera, this manual gives you the exact wiring differences. You won’t find that in a generic aftermarket book.

Wiring Diagram – METER –: What You Get on Page 23

Page 23 is the full wiring diagram for the meter. It’s not a blurry scan – it’s a clean factory schematic with each connector pin labeled. The manual also includes Component Parts and Harness Connector Location (page 20) so you can physically find the plug you need to back-probe. For the fuel system, the manual has a dedicated Inspection/Fuel Level Sensor Unit section with resistance checks for the low-fuel warning lamp. If the pointer won’t sweep to F, start there.

Fuel Gauge Diagnostics: Pointer Fluctuation and Calibration

The manual doesn’t just tell you to replace the sending unit. It lists specific symptoms: “The Fuel Gauge Pointer Fluctuates Indicates Wrong Value or Varies”, “Does Not Move to F-position”, “Does Not Work”. Each symptom has a trouble diagnosis path. The fuel gauge calibration is part of the combination meter self-diagnosis – you can reset the needle sweep without pulling the cluster apart. That kind of detail is why OEM documentation matters.

Source Validity: OEM vs Aftermarket Wiring Docs

I will not touch a third-party wiring diagram for a Primera. I’ve been burned by misprinted pinouts that referenced the wrong year. This manual came from Nissan’s engineering files – you can verify it by the part numbers and the SRS warning language. Compare it to any $20 access from a generic site. The difference is component locations that actually match your VIN. If you want to do this job once, use the factory source. For related applications, check out the Nissan Xterra 2005 Service Manual – OEM Factory Spec if you work on that platform, or the Nissan 60 1967 Service Manual – Original Factory Bulletin for vintage stuff. For those dealing with older Nissan powertrains, the Nissan L60, L60-U, KL60-U 1968 Service Manual – Factory Specs has the engine specs you need.

Want a broader look at how OEM service manuals evolved? Read the Automotive Industry Overview for context. And if you’re not clear on transmission basics, the Manual Transmission article covers the fundamentals.

FAQ – Four Questions You’re Probably Asking

Does this manual cover the fuel gauge system?

Yes. It covers the fuel level sensor unit, low-fuel warning lamp, and gauge pointer diagnostics. There are specific inspection procedures for when the gauge doesn’t move to F or fluctuates.

What is the SRS precaution?

Disconnect the battery and wait at least three minutes before working near airbags or pretensioners. The manual explains that the backup capacitor can hold charge for up to three minutes – skipping this step risks accidental deployment. That’s a broken wrist or worse. Do not skip it.

How many pages?

144 pages.

Can I use this for RHD models?

Yes. The manual has a separate section for RHD combination meters, with its own CAN communication types (13–24) and wiring diagram. Both steering sides are fully documented.

Don’t trust your Primera’s electrical system to a sketchy PDF from a forum. Get the real thing – the factory Service Manual Nissan used on the assembly line. 144 pages of verified torque specs, wiring colors, and diagnostic flowcharts. Access the Factory Manual and keep it on your tablet next to the car.
