Mitsubishi V5MT1 1995 Technical Manual – What You Get on the Bench

I’ve lost count how many times I’ve seen someone slap a V5MT1 back together with a torque wrench that never saw a calibration, or worse, used a generic aftermarket PDF that listed the wrong snap ring thickness. That’s how you get a 2-4WD synchronizer that grinds on the first shift out of the shop. This Mitsubishi V5MT1 1995 Technical Manual is the exact binder Mitsubishi issued to dealers. 112 pages, spiral-bound in PDF form, with the same Feb. 1995 revision stamp you’d find on a service department shelf. If you’re rebuilding one of these manual transmissions, you want this, not a scanned reprint from some third-party site.

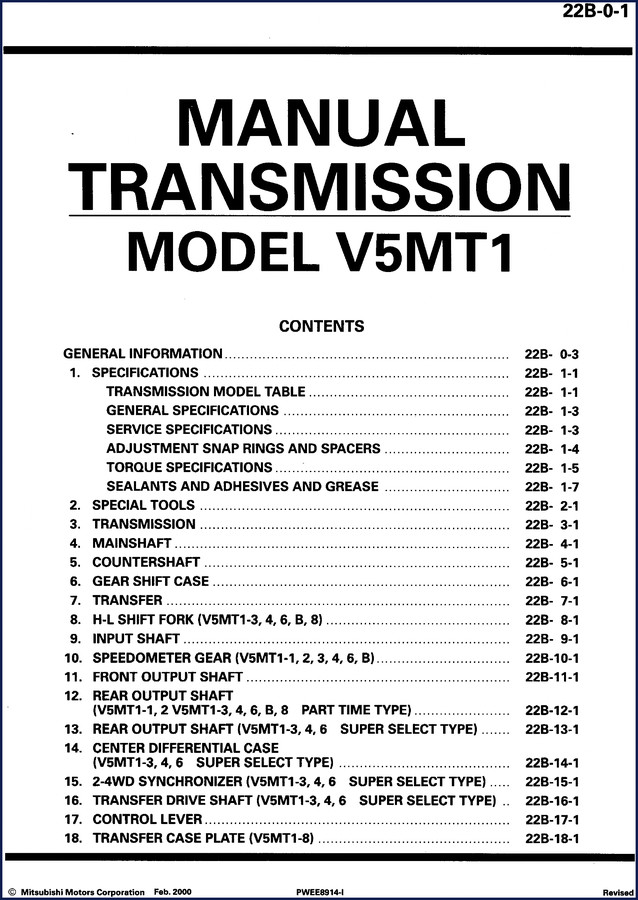

The table of contents alone tells you this isn’t a generic overview. You get sections for mainshaft, countershaft, gear shift case, transfer case, and separate chapters for every variant: V5MT1-1, -2, -3, -4, -6, -B, and -8. Part-time type, Super Select type — it’s all there. Need the torque for the transfer drive shaft bolts? Page 73 shows the exact ft-lb figure. Want to know which adjustment snap ring to use for a countershaft end play of 0.002–0.008 in? The spec table on page 22B-1-4 gives you the part numbers and thickness ranges. That kind of data doesn’t exist in a Haynes manual.

Torque Specs and Sealants – Page 22B-1-5

Back when I started, we used to torque transmission bolts by feel. That ended the day I snapped a bellhousing bolt in a customer’s truck. Mitsubishi lists every fastener in this Technical Manual — from the 15 ft-lb for the control lever bracket to the 54 ft-lb for the rear output shaft companion flange nut. They also specify the sealants: Three Bond 1215 for the case halves, Molykote 44 for the shift fork pads. If you use the wrong sealant, you’ll be pulling the case again in 6 months. The manual saves you that headache.

7 Systems Covered – From Input Shaft to Transfer Case

This isn’t a one-size-fits-all guide. The 1995 edition breaks the V5MT1 into 18 chapters, each covering a major assembly. You get:

• General Information – how to identify your variant by the model plate
• Special Tools – list of Mitsubishi part numbers for pullers, holders, and seal drivers
• Transmission – complete disassembly/reassembly with bearing preload procedures
• Mainshaft and Countershaft – gear stack order, snap ring selection, shim calculations
• Gear Shift Case – shift rail and detent ball adjustment
• Transfer case (7 system chapters) – both Part-Time and Super Select configurations
• 2-4WD Synchronizer – wear limits and engagement tooth clearance specs

Every section has step-by-step instructions and cross‑sectional drawings. No artist’s renderings — factory assembly diagrams.

Does This Manual Cover the Fuel System?

No. This is strictly the Manual Transmission — model V5MT1. If you need engine specs, grab the Mitsubishi Eclipse 1994 Technical Manual – Factory Specs & Torque Data or the Mitsubishi Galant Technical Manual – MPI 4G63 DOHC Factory Specs. For charging system diagnostics, the Mitsubishi Engine Electrical Charging System Manual has the alternator load test data. Keep the scope focused: this manual is for the transmission and transfer case only, and it covers them better than anything aftermarket.

Who Should Buy This Manual?

DIYers who have rebuilt a manual transmission before and want the factory clearance specs. Home garage guys who own a Mitsubishi Montero, pickup, or any vehicle with the V5MT1 — you need the snap ring adjustment data to avoid a $400 parts mistake. Professional mechanics who bill by the hour: this manual eliminates guesswork. You’ll waste zero time hunting for the correct rear output shaft bearing preload because it’s right there on page 22B-1-3. It also lists the special tools — if you’re renting a shop space, you can price out whether buying the MUT‑II adapter is worth it for the shift fork position sensor test.

OEM vs Aftermarket – Why Factory Documentation Matters

I’ve seen aftermarket “repair manuals” that show a 1998 transmission diagram for a 1995 case. The bolt patterns are different. The snap ring grooves aren’t the same width. When you’re torquing the transfer case bolts, you need the exact ft-lb for the Super Select rear output shaft — not a generic “tighten securely” note. This Technical Manual is the original Mitsubishi Motors Corporation document, revision PWEE8914-D from Feb. 1995. No copied content, no ambiguous drawings. If you want to understand the Manual Transmission fundamentals, that’s fine, but for rebuild specs you need the factory source. The Automotive Industry Overview might give you context, but this manual gives you the numbers.

How many pages is the manual?

112 pages covering the V5MT1 transmission family.

What torque specifications are listed?

All of them. Page 22B-1-5 lists every fastener torque from 12 ft-lb for small bolts up to 54 ft-lb for output shaft nuts. Also includes sealant and grease specs for case halves, shift forks, and bearing preload.

Does it cover the Super Select transfer case?

Chapters 14, 15, and 16 are dedicated to the center differential, 2-4WD synchronizer, and transfer drive shaft for Super Select. Part-time type is covered in chapters 12 and 18.

Can I reuse old snap rings after disassembly?

The manual tells you the allowable wear limits. You measure the snap ring thickness with a micrometer and compare to the chart on page 22B-1-4. If it’s below spec, order the next oversize. Don’t reuse a worn ring — it’ll pop out under load.

Access the Factory Manual and get the real data before you start wrenching. Your transmission will thank you, and so will your wallet.
