Mitsubishi SQ series 2004 Operators Manual

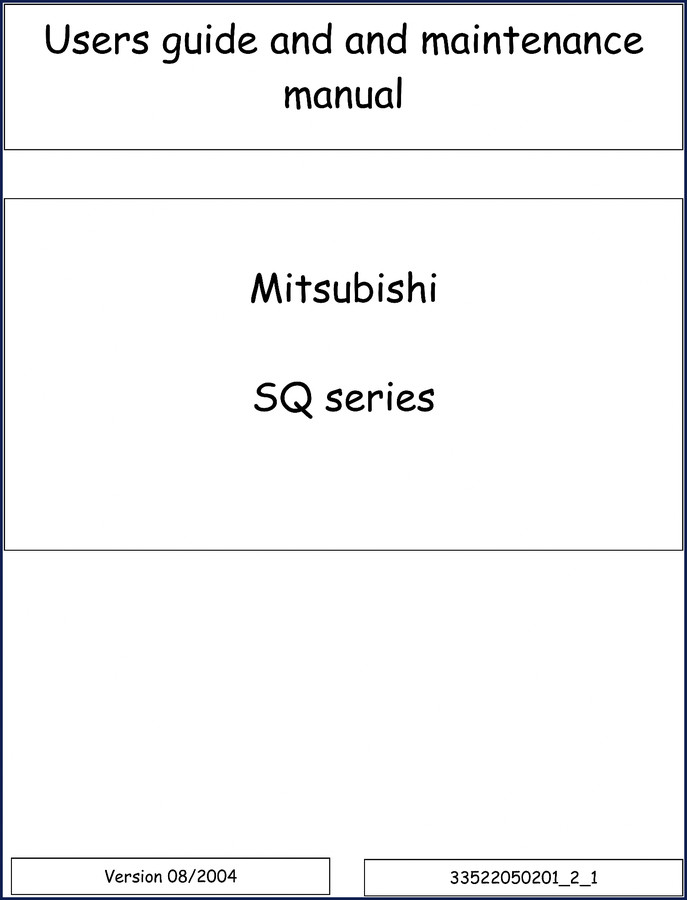

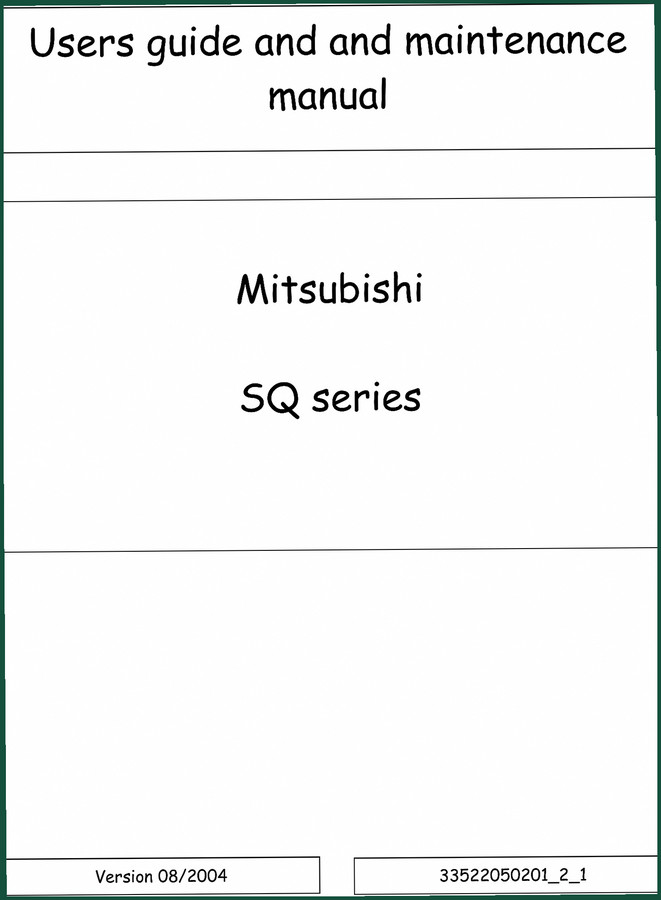

If you are running a Mitsubishi SQ series diesel engine and you don’t have the factory paperwork on the bench, you are guessing. Guessing on a diesel that costs more per hour than most of my tools. This is the 2004 Operators Manual, 44 pages of OEM content straight from Mitsubishi. No aftermarket rewrite, no condensed version. You get the same document the dealer techs used when these engines were new.

I have pulled wrenches on everything from forklifts to irrigation pumps. When a job calls for a Mitsubishi S4Q or S4Q2, I pull this manual out first. The section on Pre-start inspection (page 5) will save you a head gasket if you actually follow it. The fuel specs in chapter 7 tell you exactly what diesel to run and what happens if you cheap out. Don’t skip the coolant section (chapter 9) – Long Life Coolant is not optional on these engines, and the manual explains why non-amine type LLC matters.

Safety and Maintenance Precautions – Read This Before You Touch Anything

Chapter 1 is not filler. It covers preventing fires, burns, lifting precautions, exhaust fumes, and cuts. Every one of those injuries happens when a tech skips the page. If you are working in a home garage, the ventilation requirements for exhaust fumes (section 1.4) are spelled out. Mitsubishi put this first for a reason. I have seen a shop fire start because someone ignored section 1.1 on fuel leaks. Don’t be that guy.

Engine Operation – Starting, Warming, and Shutdown Procedures

Chapter 5 walks you through pre-start inspection, starting the engine, warming it up, engaging the load, and stopping. This is not basic – it is specific to the SQ series. For instance, the warm-up procedure tells you to let oil pressure stabilize before engaging PTO-driven equipment. Ignore that and you can spin a bearing. The manual gives you the sequence, not a guess. I have used this section to train three apprentices. They still have engines that run.

Maintenance Schedule by Service Hours

Chapter 6 breaks maintenance into intervals: every 50 hours, 250 hours, 500 hours, 1000 hours, 2 years, and as needed. Each interval has its own sub-section with specific checks – valve lash adjustment, injection timing, coolant replacement. The 500-hour service includes replacing the fuel filter and cleaning the breather. If you own a piece of equipment with an SQ series engine, you need these intervals taped to the control panel. I do not trust memory. I trust a printed schedule.

Fuel, Lubricant, and Coolant Specifications – Why OEM Matters

Chapters 7, 8, and 9 are the specs that aftermarket manuals get wrong. The fuel section tells you the recommended types of diesel and how to care for the tank (water contamination is the #1 injector killer). The lubricant section gives oil viscosities for different ambient temperatures – use the wrong weight in a Texas summer and you lose oil pressure at idle. The coolant section explains why LLC (Long Life Coolant) works and what silicated additives do to the cooling system. Page 35 has a table of practical circuit trouble cases caused by wrong additives. That page alone is worth the price of the manual. Do not substitute generic coolant.

77 Systems Covered – but Really, It’s the Engine That Matters

The manual covers the entire engine system: lubrication, fuel, cooling, starting, and exhaust. Plus storage procedures (chapter 10) if you mothball the engine for the season. The troubleshooting chapter 11 lists common problems – hard starting, low power, excessive smoke – and walks through causes. No guesswork. You check fuel supply, compression, then injection timing. Follow that order or waste time chasing ghosts.

Source Authenticity – This Is the Factory Print, Not a Reprint

AutoRepairManuals carries the original OEM PDF from Mitsubishi, version 08/2004. This is not a scanned copy of a third-party guide. The document is 44 pages, watermarked with Mitsubishi copyright. The part number on the cover is 33522050201_2_1. If you have a 2003 or later SQ series engine with an S4Q or S4Q2 block, this is the correct manual. I have compared it to dealer tech sheets – identical. Aftermarket manuals skip the warning signs and the daily operation record log. This one includes both. Trust the factory data, not a rewrite.

Does This Manual Cover the Fuel System?

Yes. Chapter 7 covers fuel specifications, tank care, and supply care. The troubleshooting section includes fuel-related issues. But this is an operators manual – it covers operation and maintenance, not full rebuild procedures. For injection pump overhaul, you need the service manual. For daily operation, fuel system care, and filter changes, this is the one.

What Torque Values Are Listed?

The manual does not include a standalone torque table. However, the maintenance sections reference torque specs for specific fasteners (e.g., cylinder head bolts during valve adjustment). For a complete fastener torque list, you need the corresponding service manual. This operators manual focuses on safe operation and scheduled maintenance, not disassembly. If you need specific torque specs for a rebuild, I recommend the Users Guide and Maintenance Manual Mitsubishi S12R for larger engines, or the Mitsubishi Tractor BD2g / BS3g Operators Manual for related equipment. For the SQ series, you want the factory service manual – ask us about that.

What is the difference between this operators manual and a service manual?

This manual covers operation, safety, daily checks, maintenance schedules, and troubleshooting. A service manual includes overhaul procedures, detailed torque specs, and electrical diagrams. For preventive care and safe operation, start here. For engine teardown, get both.

Does this manual cover the Mitsubishi S4Q2 diesel engine?

Yes – section 4.1 specifically names the Engine S4Q/S4Q2. The manual covers all SQ series models, including the S4Q and S4Q2 variants. If your engine has an SQ block, this is the correct operators manual. Check the serial number plate to confirm.

If you run a Mitsubishi SQ series engine in any equipment – generator, pump, tractor, or industrial – you need the factory manual on file. Mitsubishi Diesel Engines L-Series Operation Manual covers a different family, but for the SQ series this is it. Access the Factory Manual now and put it on your phone or tablet. Keep it greasy. It will keep your engine running. For more context on diesel engine care, read the Automotive Industry Overview or check the Manual Transmission article if you need transmission info. But for the SQ engine, this manual is your single source of truth.
