Mitsubishi MT180D Parts Catalog – OEM Factory Specs

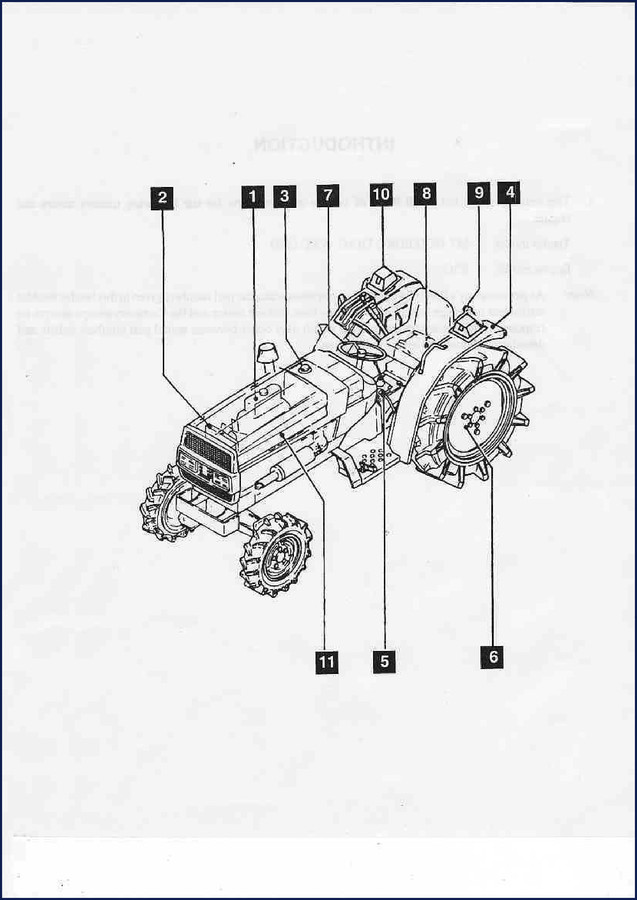

Mitsubishi MT180D Parts Catalog – if you’ve ever ordered a part that didn’t fit because the aftermarket catalog had a wrong number, you know the pain. That’s why this 140-page factory document exists. I’ve stood at the parts counter with a cylinder head gasket that was off by a quarter inch because some third-party reprint swapped the casting number. This catalog puts the Mitsubishi engineering team’s original exploded diagrams and part numbers in your hands. Nothing re-drawn, nothing guessed. You get the same schematics the dealer uses. Page 6 covers the cylinder head and its components. Page 13 gives you the fuel injection pump breakdown. That level of detail stops the parts-ordering headache cold.

Engine Parts: What You Get on Page 6

Fig. 103 – Cylinder Head assembly – you’ll see every bolt, gasket, and valve component with the original Mitsubishi part number. The catalog splits the engine into crankcase (page 2), oil pan and gear case (page 4), main moving parts (page 8), timing parts (page 10), and so on. If you’re rebuilding an MT180D, you can pull the head off, flip to page 6, and order exactly what you need. I’ve seen guys try to match a valve spring by eye – ends up buying three different springs and still getting it wrong. This kills that problem.

3 Sections That Save You the Most Time

The Fuel System section (page 39) covers the entire supply side: lines, filters, injection pump components. The Hydraulic System (page 80) breaks down the lift, control valve, lines, and pump – all separate figures with callouts. The Electrical System (page 94) gives the wiring diagram and every electrical part from the meter panel to the starter. When a customer brings you a tractor that won’t start, you can go straight to page 94 and check the wiring layout instead of chasing ghosts. That’s time savings you can bill for.

OEM vs Aftermarket: Why the Difference Matters

Aftermarket parts catalogs often redraw the diagrams and re-assign part numbers to fit their inventory. Worse, they sometimes copy from an earlier revision and miss changes. This catalog is a direct scan of the original Mitsubishi printed document. The part numbers match the factory system exactly. If you want to verify a part, you can call a dealer and read the number from page 103 (name plate section) – they’ll confirm it. I don’t trust aftermarket documentation on principle. This is the source. No reprints, no copy errors.

Does This Cover the Cylinder Head and Fuel Injectors?

It does. The cylinder head assembly is on page 6 with fig. 103. The fuel injection pump is on page 13 (fig. 107), and the nozzle & nozzle holder are on page 16 (fig. 108). The catalog also includes the governor parts (page 18), which many aftermarket sources skip entirely. If you’re rebuilding a fuel system on an MT180D, you get the factory breakdown for every seal, spring, and plunger.

Get the Right Tool List for Your Build

The last pages list the TOOLS section from the group index – not just part numbers, but the specialized tools Mitsubishi built for this tractor. You’ll see pullers, holders, and service tools. Having that list means you don’t show up to a job without the right gear. I’ve lost count of hours wasted improvising a tool because the manual wasn’t there. This catalog fixes that.

Look at the group index: it covers the entire machine – engine, chassis, fuel system, frame, power line, axle, driving control, hydraulic system, working equipment, electrical system, name plate, tools, implement attachments, and even the rotary (side drive). The numerical parts index at the back lets you start with a part number and find the diagram. That’s the fastest way to cross-reference when you have a broken part in hand.

One more thing: if you are working on the MT160 tractors, check the MITSUBISHI MT160 MT180 Instruction Book. For the S3L2 engine, the Mitsubishi S3L2 2009 Parts Catalog – OEM Factory Specs will give you that specific block. And for larger industrial engines, the Mitsubishi S6A3-PTA PTK 1991 Parts Catalog – Factory OEM Specs is the right document.

This catalog is the backbone for any MT180D rebuild. I’ve used it to order a ring set, a radiator, and a steering box – all came in correct the first time. The Automotive Industry Overview tells you that OEM data is critical for reliability. And the Automotive Battery may seem unrelated, but the electrical section in this catalog gives you the correct battery terminals and wiring. Every part counts.

Can I use this catalog to order parts from a dealer directly?

Yes, the OEM part numbers match Mitsubishi’s system.

What if I find a part number in the numeric index but the diagram is unclear?

Each part in the numeric index references the figure number and page where the diagram appears. For example, if you look up a bolt in the index, it tells you which fig. (say fig. 105) and the page number. You flip to that page and see the exploded view with the exact location. The index covers all 140 pages, so you can start with a number you have from the old part and find its place in the assembly. That’s faster than guessing which section it belongs to. I’ve used it to find obscure seals that other catalogs simply omit.

Stop ordering wrong parts. Get the factory numbers that match the machine. Access the Factory Manual and keep it on your tablet or printed in the shop. Your parts counter will thank you – and so will your wallet.
