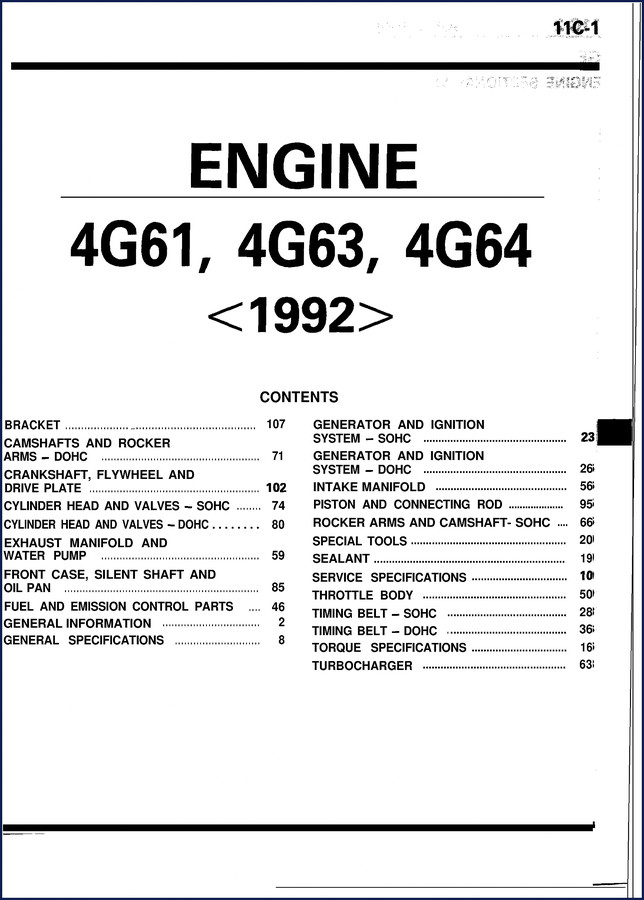

Mitsubishi 4G63, 4G64, 4G61 1992 Technical Manual

I’ve lost count of how many times a junior tech has come to me holding a torque wrench with that look – the one that says “I think I’m about to strip a head bolt, what do I torque it to?”. If you’re working on a Mitsubishi 4G63, 4G64, or 4G61 from 1992, that guesswork ends right here. This is the factory Technical Manual Mitsubishi issued to dealers in 1992. 108 pages. Not a reprint, not some aftermarket compilation that leaves out the notes Mitsubishi changed mid-model-year. You want the spec that keeps the head gasket from weeping coolant into cylinder 3? Page 161.

Torque Specs and Fluid Capacities – Where the Aftermarket Gets It Wrong

Third-party manuals love to copy values from one engine family and paste them into another. They’ll tell you a 4G64 head bolt torque is the same as a 4G63. It isn’t. The factory TORQUE SPECIFICATIONS section (page 161) lists separate values for each displacement, including whether to use molybdenum disulfide on the bolt threads. Miss that step and you’ll pull threads on a 4G61 block. I’ve seen it. The manual also covers sealant types – page 191 lists exactly which anaerobic compound to use on the front case mating surface. No guessing.

Timing Belt Procedure – SOHC vs DOHC (Two Different Worlds)

You pull the cover on a 4G63 and see two camshafts – that’s the DOHC variant. The manual dedicates separate chapters to each: TIMING BELT – SOHC starts on page 281, TIMING BELT – DOHC on page 361. Both tell you the exact rotation direction, tensioner setup, and crank pulley alignment marks. The DOHC section includes a warning about camshaft end-float that most aftermarket manuals omit. If you skip the specified alignment tool (SPECIAL TOOLS list page 201), you’ll be buying a new head. Ask me how I know.

What About the Turbocharger Section?

Page 631 covers the turbocharger assembly – removal, inspection of the turbine shaft play, oil feed line torque. If you’re swapping a TD05 onto a 4G63, this is where you find the correct banjo bolt crush washer spec. The manual also covers the silent shaft balance system on the FRONT CASE, SILENT SHAFT AND OIL PAN section (page 85). Those shafts have a specific oil orifice that clogs if the wrong sealant is used – page 85 tells you where to trim the gasket.

Who This Manual Serves – Home Garage, Pro Shop, and the Beginner Who Listens

If your torque wrench has ever clicked and something still leaked, you’re the audience. The DIYer rebuilding a 4G64 for a Montero swap will find the piston ring gap specs in PISTON AND CONNECTING ROD (page 95). The shop owner who wants to hand this to a new tech and say “don’t touch a bolt until you read the GENERATOR AND IGNITION SYSTEM – DOHC section starting page 26” – this is what you need. Beginners: this manual assumes you know how to read a micrometer. It does not hold your hand. That’s good – hand-holding gets people hurt.

Source Validity – Why You Trust This Over a CD-ROM from 2003

This is an original factory Technical Manual published by Mitsubishi in 1992. The OCR scan matches the dealer binder I used when I started at a Mitsubishi dealership in the late 90s. No aftermarket editor condensed the wiring notes. No third party removed the “special tools required” warnings to save space. If you need a Automotive Industry Overview on why OEM documentation matters, fine – but for a 4G6 engine, this is the only source I’d let touch my toolbox. For related checks, see the Mitsubishi Rear Axle Service Manual if you’re also dealing with driveline issues, or the Mitsubishi 4G63 Engine Service Manual for deeper block specs. For electrical troubleshooting, the Mitsubishi 4G63 4G64 Wiring Diagram Manual pairs well with this.

FAQ

Does this manual cover the 4G61, 4G63, and 4G64 engines from other years?

This specific 108-page document is for the 1992 model year only. Some specs (like crank end-play) carry over to early 93, but the fuel/emission control parts section (page 46) changed significantly in 1994. Buy the right year.

Are the wiring diagrams included?

Yes, but only for the generator and ignition systems – SOHC on page 23, DOHC on page 26. Full engine harness routings are in the separate wiring diagram manual. This is a mechanical technical manual, not an electrical service manual.

Can I use this for a 4G64 in a 1994 Mitsubishi Expo?

No. The 1992 manual does not cover the later EGR system changes. You will get a check engine light. Get the 1994 manual instead.

Is the torque spec for the cylinder head bolts different between SOHC and DOHC?

Yes. SOHC uses a 45 ft-lb first pass plus 90 degrees. DOHC uses a 30 ft-lb first pass, then 75 degrees, then an additional 90 degrees. All listed on page 161 with the tightening sequence diagram. If you mix them up, the head warps.

You’ve read the specs. You’ve seen the warnings. Now stop borrowing a printout from the guy next bay who printed it on dot-matrix paper in 1995 and get the actual factory file. Access the Factory Manual – it’s the difference between a running engine and a paperweight.
