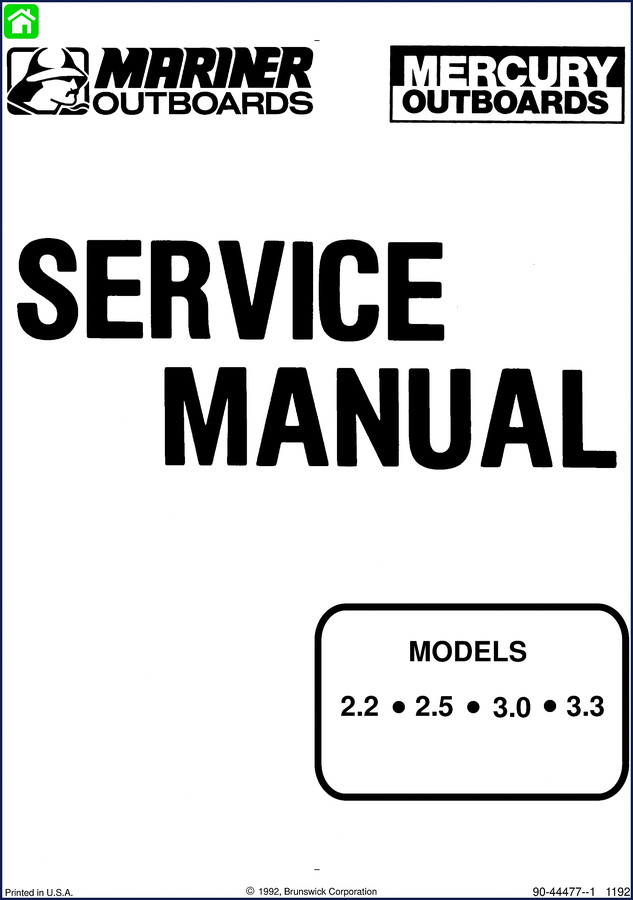

Mercury 2.2, 2.5, 3.0, 3.3 1992 Service Manual

You know the drill – you crack open some aftermarket reprint and the torque spec for that powerhead bolt is 10 ft-lbs off. Then the wiring diagram has the wrong color codes. Next thing, you’ve got a 2.5 that won’t fire because you grounded the kill circuit. That’s the reason I keep the factory Mercury 2.2, 2.5, 3.0, 3.3 1992 Service Manual in the shop. It’s 104 pages of the exact specs Mercury Marine printed when these motors were new. No translations, no guesswork, no third-party edits. You need the charge pressure? Page 1-3 gives you the torque values for the powerhead fasteners – and if you follow those, you won’t crush the gasket or strip the threads. That’s the difference between a job you finish in an afternoon and one that ends with a helicoil.

General Information & Specifications: Where Most Mistakes Start

Section 1 begins with the motor parts identification and general specs. Dimensions, powerhead clearances, fuel system settings, ignition system data – it’s all on the page. Mercury even includes the transom height requirements and the exact tilt angle adjustment for each model (2.2, 2.5, 3.0, 3.3). The fuel mixture procedure on page 1-4 spells out the correct mixing ratio and the right oil type. I’ve seen guys dump in standard TC-W3 and wonder why the plugs foul. This manual calls out the specific recommendations – follow it or replace a piston.

Electrical & Ignition: Factory Diagnostics

Section 2 covers the electrical system and ignition. The manual doesn’t give you a vague “check for spark and replace if bad” – it walks through the compliance tests, the stator resistance values, and the trigger timing. You get the actual OEM test points and the acceptable readings. If you’re diagnosing a no-start on a 3.3, you need this section. The wiring diagrams are the original Brunswick drawings – not some redrawn mess that misses the kill circuit ground. Use them and you’ll trace the fault in ten minutes.

Fuel System & Carburetion: Getting the Mix Right

Section 3 dives into the fuel system and carburetion. Each model’s carb has its own jetting specifications, float levels, and adjustment sequences. The manual tells you the idle speed screw setting and the correct link rod length for the throttle lever. If you’re rebuilding a 2.2 carburetor, you need the exact needle valve clearance. Aftermarket manuals often skip these numbers – this one doesn’t. You get the factory calibration data that ensures the motor runs at peak efficiency on the water.

Powerhead and Mid-Section Assembly Torque

The torque specification table on page 1-3 lists every bolt on the powerhead and mid-section with its required ft-lb value. Cylinder head bolts, connecting rod nuts, flywheel nut, driveshaft housing bolts – it’s all there. I’ve seen a mid-section housing crack because somebody torqued the bolts to 25 ft-lb instead of the specified 18 ft-lb. That’s a $200 part you just made scrap. The manual also covers the standard bolt and nut torque chart for common fasteners. Use a torque wrench – your hands lie.

Gear Housing: Shifting vs Non-Shifting

Sections 5A and 5B deal with the gear housing – Section 5A for non-shifting models (like the 2.2) and 5B for shiftable F/N gears. The manual includes the proper shim selection procedure, the backlash specs, and the seal installation depths. A lot of guys think you just swap the gearcase and send it. Wrong. The shift rod alignment and the forward gear clearance have to be within 0.002 inch. This manual gives you the measurements and the tool part numbers. If you skip that, you’ll be pulling the lower unit again next season.

3 Reasons This 1992 Mercury Manual Beats Aftermarket Reprints

One – The wiring diagrams are exact reproductions of the factory schematics. Aftermarket reprints often reverse polarity or omit a ground. Two – Torque specs come straight from Mercury’s engineering department, not a generic chart. Three – The fuel system adjustments are model-specific. This manual covers the 2.2, 2.5, 3.0, and 3.3 individually. If you’re working on a 3.0 with a different carb than the 2.5, you’ll know. That kind of detail only exists in the original OEM publication.

Rewind Starter Assembly: Don’t Launch the Spring Across the Garage

Section 6 covers the rewind starter. The manual shows the disassembly sequence, the rope length, and the spring retensioning procedure. I’ve seen guys wind a rewind spring backward and then spend an hour trying to untangle it. The factory procedure tells you exactly how to hook the rope and pre-load the spring. It’s three pages of text and diagrams that save you a busted knuckle and a lost afternoon. If you’re doing a rewind rebuild, have this section open on your bench.

Does this manual include wiring diagrams for the 1992 Mercury 3.3?

Yes. Section 2 has the full electrical schematic, including the ignition kill circuit, charging system, and starter wiring. All wire colors are printed as OEM – no aftermarket abbreviations.

What fuel mixture ratio does the manual specify for the 2.2 model?

It’s on page 1-4 under “Fuel Mixture.” The correct ratio is 50:1 using Mercury premium plus 2-cycle oil or equivalent TC-W3. Don’t guess – check the page.

You’ve got a Mercury outboard that won’t start, a fuel system that’s acting up, or a powerhead that needs fresh gaskets. This manual gives you the factory data you can trust. Skip the reprints and the forum advice. Get the original 104-page Mercury 2.2, 2.5, 3.0, 3.3 1992 Service Manual from AutoRepairManuals – the only source for verified OEM documents. Access the Factory Manual now and have every spec on your screen in seconds.
