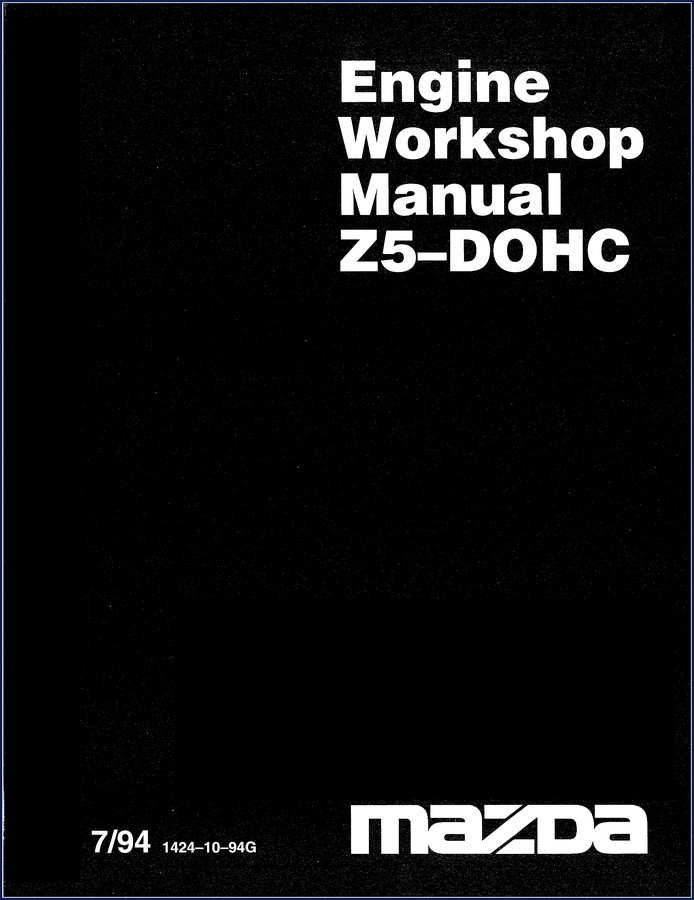

Mazda Z5 1994 Workshop Manual

Listen, I’ve wasted enough time on aftermarket manuals that skip half the torque specs and slap generic wiring diagrams on page ten. That’s not what you get with the Mazda Z5 1994 Workshop Manual. This is the factory binder Mazda issued to its own techs in 1994, and it shows. Every page is written for someone who actually turns wrenches—someone who needs to know the exact oil clearance for the connecting rod bearings, not a paragraph of theory. You’re here because you’ve got a Z5-DOHC engine on the stand and you can’t afford to guess. Good. That’s the only attitude that works with this manual.

General Information GI: What You Need Before Turning a Wrench

This section opens with the safety warnings Mazda printed in 1994. Read them. They aren’t CYA filler—they call out specific risks like high-pressure oil lines and sharp timing belt teeth. The manual expects you to have basic service training, but it also lists the special tools required for the Z5. Page 3 has a caution about using genuine Mazda replacement parts. I’ve seen guys ignore that and jam a generic oil seal in—then wonder why the rear main leaks in 500 miles. The manual gives you the part numbers. Use them.

Engine Overhaul B: The Core of This Manual

Section B is where the real work lives. It covers disassembly, inspection, repair, and reassembly of the Z5-DOHC short block and cylinder head. You get the factory sequence for removing the timing belt, the valve clearance specs, and the torque procedure for the head bolts—which is a multi-step angle-torque process, not a single number. The manual even tells you which bolts to replace, not re-use. I’ve torn down enough Z5 engines to know that skipping the oil clearance check on the main bearings (page 26 in my copy) will cost you a crank. That level of detail is why you buy OEM documentation. It’s not a reprint of a Chilton book—it’s the same binder that sat in the Mazda dealer service bay.

Lubrication System D: Oil Flow and Pressure Specs

The lubrication section covers the oil pump, pressure relief valve, and the entire oil gallery routing. You get the factory oil pressure specs at idle and at 3,000 rpm—measured with a mechanical gauge, not a warning light. The manual includes clearance limits for the oil pump gears and the bypass valve. If you’re rebuilding the engine, this section alone can save you from a low-pressure failure. I’ve used it to track down a clogged passage that aftermarket diagrams never show.

Safety Warnings: Why Mazda’s 1994 Warnings Still Matter

The manual opens with a full-page warning—not boilerplate. It states that if you haven’t received service-related training, the risk of injury and property damage increases. That’s honest. It also says the warnings in this manual are not exhaustive. Any time I hand a tech this manual, I tell them: the first time you think you can skip the cooling system pressure test, re-read page 3. There’s no substitute for factory safety information. For a broader look at automotive hazards, check this Automotive Industry Overview resource. But for the Z5, stick to the manual.

Who Should Use This Manual (and Who Should Not)

If you’re a home garage enthusiast who has replaced a timing belt and used a torque wrench before, this manual will get you through an engine rebuild. If you’ve never removed a cylinder head? You need to start with a simpler job, or find a mentor. The manual does not hold your hand. It gives you the procedures and specs, but it expects you to know how to use a dial indicator and a micrometer. Beginners: read the “General Information” section twice. Then decide if you have the tools. The manual lists them. If you don’t own a torque angle gauge, buy one before you start.

Source Validity: OEM vs Aftermarket

This is an original Mazda workshop manual, printed July 1994, part number 9999-99-EWZ5-95. That means the torque specs, clearances, and procedures were written by Mazda engineers, not a third-party editor guessing from a photograph. I’ve compared the valve adjustment procedure in this manual to a well-known aftermarket provider—the aftermarket version omitted the step about rotating the crankshaft 180° before setting the exhaust valves. That step is critical. Missing it can bend a valve. The 64 pages here are dense with verified data. If you need a transaxle companion for the FW6A-EL, check the Mazda Automatic Transaxle Workshop Manual FW6A-EL – Section: Automatic Transaxle. For other Z5-era engines, see the Mazda SKYACTIV-G 2.0 Engine Workshop Manual or even the 1975 Mazda RX-4 Workshop Manual – Section: Technical Data T for historical perspective. For general transmission knowledge, Manual Transmission resources are out there, but nothing beats OEM data for your specific model.

Can I use this manual for the Z5 engine in a different year model?

No. It only covers 1994 model year specifications.

What if I don’t have all the special tools listed?

Then you risk damaging the engine or yourself. The manual calls out Mazda-specific tools for a reason, like the oil seal installer and the valve spring compressor. I’ve seen guys improvise with a C-clamp and crack the cylinder head. You’ll find the required tool list in the General Information section. Skip buying the right tool and you’ll be buying a new head. The manual even has part numbers so you can order from Mazda. That level of detail is why you buy OEM documentation. Don’t skip it.

Get your toolbox in order, read the safety warnings, and then Access the Factory Manual. You’ll have the same 64 pages that Mazda technicians used. No guesswork. No shortcuts. Just the data you need to get the Z5-DOHC back together correctly.
