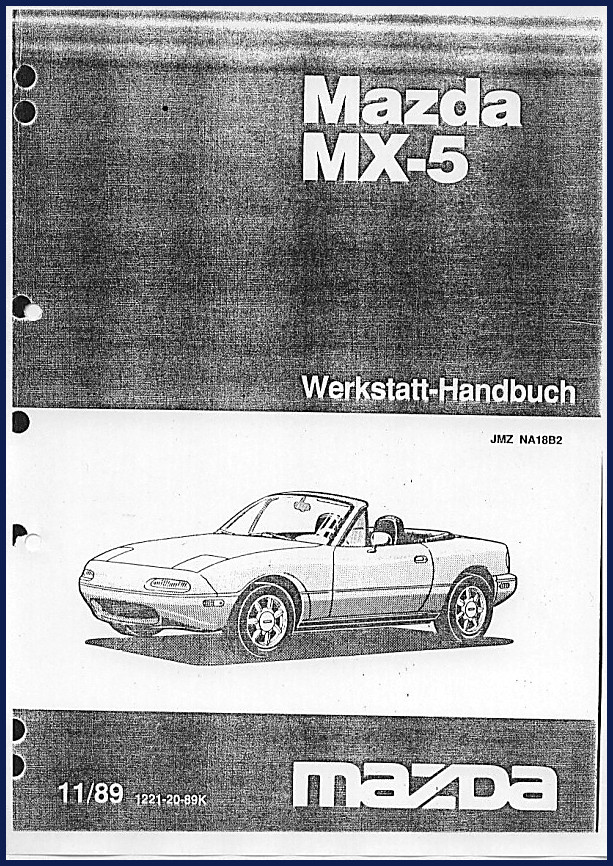

Mazda MX-5 1989 Workshop Manual

You’re looking at the factory binder that the Mazda dealership techs had bolted to their benches in ’89. I’ve seen more aftermarket manuals come through my shop than I care to count – they skip steps, fudge torque values, and swap fastener grades. This Mazda MX-5 1989 Workshop Manual is the original OEM print. 371 pages. Japanese-bound, German translation, but the numbers don’t care what language they’re written in. If you’re rebuilding the 1.6L B6 engine or chasing a driveline noise on an NA-series Miata, this is the only paper you should trust.

Technical Data Section: Where the Specs Live

Every MX-5 owner knows the pain of a head gasket leak. You pull the old one, clean the deck, and then you need the factory torque sequence. The Technical Data chapter (Section TD) gives you all the numbers – from crankshaft pulley bolt torque to rear axle nut preload. Page 360-370 covers the major specs. I won’t trust a Chilton chart for a Japanese engine. This manual lists the exact torque in Nm (convert to ft-lb if you must, but follow the sequence. It matters). Also includes fluid capacities for the 5-speed manual transmission and the diff. No guesswork.

Engine B: Tearing Down the 1.6L

Section B – Motor – walks you through the entire engine overhaul. Crankshaft removal, piston ring gaps, valve clearance adjustment. The manual calls out special tools but also shows workarounds. For example, the flywheel holding tool part number is listed in the Special Tools section (Section ST). If you don’t have the OEM tool, the manual tells you how to lock the flywheel using a brace between the bellhousing bolts. That kind of practical detail is what you get from the engineers who built the car, not a third-party compiler.

What About the Fuel and Emission System?

Section F – Kraftstoff- und Abgasentgiftungsanlage – covers the fuel injection, charcoal canister, and EGR. For a 1989 MX-5, the VAF meter is a common failure point. This manual shows the airflow meter test procedure with resistance values across the terminals. If you’ve ever tried to diagnose a lean condition without factory test parameters, you know why this matters. The wiring diagram in the back (Section T) gives you the full electrical layout for the engine management. I’ve used those diagrams to trace a no-start in under 30 minutes.

3 Sections You’ll Use Most Often

If you’re a home garage mechanic, you’ll spend your time in these chapters. First, the Clutch (Section H) – includes the release bearing alignment tool dimensions and the pressure plate bolt torque (22–29 Nm). Second, the Brakes (Section P) – caliper piston retraction specs and pad wear limits. Third, the Suspension (Section R) – alignment specs, control arm bushing replacement, and shock absorber removal. Each section starts with a required tool list. Ignore that list at your own risk – I’ve seen guys strip a ball joint taper because they used a pickle fork instead of the proper puller. The manual warns you.

Get the Right Tools Before You Start

Section ST – Special Tools – lists every factory part number you need to do the job right. Some are expensive, but you can often rent them. The manual also includes a preparation section (Chapter GI) that covers basic safety, jacking points, and how to read the symbols used throughout. Read that before you lift the car. The MX-5 is light, but it’ll crush you if you put a jack under the sill without the pad. Page 3 covers the warning symbols – pay attention to the one that says “Gefahr” (danger). I’m serious.

Why This OEM Manual Beats Aftermarket Copies

I’ve had customers bring in PDFs from random websites that claimed to be “factory.” They were scanned reprints of reprints – blurry diagrams, missing pages, torque specs that didn’t match the bolts. This digital copy is a direct scan of the original 1989 binder, right down to the Mazda Motor Corporation imprint. Every page is legible. The wiring diagrams are clear. If you need to replace the heater core or diagnose an AC issue, Section U (Heizung und Klimanlage) gives you the duct routing and refrigerant charge specs. You won’t find that in a generic service manual.

Related manuals you might need: 2001-05 Mazda MX-5 Miata Automatic Transmission Overhaul Manual, Mazda Z5 1994 Workshop Manual – OEM Factory Specs, and Mazda FW6A-EL 2012 Workshop Manual – OEM Factory Transaxle Guide. For background on automotive service documentation, check Automotive Industry Overview. And if you want to understand the fundamentals of how a manual transmission works, there’s Manual Transmission.

Does this manual include wiring diagrams?

Yes – Sections G and T cover engine and body electrical with full schematic diagrams.

Can I use this manual to rebuild the transmission completely?

Absolutely. Section J (Schaltgetriebe) covers the 5-speed manual transmission disassembly, shim selection for the input shaft bearing preload, and tail housing seal replacement. The factory tolerances are listed in millimeters – you need a dial indicator and a micrometer. The manual even tells you which special tool to use for pressing the bearings. I’ve done two MX-5 trans rebuilds with this manual alone. The key spec is the end-play on the countershaft: 0–0.05 mm. Ignore that and you’ll get a whine in 3rd gear. The book saves you that headache because it gives you the exact measurement procedure, not just a torque value. It also includes a breakdown of the synchro ring thickness limits so you can decide whether to reuse or replace. That level of detail is why I keep this manual in my bay, not the generic one.

If you’re serious about keeping that 1989 MX-5 on the road without turning it into a project that never ends, Access the Factory Manual today. You’ll get the same 371-page document the dealer techs used. No reprints, no watermarked previews – just the OEM data that will let you torque every bolt to the right spec and sleep soundly knowing the job is done right.
