Mazda FW6A-EL 2012 Workshop Manual – Factory Documentation for the Automatic Transaxle

I’ve been turning wrenches since before most of you were born, and if there’s one thing I’ve learned, it’s that guessing on a transmission rebuild is a fast way to turn a paying job into a parts bill. That’s why when a Mazda FW6A-EL 2012 Workshop Manual comes across my bench, I pay attention. This isn’t some aftermarket reprint cobbled together from forum posts – this is the actual OEM document Mazda issued for their technicians. 405 pages of verified specs, section-by-section procedures, and warnings that keep your hands attached to your arms.

You want to know what’s inside? Look at the table of contents: General Information (00) and Transmission/Transaxle (05). That section 05 alone breaks down into subsections like 05-17 (valve body), 05-50 (hydraulic controls), and 05-60 (electronic controls). Each one of those sections has torque values in foot-pounds, not Newton-meters left to guess. Need the charge pressure spec? Flip to page 73. Torque for the pump cover bolts? Page 73 again – they list it in the same table. No flipping back and forth like some Chilton disaster.

General Information (00): Factory Safety and Tool Requirements

The manual opens with a warning that should be tattooed on every technician’s forehead: “Servicing a vehicle can be dangerous if you have not received service-related training.” That’s Mazda covering their liability, but it’s also a fact. The manual lists the exact specialty tools you need – things like the SST for the torque converter seal installer. Don’t have it? The manual tells you the Mazda part number. You can find the equivalent aftermarket tool if you’re careful, but you’re on your own if it slips. The procedure on page 2 (General Information) walks you through fluid level checks at operating temperature – 20-minute idle, shift through all gears, then check with the engine running. Miss that step and you’ll overfill by a quart.

Transmission/Transaxle Section (05): Overhaul Procedure

This is where the FW6A-EL manual earns its keep. Section 05 covers the entire teardown and rebuild sequence. It tells you which bolts are one-time-use (the torque converter-to-drive plate bolts – replace them every time). It gives you the clutch pack clearance specs in thousandths of an inch. For the low-reverse clutch, the gap is 0.020–0.035 inch. If you’re over, you swap the snap ring. If you’re under, you change the separator plates. The manual even tells you which side of the seal faces the fluid – a detail aftermarket manuals love to skip.

FW6A-EL Torque Specs: Where to Find Them

Every fastener in this transmission has an OEM torque spec listed in the manual. They’re sprinkled throughout section 05, not all lumped in an appendix. The valve body bolts get 80–106 in-lbs. The pump housing bolts get 27–38 ft-lbs. The manual tells you the sequence – center out, then the outer bolts. I’ve seen guys snap a bolt because they cranked the corner first. The manual’s sequence prevents that. Cross-referencing the specs against Mazda Z5 1994 Workshop Manual – OEM Factory Specs shows Mazda has been consistent with their numbering for decades. If you’re working on multiple platforms, check the Mazda SKYACTIV-G 2.0 Engine Workshop Manual for engine-side torque specs that mate to the transaxle.

Does This Manual Cover Your Specific Mazda Model?

Look at the forward: “This manual covers all models with the above-indicated automotive system, not any one specific model.” That means it’s written for the FW6A-EL transaxle as a unit, not for a particular car. So if you’re swapping this transaxle into a 2014 Mazda 6, the manual works. If you’ve got a CX-5 with the same unit, same manual. But if you need body wiring or engine removal steps, you’ll need the vehicle-specific manual. For those, 1975 Mazda RX-4 Workshop Manual – Section: Technical Data T is an example of how Mazda structures their documentation by system rather than model.

Warnings and Cautions: Why You Read Them

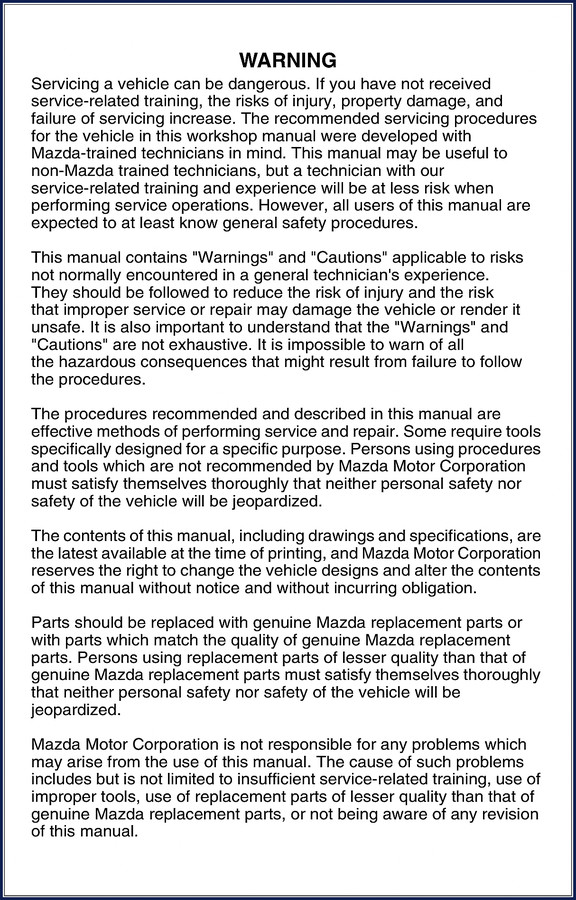

The OEM manual doesn’t sugarcoat. On page 1, it says: “This manual contains ‘Warnings’ and ‘Cautions’ applicable to risks not normally encountered in a general technician’s experience.” That’s code for: you can get killed if you don’t follow procedure. One warning I remember: when removing the valve body, the manual tells you to plug all fluid passages immediately. A single stray thread or dirt speck will ruin the shift quality. The aftermarket manuals often tell you to “be careful” – Mazda’s version says “install a plug in each oil passage” and gives the part number for the plug set. That’s the difference between OEM and generic. For more context on automotive repair standards, see Automotive Industry Overview and Manual Transmission – though I’d skip the manual transmission article if you’re diving into a slushbox.

3 Things That Set This Manual Apart

Number one: the page count. 405 pages. That’s not fluff – it’s exploded views, hydraulic schematics, and electrical wiring diagrams for the TCM. Number two: the torque specs are sourced from Mazda’s engineering department, not a Chinese copy. Number three: the diagnostic procedure for shift hesitation. The manual lists a step-by-step sequence: check line pressure at port A, then check solenoid resistance, then check for DTCs. Miss step one and you’ll replace solenoids that were fine. I’ve seen that happen.

FAQ – Mazda FW6A-EL Workshop Manual

Does the 2012 manual cover the FW6A-EL in the 2013 Mazda 6?

Yes, the transaxle is identical for those years. The manual was written for the transmission system, not the model year of the car.

What torque specs are listed for the flywheel bolts?

Section 05 lists them at 74–85 ft-lbs. Page 73 shows the full torque chart for the torque converter and pump cover.

Can I use this manual for a ford fusion with the same transaxle?

Technically the FW6A-EL is shared with some Ford products, but the Ford-specific service information and wiring colors differ. Stick with the Mazda manual if you’re working on a Mazda, or get the Ford version. The mechanical specs are the same but the electrical pinouts may vary.

How do I know if the PDF is a genuine OEM scan?

Check for the Mazda part number on the cover and the warning page that references Mazda Motor Corporation. Our copies are scanned from original printed manuals, not reconstructed text.

Bottom line: if you’re doing anything beyond a fluid change on the FW6A-EL, you need the factory data. Don’t trust a $15 aftermarket access that leaves out 30% of the specs. Access the Factory Manual from AutoRepairManuals and get the real thing – 405 pages, every torque spec, every diagnostic step, every warning that keeps your transmission alive and your fingers intact.
