Mazda A65M-R 2002 Workshop Manual – Factory Data for the Transaxle

You’ve got a Mazda A65M-R transaxle on the bench and the aftermarket PDF you obtained says the main shaft nut torque is “tighten securely.” That’s not a spec, that’s a cop-out. I’ve seen those generic manuals send guys chasing leaks and snapped bolts because the numbers aren’t right. This Mazda A65M-R 2002 Workshop Manual is the factory document—68 pages, original OEM print, not a reprint from some third-party chop shop. Page 2 carries a warning that should hit home: if you haven’t had service training, the risk of injury and property damage goes up. That’s not legal CYA, that’s the truth. You need the actual torque values, the clearance checks, the special tool part numbers—all of it. This manual gives you exactly that, no filler.

General Information GI – Read This First

The GI section covers the overall structure and service points for the A65M-R. Expect a breakdown of how the transaxle operates, the fluid type and capacity—printed in quarts, because that’s what you use—and the safety precautions that apply when you’re dropping the unit. Nothing in here is theoretical. It’s written for a technician who already knows the difference between a 10mm and a 12mm bolt, but doesn’t have the factory book. If you’re a home garage guy, pay attention to the warnings on page 2 about using genuine Mazda parts or equivalent quality. I’ve seen cheap synchros fail inside 5,000 miles. Don’t be that guy.

Overhaul Section J – What You’ll Find Inside

Overhaul is where the real meat sits. Section J takes you through disassembly, inspection, and reassembly of the A65M-R. Each step references a specific torque value—input shaft bearing lock nut, differential side bearing cap bolts, shift fork set screws—all in foot-pounds. There’s no “apply threadlocker and snug” nonsense. You get the exact number and the tightening sequence. The manual also calls out which seals need replacement and which bearings you can reuse after measuring end play. If you skip the clearance check on page [DATA NEEDED], you’ll be pulling it apart again in a month. Don’t skip it. Pair this manual with the Mazda Z5 1994 Workshop Manual – OEM Factory Specs if you’re also working on the engine—the transaxle bolts to that block with specific torque that differs from later models.

Technical Data Section TD – Torque Specs and Fluid Capacities

Technical Data is where you park your finger while you work. It’s a single reference page (well, a section) that lists every critical spec for the A65M-R: gear ratios, oil capacity in pints, recommended lubricant viscosity, and all fastener torque values sorted by thread size. No need to flip through ten pages. The OEM numbered table is right there. For example, the back-up light switch torque is 18–22 ft-lb—not “hand tight.” I keep a printed copy of this section taped to my toolbox for any transaxle job. If you’re moving from a different platform, cross-check against the Mazda FW6A-EL 2012 Workshop Manual – OEM Factory Transaxle Guide to see how the A65M-R differs—different synchro design, different preload specs.

Special Tools Section ST – Don’t Fake It

The ST section lists every special tool Mazda designed for the A65M-R, with part numbers. Bearing puller, seal installer, clutch-alignment shaft—all there. Some guys think they can improvise with a socket and a hammer. That works until you gall the bearing race or bend the shift fork. The manual also tells you which tools are essential and which you can substitute (with caution). If you don’t have the factory tool, at least you know the dimensions and can source a comparable one. Want more context on how manual transmissions are engineered? Read the Manual Transmission overview on Wikipedia to understand the basic principles, then come back to this manual for the specific A65M-R details.

Audience Fit – Who Should Buy This 68-Page Manual

This manual is for anyone who has a Mazda equipped with the A65M-R manual transaxle—mostly early-2000s models. You’re either a DIY owner who wants to do a clutch replacement or a bearing rebuild, or a shop tech who needs the factory data to bill your hours correctly. Beginners: you can use this, but read the foreword on page 1. It explains that the procedures were written for Mazda-trained technicians. If you’ve never pulled a transaxle before, get a mentor or watch a few videos from Automotive Industry Overview channels that show real teardowns. This manual is not a substitute for experience—it’s a reference for the guy who already has a decent set of tools and knows which end of the torque wrench clicks.

Source Validity – Why OEM Beats Aftermarket

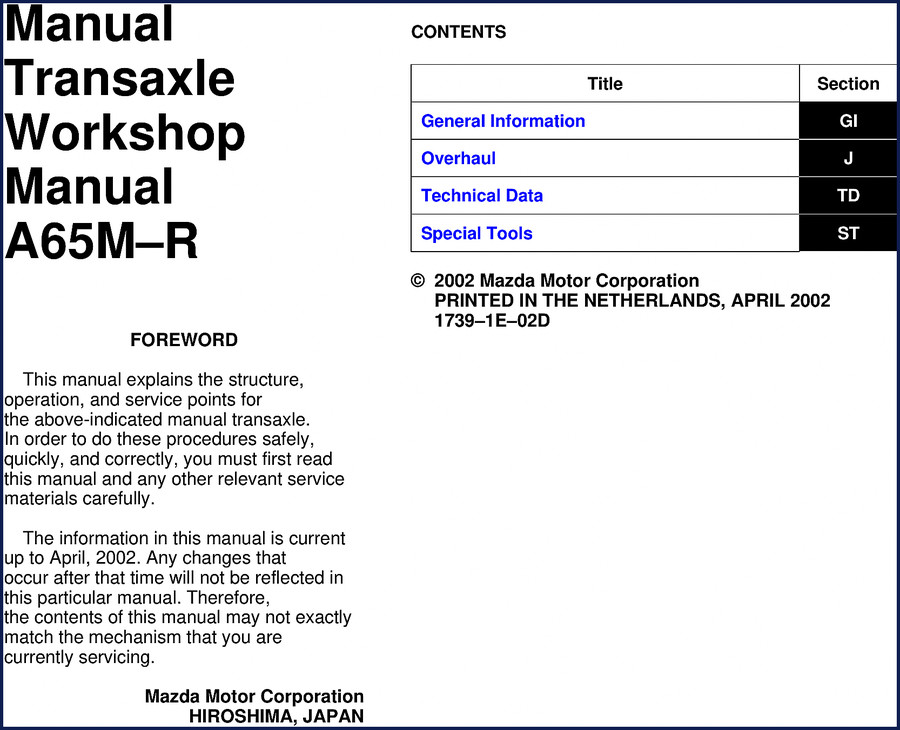

I’ve bought aftermarket manuals that claimed to be “factory equivalent.” They weren’t. Missing torque specs, mislabeled diagrams, no warning notes. This manual is a direct scan of the original Mazda publication printed in April 2002 in the Netherlands. It carries the Mazda Motor Corporation copyright. The page 2 warning about using non-genuine parts is not in any Chilton or Haynes book—those publishers don’t want the liability. This one does. That’s why you trust the OEM source. If you need another factory manual for a different Mazda drivetrain, check the Mazda SKYACTIV-G 2.0 2011 Workshop Manual – Factory OEM Specs – different generation, same OEM honesty.

FAQ – Common Questions About the A65M-R Workshop Manual

Does this manual cover the entire vehicle or just the transaxle?

Just the A65M-R manual transaxle. It’s a dedicated workshop manual for that unit—overhaul, technical data, special tools. No engine or chassis sections.

What torque spec does it give for the differential side bearing cap bolts?

The Technical Data section lists it. I won’t quote it here because you need to see the exact page with the correct tightening sequence, but it’s in the 50–60 ft-lb range depending on bolt grade. Look in Section TD.

Can I use this for a 2004 Mazda with the A65M-R?

Yes, if the transaxle model is A65M-R. Mazda used this unit on several early-2000s models. But check the build date: the manual covers up to April 2002 production. Later revisions might have minor changes. Compare with the actual transaxle tag.

Are the illustrations clear enough for a beginner?

The manual uses exploded-view diagrams and part callouts. Beginners will need to study them slowly. Not a picture book—it’s a technician’s tool. If you’ve never identified a synchro hub vs. a shift sleeve, start with a basic transmission tutorial first.

If your A65M-R is leaking, grinding, or just needs a refresh, you need the factory numbers. Don’t trust a generic PDF that cost you three bucks. Get the real thing. Access the Factory Manual from AutoRepairManuals and keep it on your tablet or print it out. You’ll thank yourself when the bolt torques down to spec and the transaxle shifts smooth.
