Massey Ferguson MF230, MF235, MF240 Service Manual – 93 Pages of Factory Specs

You’ve got a Massey Ferguson that’s down—maybe an MF230 with a dead injector, an MF240 that won’t start, or an MF235 with a leaking hydraulic pump. You pull out some aftermarket PDF that claims to cover it, but the torque values are wrong, the wiring diagram is for a different series, and the bleeding procedure is missing steps. That’s exactly why I keep this 93-page Massey Ferguson MF230, MF235, MF240 Service Manual on my bay computer. It’s the factory print—not a scan, not a reprint, not a third-party reconstruction. The original OEM shop manual used by dealers when these tractors were still under warranty. Every spec in it came from the engineers who designed the machines.

Condensed Service Data: The First Page You Turn To

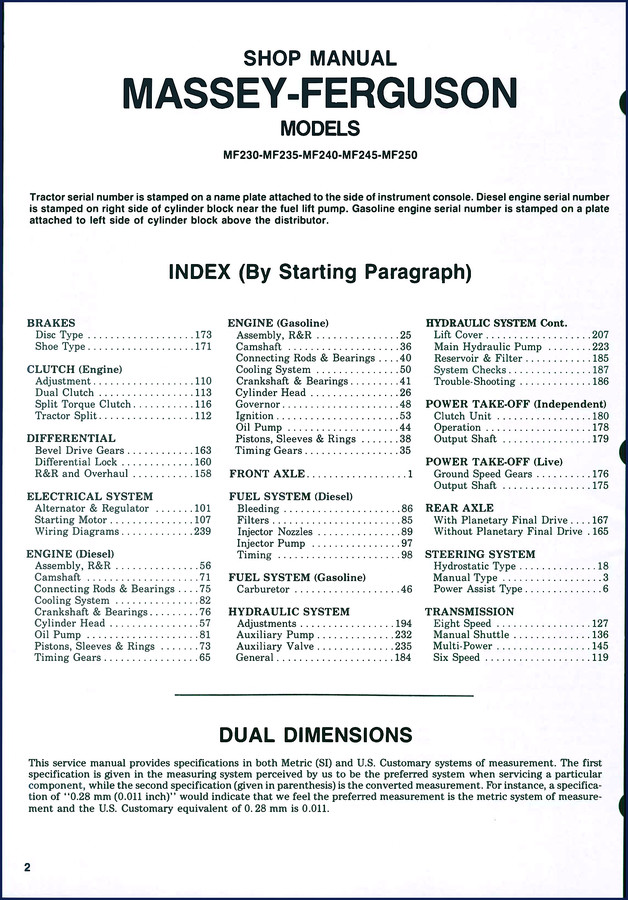

Before you put a wrench on anything, you need the condensed service data. This manual gives you the serial number locations—tractor serial on the instrument console nameplate, diesel engine serial on the right side of the block near the fuel lift pump, gasoline engine serial on a plate above the distributor. Page 1 of the index tells you exactly where to look. If you’re splitting the tractor for a clutch job, you’ll need the Dual Dimensions section first. That’s the kind of detail that keeps you from ordering the wrong sleeve or bearing.

Diesel Engine and Components: Cylinder Head R&R

Pulling the cylinder head on a Perkins diesel? The manual lays out the removal sequence, the torque sequence, and the head bolt tightening specs. It covers everything from the camshaft (page 71) to the timing gears (page 65). You get the oil pump service procedure, piston ring gap specs, and connecting rod bearing clearance. The gasoline engine section is separate, with its own governor and ignition timing data. Don’t mix them up. The manual keeps them in distinct chapters so you don’t cross-reference the wrong fuel system.

Fuel System: Bleeding and Injector Timing

Air in the fuel lines? This manual gives you the bleeding procedure for the diesel fuel system—starting at the filters, then the injector pump, then the nozzles. It also covers injector pump timing (page 98) and nozzle testing. If you’ve got a gasoline model, the carburetor adjustment is on page 46. No guesswork. The factory steps are laid out in order, with the exact tooling you need. I’ve seen too many techs crack injector lines without bleeding the pump first. That’s a quick way to waste an hour. The manual tells you the right way.

Electrical System: Wiring Diagrams That Actually Match

Electrical gremlins are the worst. This manual includes the full wiring diagrams (page 239) and the starting motor overhaul procedure (page 107). The alternator and regulator section covers the charging system. You get the factory wire colors, connector pinouts, and ground locations. Aftermarket wiring diagrams often use generic colors that don’t match the harness. The Service Manual’s diagrams are from the original Massey Ferguson engineering drawings. If you’re chasing a no-start on an MF240, you need the correct diagram for that model year.

Transmission: Six-Speed and Eight-Speed Overhaul

The manual covers both the six-speed and eight-speed transmissions, plus the manual shuttle and Multi-Power transmission. Each section includes the disassembly sequence, gear inspection specs, and bearing preload values. The Manual Transmission section on the six-speed gives you the shift fork clearance and synchro ring thickness. For the eight-speed, the torque converter and clutch pack clearances are listed. If you’re rebuilding a Manual Transmission, you need the factory snap ring locations and shaft end-float specs. The PDF bookmarks let you jump straight to the transmission chapter without scrolling through the whole file.

Hydraulic System: Troubleshooting and Adjustments

Hydraulic issues are where most DIYers get stuck. The manual’s hydraulic system section starts with system checks and troubleshooting (page 186–187). It covers the main pump, auxiliary pump, lift cover removal, and auxiliary valve adjustments. You get the pressure test points and the relief valve setting. The reservoir and filter servicing is on page 185. If your MF235’s three-point hitch won’t lift, the troubleshooting chart points you to the suction screen, the pump output, or the control valve spool. No swapping parts at random. You test and adjust by the book.

Source Validity: OEM Factory Print, Not a Third-Party Reprint

I’ve been burned by aftermarket manuals that reprint the wrong year’s specs. This one is the original Massey Ferguson shop manual—93 pages, factory binding, with the same content that dealers used. The index lists every section: Front System, Steering (manual, power assist, hydrostatic), Brakes (disc and shoe), PTO (live and independent), Differential, Rear Axle, and Wiring Diagrams. The page numbers match the original layout. When you see “Condensed Service Data” and “Dual Dimensions,” you know it’s the real deal. For related manuals, check out Massey Ferguson 8210 8220 Service Manual – 1478 Pages for larger models, or Massey Ferguson 5400 Service Manual – 30 Pages of Factory Specs for a compact utility series. The Ferguson System TE-20 Service Manual covers the older grey Fergies if you’re working on a vintage unit.

Does this manual cover the MF245 and MF250 models?

Yes. The title includes MF230, MF235, MF240, MF245, and MF250. All five models are covered in the same 93-page manual. The serial number locations and most engine/fuel/electrical procedures are identical across the series.

What torque values are listed for the cylinder head?

The manual gives the head bolt torque sequence and final torque value. I’m not going to type it here because you need the full procedure with the tightening order—tightening out of sequence can warp the head. The spec is on page 57 for the diesel engine section. You’ll also find the connecting rod and main bearing torque specs in the same chapter.

If you’re working on a Massey Ferguson MF230, MF235, or MF240, don’t waste time on generic online guides that leave out the critical steps. Get the factory documentation that shows you the exact procedure, with the right torque values, wiring diagrams, and hydraulic test points. Access the Factory Manual and keep it on your tablet or print it for the shop. It’ll save you from ordering the wrong pump seal or misaligning the timing gears. That’s the difference between a job that stays done and one that comes back on a hook.
