Manitowoc Crane RT530E-2 2008 Parts Catalog – Factory Specs

Ordering the wrong part for a 30-ton crane isn’t just a waste of money—it’s a safety hazard. I’ve seen guys bolt on a counterbalance valve that didn’t match the flow rating and turn a routine repair into a hydraulic nightmare. That’s why the Manitowoc Crane RT530E-2 2008 Parts Catalog exists: to give you the exact OEM part number, exploded view, and assembly sequence so you don’t guess. This is the same document the factory sends to dealers. No aftermarket rehash, no condensed version. 771 pages of raw data.

If you’re maintaining a fleet or working on a single RT530E-2, you need this catalog on the bench. The machine component index starts on page 1 with serial number 228633, and every major group is broken down into sub-assemblies with part numbers, quantities, and callouts. You’ll find the boom group, mast assembly, cab group, and electrical systems all laid out the way Manitowoc designed them.

Boom Group: Cylinder Assembly and Counterbalance Valve – Page 11 and Page 15

Two sections in this catalog that will save you hours of cross-referencing: the Cylinder Assembly – Telescope (Complete Assembly) on page 11 and the Valve Assembly – Counterbalance on page 15. Both are part of the boom group (page 5). The cylinder assembly drawing shows every seal, piston, and rod component with the factory part numbers. The counterbalance valve assembly identifies the exact porting and pressure setting. Don’t trust a generic valve from a hydraulic supply house—the OEM spec includes the correct cracking pressure and pilot ratio. Use the catalog to order the right unit the first time.

Also in the boom group: boom lights installation, iFLEX 5 LMI kit, hook block, and jib extension. Each section lists the complete assembly part number plus individual components. If you need a light cable assembly, it’s on page 21. The sheave assembly for the 26′-45′ boom extension is on page 65. Every part number is live from the factory.

Does the Cab Group Section Include Wiring Harnesses?

Yes, and it’s not just a generic wiring diagram. The cab group starts on page 85 with the cab installation, then moves to the electrical system installation for the superstructure cab (domestic) on page 133. That section includes the fuse and relay panel assembly (page 135) and the harness assembly for the superstructure (page 181). The front console harness (page 125) and the 12-volt tachometer gauge (page 129) are also broken out. If you’re troubleshooting a no-start or a dead gauge, these pages give you the exact connector pinouts and wire colors. The manual also covers the heater/air conditioner kit (page 149) and the iFLEX 5 LMI superstructure kit (page 159). Every component is listed with its part number—no guesswork.

3 Reasons to Trust the Factory Parts Catalog for Your RT530E-2

1. Part numbers are verified by Manitowoc. The catalog is revised March 11, 2008, Rev 001. Every part number listed has been tested and approved for the RT530E-2 with serial number 228633. Using a non-OEM substitute can void the crane’s certification.
2. Exploded views show assembly order. You see how the cylinder, valve, sheave, and other components fit together. This prevents installation mistakes that cause leaks or binding.
3. Quantities are included. For example, the “BALL ASSEMBLY – OVERHAUL (7.5 ΤΟΝ)” on page 49 lists the exact number of bearings and retainers. No need to order extras or hope you have enough.

These three reasons alone make the catalog worth the access. I’ve seen too many shops order a “universal” hydraulic cylinder only to find the mounting lugs are 1/4-inch off. Don’t be that guy.

Source Validity: Original OEM Print, Not Aftermarket

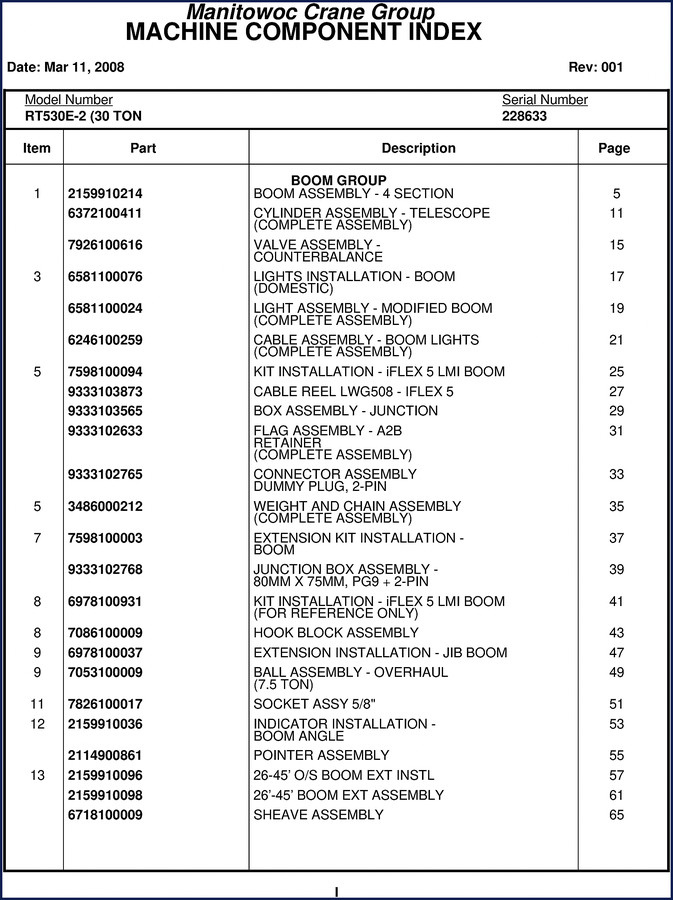

This is the raw PDF from the Manitowoc Crane Group. No third-party rewriting, no condensed tables. The document contains the original Machine Component Index, the same one used by Manitowoc dealers. If you’ve ever tried to use a generic parts manual for a crane, you know the frustration of missing pages or outdated part numbers. This one is scanned from the factory print, 771 pages, 2008 vintage. It covers the RT530E-2 (30-ton) model specifically. The Automotive Industry Overview may give you theory, but this catalog gives you the actual hardware data.

Get the Right Part Number the First Time

When you open the catalog, start with the boom group on page 5. Need the telescope cylinder? Go to page 11. Need the counterbalance valve? Page 15. The index at the front lists every assembly with its page number and part number. You can also search for specific components like “sheave” or “A2B retainer.” The part numbers are 10 to 12 digits long; double-check the serial number range (228633) to ensure compatibility. If you’re working on a different RT530E-2, the base model is the same—just verify any updates via the factory service bulletins.

What is the difference between the parts catalog and a service manual?

The parts catalog gives you part numbers and exploded views for ordering. A service manual gives you torque specs and repair procedures. You need both—this catalog is for ordering components.

Can I use this catalog for the RT540E model?

No. The RT540E has a different cab console layout (page 119 shows “RT540E/RT530E2” but the console assembly is specific). The RT530E-2 parts catalog is for the 30-ton model. Look for the Manitowoc Crane Group RT540E 2008 Parts Catalog if you have that machine. Also check the Manitowoc 4409 Machine Component Index (2004) for older models, though the crane lineup changed. For engine-related manuals, the MAN E 2842 E 302 E 2842 E 312 Operating Instructions covers the power unit.

Don’t waste time chasing phantom part numbers. Access the Factory Manual and keep it on your laptop or tablet. You’ll have the entire crane’s parts breakdown at your fingertips—no internet required after the access. The PDF is searchable, so you can find “Cylinder” or “Valve” in seconds. That’s the difference between a parts room full of mismatched boxes and a crane that stays on the job.
