Manitowoc 4100W Ringer S3 2009 Service Manual

I’ve seen too many guys skip the step of reading the manual before tearing into a 4100W Ringer. That’s how you get a boom on the ground and a serious OSHA visit. This Manitowoc 4100W Ringer S3 2009 Service Manual — 198 pages of procedures, specs, and warnings — is what you should have in your hands before you even pull a wrench. It’s the OEM document, not some aftermarket recompile that leaves out critical torque values. If you’re working on a 4100W Ringer S3, this is the only document you trust.

That’s the difference.

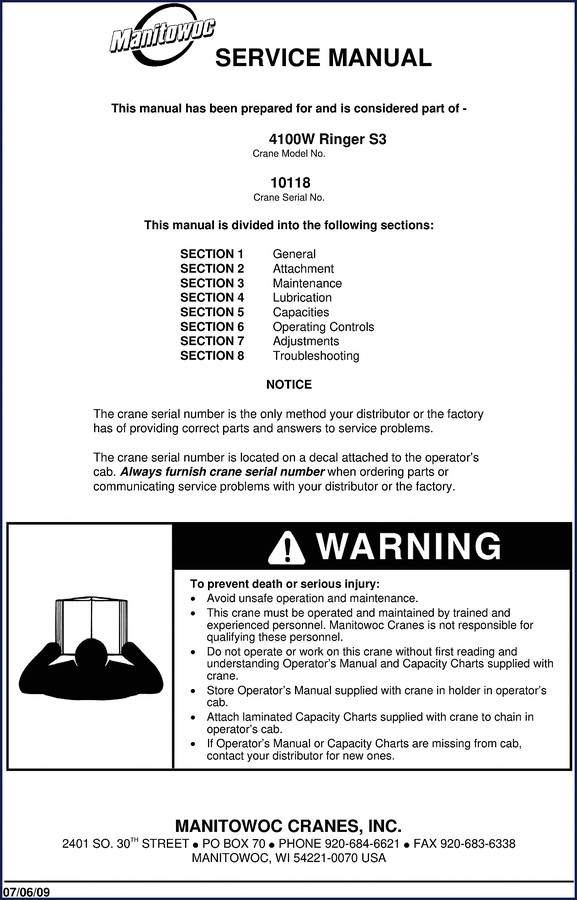

8 Sections in This Service Manual

The manual is broken into eight sections: General, Attachment, Maintenance, Lubrication, Capacities, Operating Controls, Adjustments, Troubleshooting. Each section has its own folio number and is indexed on page 1. The crane serial number is printed on a decal in the cab — the manual tells you exactly where to find it. Without that serial number, ordering parts becomes a guessing game. The General section alone includes safe operating practices, safe maintenance practices, and specific instructions for pedestal or barge-mounted configurations. If you are rigging a 4100W on a barge, the manual spells out the shock loading definitions and crane inspection intervals you need.

Engine, Electrical, and Exhaust Hazards

Right up front, the manual covers diesel engine exhaust, batteries, and sparks. California Proposition 65 warnings are included — battery posts contain lead, wash your hands. The spark arrestor section tells you what to do if you’re operating in dry vegetation. Electrical contact hazards are covered under safe operating practices. Cold weather starting aids like ether and coolant heaters are detailed in the lubrication section. If you ignore the electrical safety warnings, you’re risking electrocution. The manual doesn’t let you forget it.

Safe Operating Practices — Are You Following Them?

Folio 1113 runs through the safe operating practices. It covers size of load, attaching load, lifting and moving, multiple load line operation, holding load, and electrocution hazard. The electrocution hazard section is specific: set-up near power lines, minimum clearances, and what to do if you make electrical contact. This is not a generic list of safety tips — it’s Manitowoc’s factory procedure. If you skip this section, you’re not operating the crane as designed.

Wire Rope Inspection and Replacement

Folio 931 is dedicated to wire rope. Storage, installation from the shipping reel, seizing and cutting, anchoring to drum and wedge socket, breaking in, lubrication, and inspection. The inspection criteria are explicit: frequent and periodic inspection, replacement based on broken wires, wear, and diameter reduction. Sheave, roller, and drum inspection is included. Aftermarket manuals often summarize this into a paragraph. This manual gives you the exact process used by factory techs.

Boom and Jib: Lacing Inspection and Welding

Folios 1316 and 823 cover lacings and boom identification. Inspection intervals for dents, gradual sweeps, kinks, cracks, corrosion, and chord straightness. Welding electrodes and replacement procedures are specified. If you need to order lacings, the manual tells you whether you have drawings or not. This level of detail keeps a boom from failing under load.

Frequently Asked Questions

Does this manual include torque specifications?

No torque specs are listed in this manual. Torque values are found in the separate Capacity Charts manual.

How is this manual different from a generic repair manual?

This is the official Manitowoc factory service manual, printed in 2009 for the exact model and serial number range. It contains the same procedures and warnings that the factory technicians use. Generic manuals often omit critical safety information like the Diesel Engine Exhaust warning, or use approximations for lacing replacement specs. With this manual, you are working from the original source documents – including the specific folio numbers and service drawings that Manitowoc issued. If you order parts using the crane serial number and this manual, you minimize errors.
