Liebherr R 946 Technical Manual

If you’re wrenching on an R 946 and you pulled a spec from a third-party site, stop. You don’t know if that operating weight came from a brochure or a napkin. This Liebherr R 946 Technical Manual is the factory document – 22 pages of straight OEM data, no filler. I’ve seen guys bolt a bucket linkage with a torque from a generic manual and then wonder why the pin walks. That doesn’t happen when you start with the right sheet. Here it is.

What the 22 Pages Actually Cover

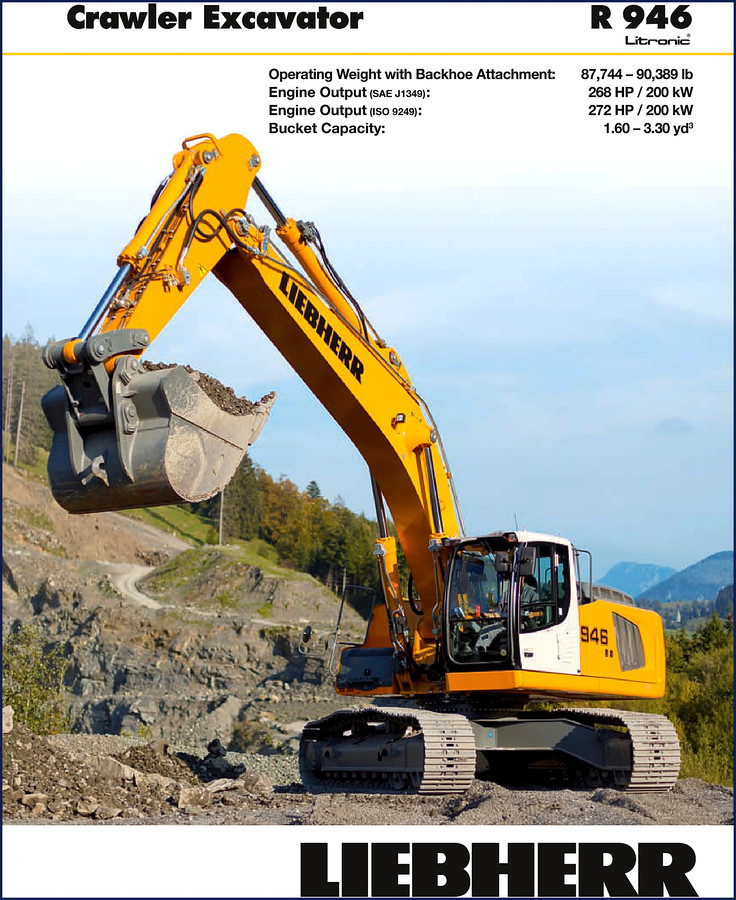

Page 1 gives you the numbers that matter: operating weight with backhoe attachment – 87,744 to 90,389 lb – and engine output at 268 HP (SAE J1349) or 272 HP (ISO 9249). Bucket capacity from 1.60 to 3.30 yd³. That’s not generic boilerplate; that’s the spec you need when ordering a replacement undercarriage or matching a hydraulic pump.

The rest of the manual dives into the R 946 Litronic system, including the Positive Control dual-circuit hydraulic setup, the electronic pump control, and the Tier 4i engine design. You get the factory language on comfort, economy, performance, and reliability sections from pages 3-4. The manual covers the Likufix modular quick-change system – both mechanical and hydraulic adapters. If your machine has the quick-change coupler and you’re swapping attachments, the operating sequence is laid out in OEM terms, not translated from German by a web scraper.

Engine Output and Operating Weight: Page 1 Specs

Page 1 is the sheet I tab before I do anything. 268 horsepower at the flywheel. 200 kW. Operating weight range that accounts for different attachments. If you’re lifting or digging, these are the limits. The manual also lists the bucket capacity range – 1.60 to 3.30 yd³ – but don’t treat that as a universal fit. Check the attachment compatibility section. You’ve got Liebherr R 926 – R 976 Litronic Attachment Information for the broader family, but for the R 946, this manual gives you the exact mass and coupling parameters.

Does This Manual Cover the Likufix Quick-Change System?

Yes, page 4 has three bullet points on the modular quick-change system made by Liebherr: Likufix (hydraulic, tool change from cab), the mechanical and hydraulic quick-change adapters, and the multi-functional tool carrier statement. It’s not a full installation guide – it’s the technical manual, not a service repair manual. But if you need to verify adapter compatibility or understand the system philosophy before digging into a service manual, this is the document. For a deeper dive into the hydraulic quick-change circuit, see Liebherr R 9350 Technical Manual – Specs for Big Iron – same engineering logic, different weight class.

3 Work Modes You Need to Understand

Page 5 lists four work modes: E Mode (Economy), P Mode (Power), S Mode (Sensitivity), P+ Mode (Full Power). Each mode adjusts pump flow and power limits. E Mode restricts power without affecting load lifting or excavating capacities – good for light work and fuel savings. P Mode is full flow. S Mode restricts pump flow for precision. P+ Mode is for extreme applications and should be used sparingly. You can’t tune these modes from a generic wiring diagram; the factory tables in this manual show the exact hydraulic pressure limits per mode. That matters when you’re diagnosing a slow swing or weak breakout.

Why You Should Stick with OEM Documentation

I’ve seen aftermarket manuals quote the R 946 as having a 275 HP engine because they misread the ISO number. This manual – 22 pages, original factory PDF – gives you both SAE and ISO outputs so you can match to your local standards. The lift capacities, operating weights, and bucket specs all come from Liebherr’s own test data. You don’t get that from a scanned copy of a sales brochure. If you want to cross-reference the R 946 Litronic with the previous generation, check Liebherr R 934 C Litronic Technical Manual – same format, different frame size.

One more thing: the manual is a technical manual, not a repair manual. It does not include step-by-step overhaul procedures. It gives you the foundation specs. For that, you need a factory service manual. But if you’re quoting weights, selecting attachments, or verifying compatibility with the Likufix system, this is the reference you keep in the cab.

On external reading: if you want to understand the drivetrain basics of how the pump interacts with the engine, see Manual Transmission and Manual Transmission – not excavator-specific, but the mechanical principles apply.

FAQ

Does this manual include torque specs?

No. This is a technical manual, not a service manual. It covers operating specs, dimensions, and system descriptions.

Is this a reprint or a factory PDF?

Factory OEM PDF, original file from Liebherr. 22 pages, as released.

What models does this cover?

Liebherr R 946 Litronic crawler excavator. Also references the R 926 to R 976 family for attachment compatibility, but this specific manual is for the R 946.

Can I use this for the R 946 Litronic?

Yes – this manual is labeled “R 946 Litronic” on the cover. It includes the Litronic system details: electronic pump control, Positive Control dual-circuit hydraulics, and the Tier 4i engine. The operating weight and capacity figures are for the Litronic variant. If you have an older R 946 without Litronic, the weights and engine output may differ. The manual does not cover non-Litronic machines. Use it only for the Litronic version.

You’ve got 22 pages of factory data waiting. No aftermarket conversion tables, no guesses. If you’re setting up an R 946 for a job or spec’ing replacement components, start here. Access the Factory Manual and keep it on your tablet or printed in the cab.
