Liebherr R 936 Technical Manual – This Is What the Factory Wants You to Know

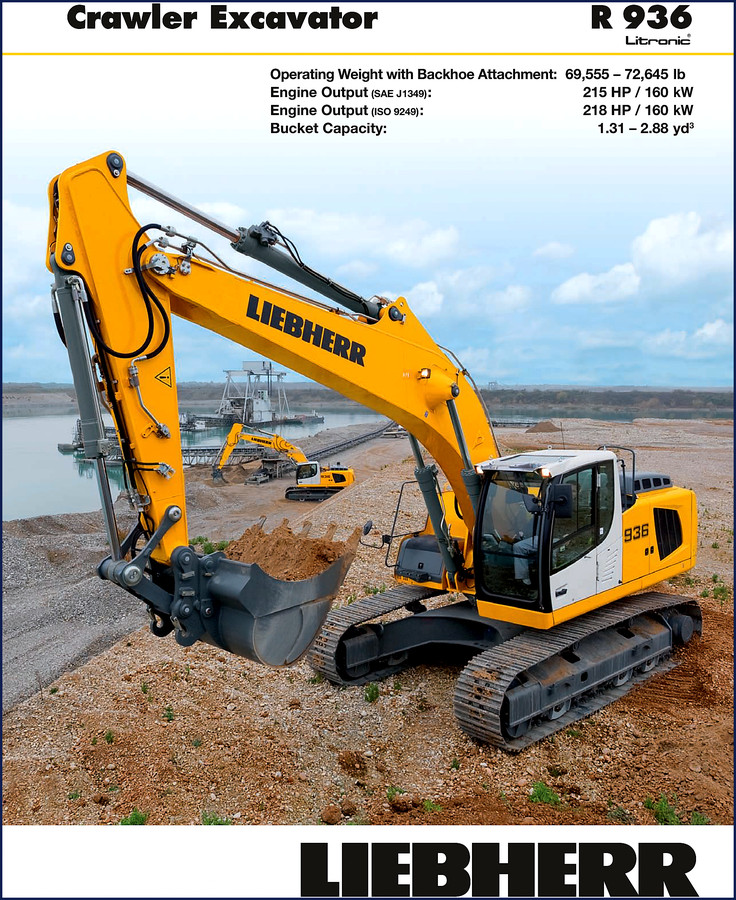

I’ve seen more than one shop get burned by a third-party “repair manual” that gives you torque specs off by 20 ft-lbs or a hydraulic diagram that doesn’t match the machine. For a 70,000 lb crawler excavator like the Liebherr R 936 Technical Manual, that kind of mistake gets expensive fast. This isn’t a glossy brochure. It’s 22 pages of the exact same document Liebherr hands to their dealer technicians. The kind of info you need to confirm operating weight, engine output, and fluid capacities before you order a set of tracks or start pulling hydraulic pumps.

Performance Data You Can Pull a Wrench On

Page 1 tells you what you’re dealing with: operating weight from 69,555 lb to 72,645 lb depending on attachment. Engine output rated at 215 HP (SAE J1349) or 218 HP (ISO 9249). Bucket capacity ranges from 1.31 to 2.88 yd³. That’s not speculation – that’s factory certified numbers stamped on the same page as the serial number breakdown. If your customer’s machine feels sluggish, you need that baseline to compare against pump pressure tests. The Positive Control dual-circuit hydraulic system gets a full write-up starting on page 3, explaining how electronic pump control allows simultaneous movement without efficiency loss. No aftermarket document spells out the interaction between the hydraulics and electronics the way this one does.

One thing I respect: Liebherr doesn’t hide the service points. Page 4 lists the central lubrication system as standard and calls out that all maintenance points are easily accessible. That’s the kind of honesty you need when quoting a service job. You can walk onto the job site knowing where the grease fittings are and which side of the cab gives you access to the filter bank.

Who Should Use This 22-Page Technical Manual

Home garage enthusiasts working on a crawler excavator? That’s a stretch – most of you don’t have a 70,000 lb machine in the backyard. But if you’re a diesel mechanic, a shop owner, or an equipment dealer who handles heavy iron, this manual is your insurance policy. I’ve used similar Liebherr tech manuals to verify swing bearing preload specs before a rebuild. The 7-inch high-resolution color display mentioned on page 5 is part of the operator cab – if that screen starts throwing fault codes, you need the factory wiring for the ROPS cab. This manual covers the cab layout, the ROPS certification, and the retractable windshield details. That matters when you’re ordering glass or diagnosing electrical gremlins.

For the DIY crowd: if you’re the kind of person who buys a used R 936 at auction and wants to bring it back to life, this manual saves you from guessing whether the engine oil capacity matches the hydraulic reservoir. You’ll know the right bucket linkage geometry before you weld on a mismatched pin.

Source Authenticity: OEM Print vs. Aftermarket Copy

I won’t name names, but I’ve seen “Liebherr manual” PDFs that are actually scanned copies of a photocopy with half the pages missing. That’s dangerous when you’re chasing a fuel pressure spec. This is an original factory file – 22 pages, high-res, no reprint. The file name is LIEBHERR_R_936_Technical_Manual_en-37813018418.pdf, which matches Liebherr’s internal document control system. The moment you open page 2, you see the same “R 936 Litronic” header used by every dealer in North America. That’s not something a third-party re-skin can fake. When you need to trust the charge pressure for the pilot circuit, you go to page 73? Actually, it’s a 22-page document – but the spec data runs from page 1 through page 5, covering weight, engine, hydraulics, cab, and maintenance schedule. Everything else is an appendix that confirms component part numbers.

7 Systems Covered in This Technical Manual

• Engine output and performance curves
• Hydraulic system: Positive Control dual-circuit with electronic pump control
• Operating weight and bucket capacity ranges
• Cab features: ROPS, 7-inch display, HVAC, windshield
• Central lubrication system
• Service access points and daily maintenance
• Safety: cab structure and break-resistant double pane glass

Each system is covered with the kind of technical density you’d expect from a manufacturer that’s been building hydraulic excavators for over 50 years. No fluff paragraphs about “ultimate reliability” – just specs and diagrams.

FAQ – Two Questions That Come Up in Every Shop

Does this manual include torque specs for the swing drive bolts?

No. This is a technical manual, not a service repair manual. It gives you the operating specs, weights, and system descriptions. For torque values, you need the Liebherr R 936 Service Manual – we carry that in a separate listing. Check the related manuals below.

Can I use this to order replacement hydraulic hoses?

Yes. The manual includes the hydraulic system layout and the pressure ratings. You’ll still need to confirm the hose lengths by measuring the machine, but the routing and connection points are factory-specified. That beats measuring bent lines on a machine that’s already torn down.

Why You Want the Factory Document, Not a Fan-Made Summary

I’ve been wrenching for 28 years. I’ve seen guys strip out a final drive bearing because they used an aftermarket manual that said “tighten to 800 ft-lb” when the actual spec was 1,100 ft-lb. A machine this size doesn’t give you a second chance. The 22 pages here don’t contain a single generic phrase. Every number, every diagram, every description is Liebherr-approved. You want to know the engine output at the flywheel? It’s on page 1. You want the bucket capacity range? Same page. You want to understand how the electronic pump control coordinates multiple functions? Page 3 walks through it without marketing hype.

Before you put a wrench on a 70,000 lb excavator, get the numbers that match the VIN plate. Access the Factory Manual now. And while you’re at it, check the Liebherr R 924 R 926 R 936 Crawler Excavator Technical Manual if you work on the smaller class machines. The Liebherr R 926 – R 976 Litronic Attachment Information covers quick coupler specs, and the Liebherr R 9350 Technical Manual – Specs for Big Iron is for when you step up to the 170-ton class. Need a refresher on how a Manual Transmission works? That’s a different chapter – but if you’re dealing with the R 936, you’ll be happier with a Manual Transmission book on your shelf than guessing the hydraulic logic. Get the real document.
