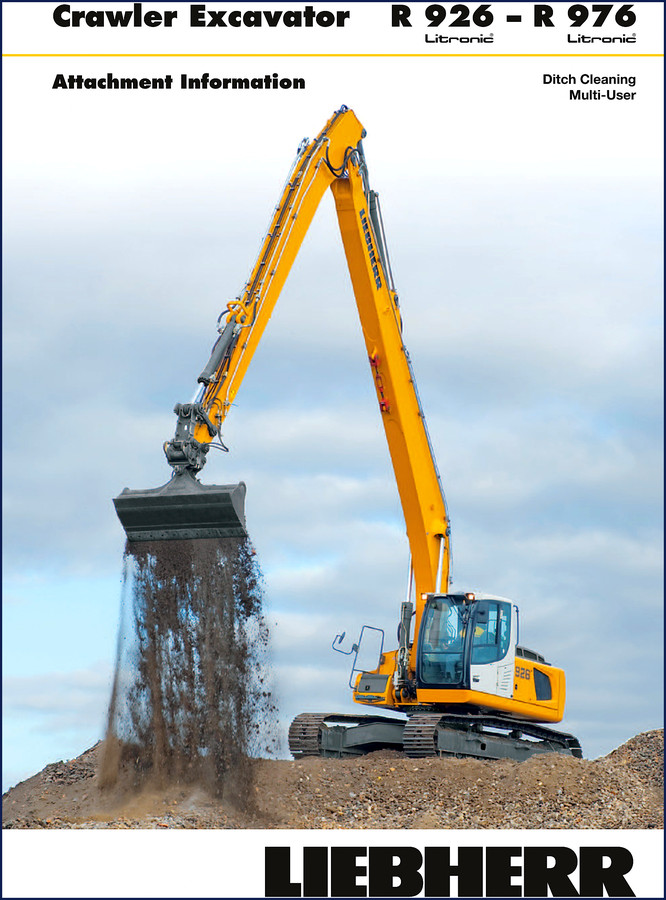

Liebherr R 926, R 936, R 946, R 956, R 976 2013 Technical Manual

I’ve been turning wrenches for 28 years, and I can tell you the difference between a job that goes smooth and one that eats your whole afternoon is having the right numbers in front of you. This Liebherr R 926, R 936, R 946, R 956, R 976 2013 Technical Manual is exactly that. 24 pages of factory attachment data—no aftermarket guesses, no photocopied diagrams that look like they were faxed in 1998. If you’re putting a ditch cleaning boom or a multi-user stick on any of these Litronic excavators, you need this document stuck to your toolbox.

Engine Output – What You’re Working With

Every excavator in this family has a specific engine power rating. The manual lists them clean: R 926 at 129 kW (175 HP), R 936 at 160 kW (218 HP), R 946 at 200 kW (272 HP), R 956 at 240 kW (326 HP), and the big R 976 at 400 kW (544 HP). These numbers aren’t decoration—they’re what you check against when you’re setting up hydraulic flow for an attachment. Put a ditch cleaning bucket on a machine that’s underpowered for the stick length, and you’ll be pulling relief valves all day.

Attachment Options: Ditch Cleaning vs Multi-User

The manual breaks down two main attachment families. Ditch cleaning is designed for sloping and cleaning ditches—the geometry gets you faster, more precise cuts. Multi-user is for long reach excavation, with a universal design that swaps between ditch cleaning and long reach work. You need to know which stick and boom combo matches your job site. This manual gives you the exact lengths and weights so you don’t guess.

Operating Weight and Ground Pressure Data

Page 3 shows operating weight ranges for each model fitted with the multi-user attachment. For the R 926 with a 8.20 m mono boom and 6.00 m stick, you’re looking at 26,650 to 27,750 kg (58,750 – 61,180 lb), depending on undercarriage and pad width. Ground pressure runs from 0.45 to 0.65 kg/cm² (6.4 – 9.2 psi). Those numbers matter when you’re working on soft ground or loading onto a trailer. One wrong pad choice and you’re stuck.

Don’t try to calculate this from a generic excavator chart. The factory spec accounts for the counterweight, bucket, and stick configuration exactly as delivered.

Digging Envelope – Reach, Depth, and Force

Page 5 gives the digging envelope for the R 926 with a 6.00 m stick: max digging depth 10.60 m (34.8 ft), reach at ground level 14.60 m (47.9 ft), dump height 10.90 m (35.8 ft). Digging force ISO is 75.0 kN (16,860 lbf), breakout force 149.0 kN (33,480 lbf). If you’re trenching to a specific depth or need to clear a wall, these are the numbers you set your depth limiter to. I’ve seen guys go two feet deeper than spec because they used a third-party spreadsheet—bent a stick that way.

Why Should You Trust Factory Specs Over Aftermarket Reprints?

Because the factory manual comes from Liebherr’s engineering team, not a guy with a scanner and a caffeine habit. Aftermarket manuals often miss pages, blur torque tables, or—worse—mix up metric and imperial. This 2013 edition is a direct OEM print, 24 pages, no missing data. The attachment information includes dimensions for four different boom/stick combos, pad widths, and undercarriage variants. You can cross-check your machine’s serial number against the spec tables. Also, if you’re working on other models in this family, check the Liebherr R 916 R 926 Crawler Excavator Technical Manual”>Liebherr R 916 R 926 Crawler Excavator Technical Manual or the Liebherr R 924 R 926 R 936 Crawler Excavator Technical Manual”>Liebherr R 924 R 926 R 936 Crawler Excavator Technical Manual for details on those chassis. For the R 946 specifics, see the LIEBHERR R 946 Crawler Excavator Technical Details”>LIEBHERR R 946 Crawler Excavator Technical Details.

And if you need to understand the mechanical side—like how the powertrain works—grab a reference on Manual Transmission”>Manual Transmission principles from a trusted source. The attachment info here doesn’t cover driveline repairs, but the factory manual will tell you which hydraulic lines to move when you swap the boom.

Q1: Does this manual include wiring diagrams for the Litronic system?

No. This is strictly attachment information—boom, stick, bucket, dimensions, and operating weights. For electrical schematics, you need the full service manual.

Q2: What page gives the torque specs for the bucket cylinder mount bolts?

Torque values are not listed in these 24 pages. This manual focuses on attachment selection and geometry. Torque specs for cylinder mounts would be in the main service manual.

Q3: Can I use this manual for the R 926 Litronic model built after 2015?

The 2013 edition covers earlier Litronic models. Production changes after 2015 may have different boom or counterweight configurations. Check your machine’s serial number against the data on page 3 to confirm compatibility. If the numbers match, you’re good. If not, find a later edition.

Q4: Does it cover the multi-user attachment for all five excavators?

Yes. The manual covers R 926, R 936, R 946, R 956, and R 976 with multiple boom/stick options. Page 4 has dimension drawings for the LC and WLC undercarriage. You’ll find operating weight tables for each combination.

One more thing about aftermarket copies I see floating around on forums: they often crop out the dimension graphics or compress the tables so you can’t read the values. This is the real OEM file, directly from Liebherr’s 2013 technical manual. No missing data, no blurry lines. If you’re going to set up an attachment on a 50,000 lb excavator, do it with the numbers that came from the factory. Access the Factory Manual now and keep it on your tablet in the cab.
