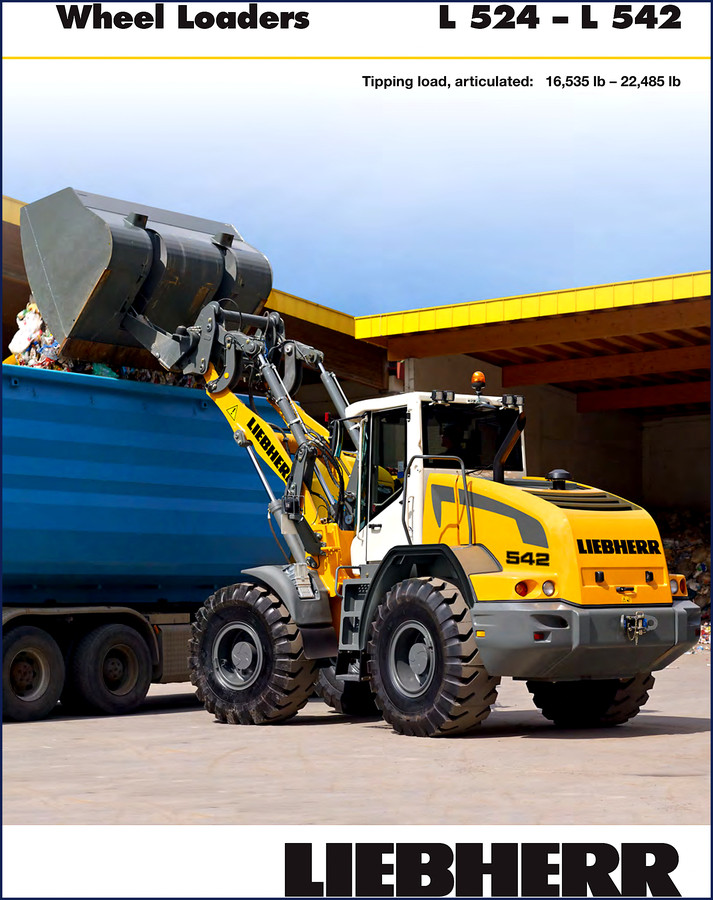

Liebherr L 538, L 542, L 524, L 528 Technical Manual – What You Actually Need on the Bench

I’ve been inside enough wheel loaders to know when a guy is guessing. You pull the transmission, replace the pump, button it up, and then she won’t make pressure. You start chasing ghosts because the aftermarket sheet you got off some forum said the charge pressure was 350 psi. Wrong. That number belongs to a different model year, different hydraulic pump. The Liebherr L 538 and L 542 don’t share every spec with the smaller L 524. That’s where having the factory Technical Manual on your bench means the difference between a job that pays and a job that eats your Saturday.

This isn’t a service manual with exploded views of the starter. It’s a 26-page Technical Manual that gives you the hard numbers: tipping loads, bucket capacities, operating weights, engine output, and the LPE (Liebherr Power Efficiency) system calibration data. You want to know why the L 524 with the 121 HP engine can still lift 16,535 lb articulated? The manual lays out the weight distribution and hydraulic pressures that make it work. Page 1 gives you the tipping load for the L 524 and L 542. Page 2 breaks down each model’s stats: L 528, L 538, L 542, L 524 – bucket sizes from 2.7 yd³ up to 3.7 yd³, operating weights from 22,930 lb to 29,540 lb. That’s the difference between a job spec and a guess.

LPE System: What the Factory Data Tells You

Liebherr Power Efficiency isn’t a marketing sticker. It’s a driveline control that changes the working point of the engine and hydrostatic drive. The manual explains the efficiency curves on pages 4-5. Without LPE, fuel consumption runs up to 25% higher. With LPE, the working point sits in a favorable region of the pressure-rpm map. If you’re troubleshooting fuel economy complaints on a L 542 or building a service interval, you need those baseline numbers. The manual also notes reduced tire and brake wear because tractive force is controlled continuously – no jerky engagement. That’s not info you pull from a third-party reprint.

Tipping Loads and Bucket Capacities – Real Numbers for a Real Job

Every model in this family has a different tipping load articulated: L 524 – 16,535 lb; L 528 – 18,740 lb; L 538 – 20,945 lb; L 542 – 22,485 lb. Bucket capacities range from 2.7 to 3.7 yd³. Engine outputs from 121 HP (90 kW) up to 161 HP (120 kW). If you’re swapping buckets or derating a machine for lighter material, you reference these specs. Aftermarket data often lumps them together or uses generic numbers. This manual separates each model line.

Does This Manual Cover the L 538 and L 528?

Yes. The PDF includes all four models: L 524, L 528, L 538, and L 542. The data for the L 538 shows a tipping load of 20,945 lb with a 3.4 yd³ bucket and an operating weight of 28,220 lb. The L 528 sits in the middle – 18,740 lb tipping load, 3.0 yd³ bucket. These numbers matter when you’re loading heavy material or dealing with a customer who demands exact payload ratings.

Why OEM Documentation Beats Aftermarket Copies

I’ve seen mechanics trust a scanned copy from 2008 with a watermark that says “sample.” Those copies drift in page order, missing the LPE efficiency graph or misreporting the operating weight. This file comes from the original factory spec sheet – not a reprint, not a cut-and-paste from a service manual. The LIEBHERR L 538 Z 433 2011 Technical Manual”>LIEBHERR L 538 Z 433 2011 Technical Manual covers a different machine; don’t mix them up. If you need the later L 542 service procedures, check the Liebherr L 542 2014 Service Manual”>Liebherr L 542 2014 Service Manual. And if you’re working on the big iron, the Liebherr R 9350 Technical Manual – Specs for Big Iron”>Liebherr R 9350 Technical Manual – Specs for Big Iron has its own data.

For general driveline theory, you might reference a Manual Transmission” target=”_blank”>Manual Transmission primer, but keep it separate – this manual is about hydrostatic and LPE drive, not gearboxes. Same concept: factory specs vs. generic knowledge. The external link to Manual Transmission” target=”_blank”>Manual Transmission is a reminder that no manual covers everything; you stack references.

Audience Fit – Who Needs This on the Bench

Shop owners who charge by the hour. Fleet mechanics who maintain mixed Liebherr fleets. Home garage guys who bought a used L 524 and want to know if the loader can handle a 3-yard bucket without tipping. Beginners who need to understand that engine output is not the same as hydraulic capacity. This 26-page document sits flat on the toolbox and answers the questions you’d otherwise call Liebherr support for. It’s not a repair manual – no step-by-step engine rebuild – but the specs it does contain are the ones you’d otherwise have to hunt through parts catalogs for.

Does this manual include wiring diagrams?

No. It’s a technical data sheet, not a service manual. Wiring and hydraulic schematics are in the full workshop manual.

What models are covered?

The manual covers exactly four models: L 524, L 528, L 538, and L 542. Each has its own entry on page 2 with tipping load (articulated), bucket capacity, operating weight, and engine output. The L 524 is the smallest at 16,535 lb tipping load and 2.7 yd³ bucket; the L 542 is the largest at 22,485 lb and 3.7 yd³. The L 538 sits in between with 20,945 lb and 3.4 yd³. If you’re working on any of these, the data is verified from the factory spec sheet – not a third-party compilation.

When you’re bidding a job or ordering a replacement bucket, you don’t want to guess. You want the factory numbers. That’s what this manual gives you: 26 pages of Liebherr-printed specs, no fluff, no aftermarket margin notes. Access the Factory Manual now and keep it in your shop folder.
